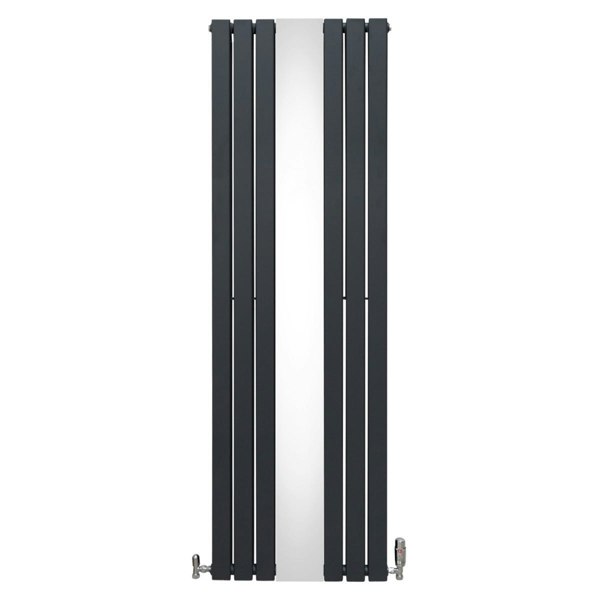

Monstershop Flat Mirror Radiator & Valves - 1800mm x 565mm - Anthracite Grey

Bring a refined, contemporary look to your heating with the Monstershop Flat Mirror Radiator & Valves, a vertical flat panel radiator finished in anthracite grey with a central mirror. Made from 1.5mm carbon steel and coated with a triple layered powder finish, it combines a clean architectural profile with a practical mirrored centre panel.

Measuring 1800mm high and 565mm wide, this 6-column design uses 60mm steel tubes and delivers a BTU rating of 8092 at 60 (6372 at 50). Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, while the included angled thermostatic valve set in polished chrome provides rotary knob control with a 6–28 degrees temperature range and lockshield functionality. CE & UKCA certification, BS EN 442 testing and ISO9001:2015 standards are also stated, alongside a 15-year guarantee for the radiator and a 10-year guarantee for the valves.

Key features

• Vertical flat panel radiator with central mirror
• Anthracite grey finish with triple layered powder coating
• 6-column construction with 60mm individual tube size
• BTU rating @ 60: 8092
• Standard 0.5" BSP bore inlets/outlets
• Compatible with all UK & EU heating systems

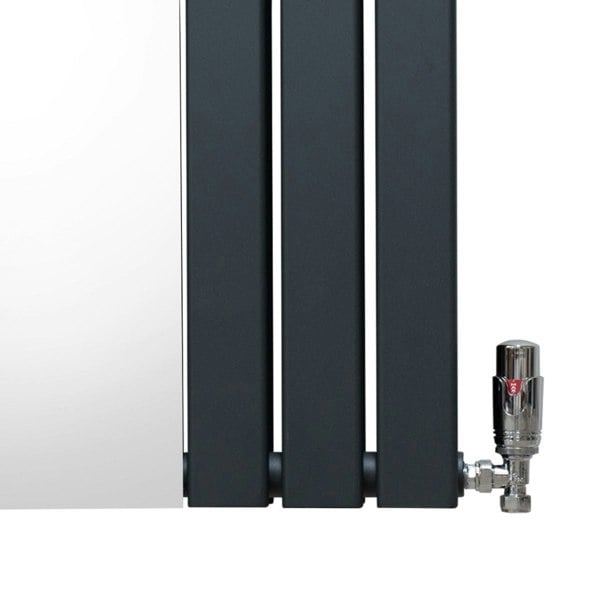

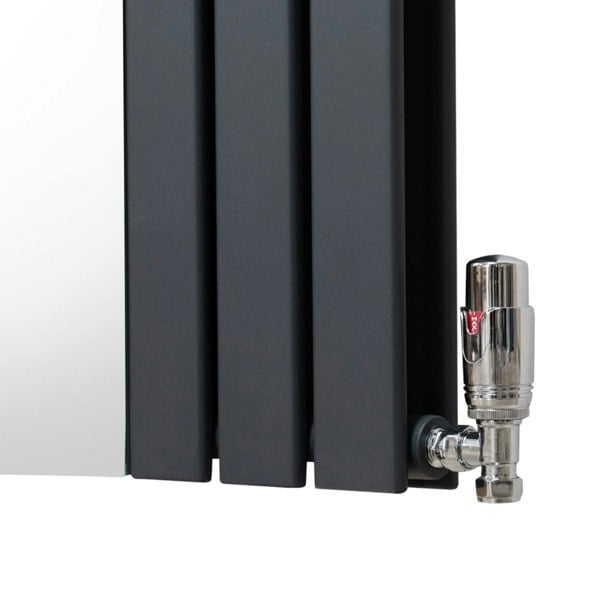

• Includes angled thermostatic valve set in polished chrome
• 15-year guarantee (radiator)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Colour: Anthracite grey
• Weight: 48.4kg
• Height: 1800mm / 180cm / 70.9”
• Width: 565mm / 56.5cm / 22.2”
• Radiator depth: 58mm / 5.8cm / 2.3”
• Depth with bracket: 93mm / 9.3cm / 3.7”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual tube size: 60mm / 6cm / 2.4”
• Number of columns: 6
• BTU rating @ 50: 6372
• BTU rating @ 60: 8092
• Mirror dimensions: 1800mm x 145mm
• Mirror thickness: 5mm
• Inlets/outlets size: Standard 0.5" BSP bore
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat panel mirror radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
