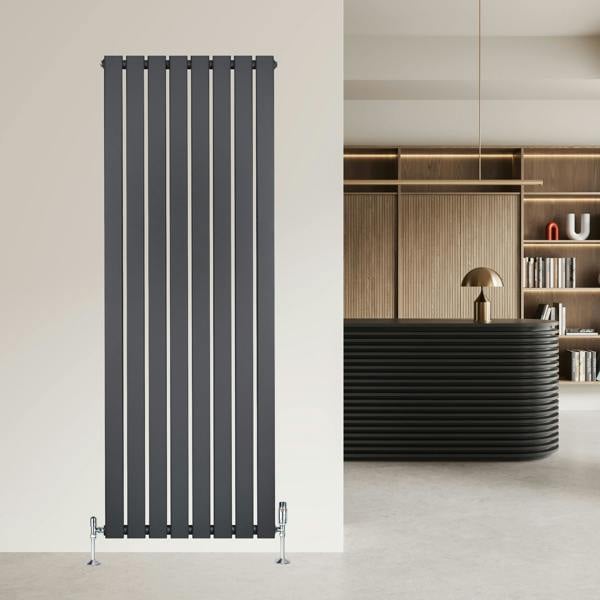

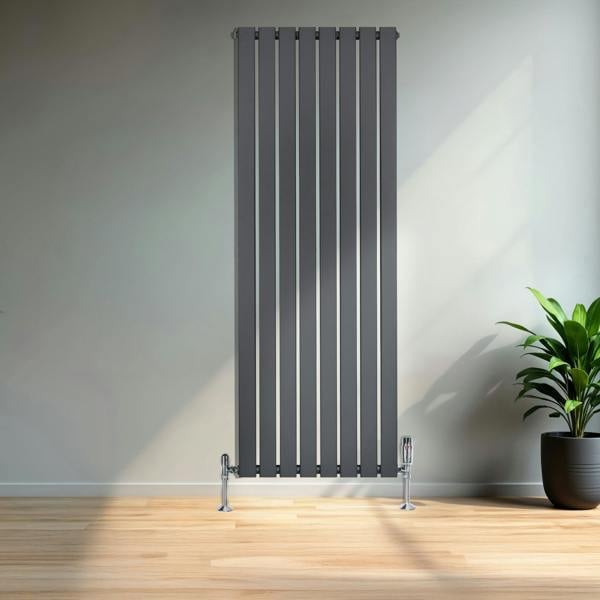

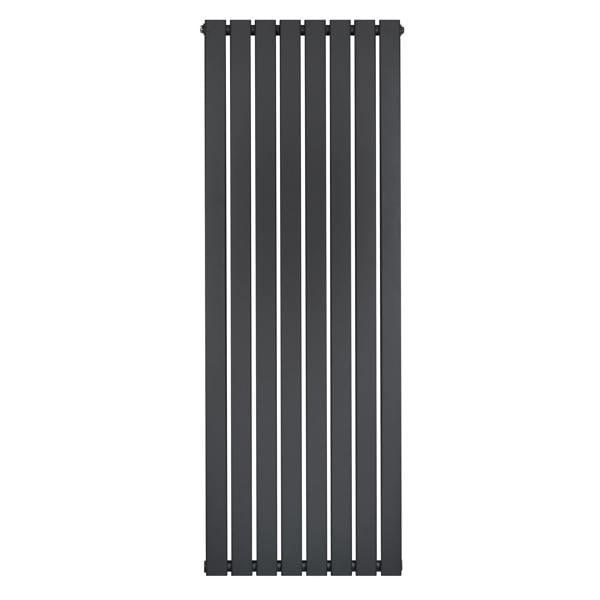

Monstershop Flat Single Column Radiator - 1600 x 560mm - Anthracite Grey

A bold, architectural update for modern interiors, the Monstershop Flat Single Column Radiator brings a tall, slim profile in anthracite grey to spaces that need efficient heating without visual clutter. Measuring 1600 x 560mm, it suits a wide range of room layouts while keeping a clean, flat-fronted look.

Made from 1.5mm carbon steel and finished with a triple layered powder coating, it combines a durable build with a refined, contemporary finish. The 8-column design uses individual flat tubes sized 60mm x 15mm, with a heat output of 4195 BTU at 60 (1229 watts) and 3304 BTU at 50 (968 watts). With standard 0.5" BSP inlets/outlets and compatibility with all UK & EU heating systems, it integrates neatly into existing setups, with fixtures and fittings supplied. CE & UKCA certification, BS EN 442 testing and a 15-year guarantee complete the specification.

Key features

• Flat single column radiator with 8 columns
• 1600 x 560mm size in anthracite grey
• 1.5mm carbon steel construction
• Triple layered powder coating finish
• Heat output: 4195 BTU at 60 / 3304 BTU at 50
• Standard 0.5" BSP inlet/outlet bore
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee

Specifications

• Colour: Anthracite grey
• Weight: 22.5kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 560mm / 56cm / 22”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 3304
• BTU rating @ 60: 4195
• Watt rating @ 50: 968
• Watt rating @ 60: 1229
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
