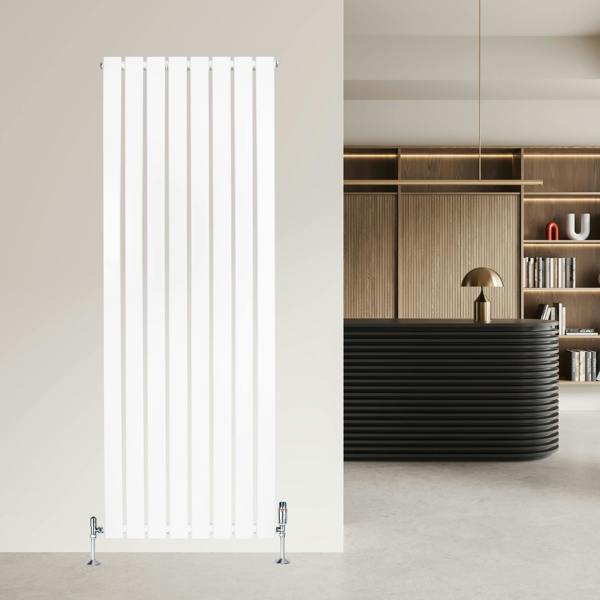

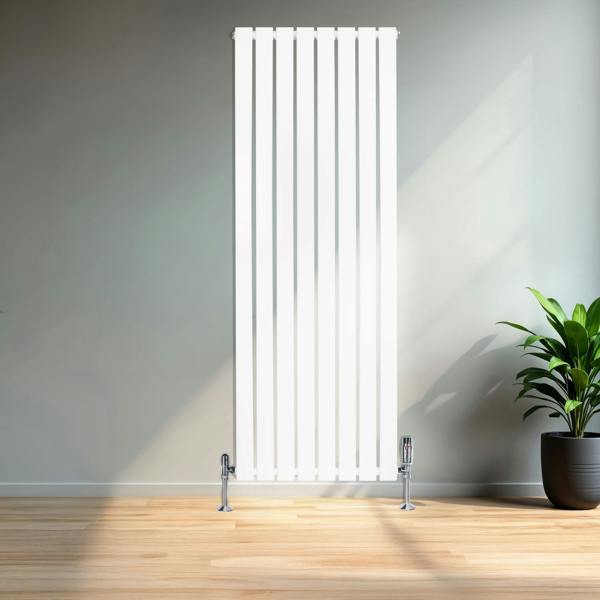

Monstershop Flat Single Column Radiator - 1600 x 560mm - White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator. Finished in white with a triple layered powder coating, it brings a crisp, modern presence to interiors while keeping the profile slim at 46mm deep.

Made from 1.5mm carbon steel, this 1600 x 560mm radiator uses 8 flat tubes (60mm x 15mm) with a 10mm gap between tubes. Heat output is rated at 3304 BTU @ 50 and 4195 BTU @ 60, with watt ratings of 968 @ 50 and 1229 @ 60. It supports a maximum working temperature of 95°C and maximum working pressure of 5 Bar, with a 6.5 Bar test pressure. Standard 0.5" BSP inlets/outlets allow valve choice to suit your setup, and compatibility covers all UK & EU heating systems. CE & UKCA certification and testing to BS EN 442 & ISO9001:2015 standards complete the specification, alongside a 15-year guarantee.

Key features

• Flat single column radiator
• 1600 x 560mm size
• 8-column design with 60mm x 15mm flat tubes
• Triple layered powder-coated white finish
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets and fixing kit
• Includes flexible cleaning brush
• 15-year guarantee
• CE & UKCA certified

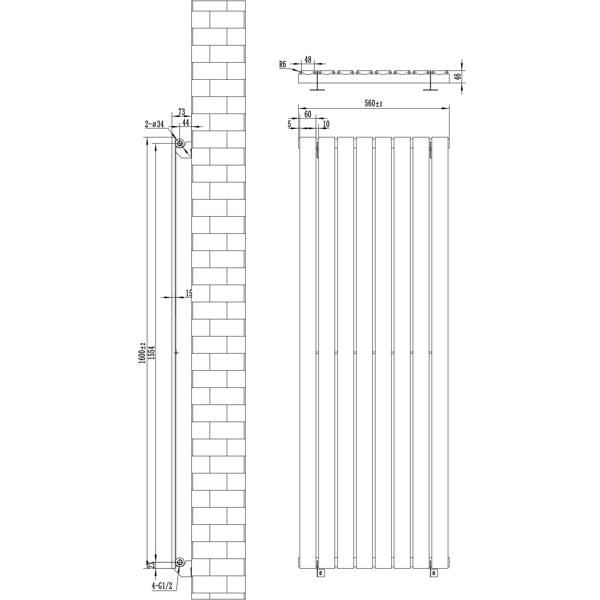

Specifications

• Colour: White
• Weight: 22.5kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 560mm / 56cm / 22”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 8
• BTU rating @ 50: 3304
• BTU rating @ 60: 4195
• Watt rating @ 50: 968
• Watt rating @ 60: 1229
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
