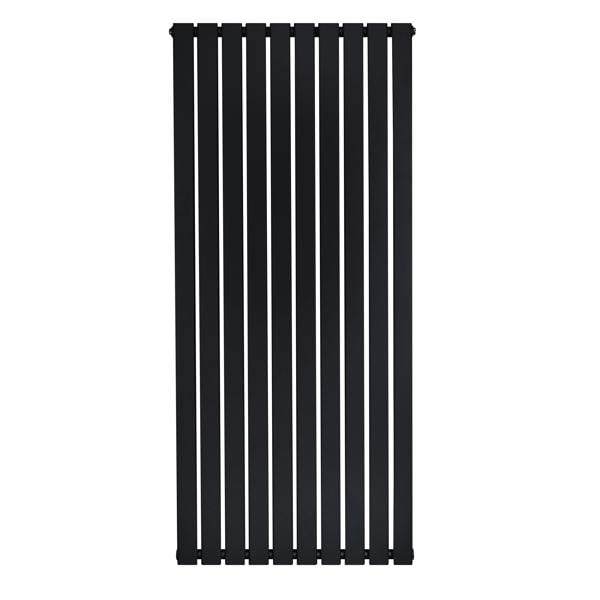

Monstershop Flat Single Column Radiator - 1600 x 700mm - Black

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator brings a clean-lined look in a black finish. This flat, 10-column design is made from 1.5mm carbon steel and sized at 1600mm high by 700mm wide, with a radiator depth of 46mm for a streamlined profile on the wall.

Triple layered powder coating adds a durable surface finish, while the 60mm x 15mm flat tube format and 10mm gap between tubes create a distinctive, modern silhouette. Heat output is rated at 5352 BTU at 60 (1568 watts) and 4215 BTU at 50 (1235 watts), with a recommended application area of 16m². Built for everyday heating systems, it uses standard 0.5" BSP inlets/outlets and is compatible with all UK & EU heating systems. CE & UKCA certification and testing to BS EN 442 & ISO9001:2015 standards complete the specification, alongside a 15-year guarantee.

Key features

• Flat single column radiator with 10 columns
• 1600mm x 700mm size
• Black finish with triple layered powder coating
• 1.5mm carbon steel construction
• Heat output: 5352 BTU at 60 (1568 watts)
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee

Specifications

• Colour: Black
• Weight: 28.1kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 700mm / 70cm / 27.6”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 4215
• BTU rating @ 60: 5352
• Watt rating @ 50: 1235
• Watt rating @ 60: 1568
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 16m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
