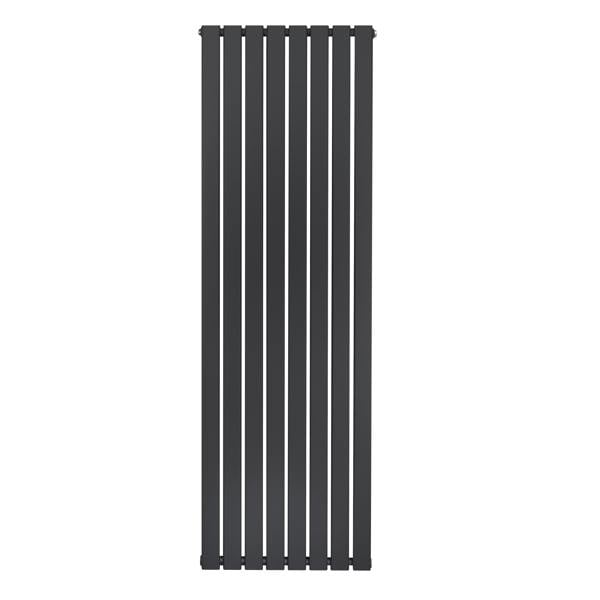

Monstershop Flat Single Column Radiator - 1800 x 560mm - Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator brings a clean-lined look in anthracite grey. Built from 1.5mm carbon steel with a triple layered powder coating, it combines a slim profile with a tall 1800mm x 560mm format that suits a wide range of rooms.

Eight flat tubes (60mm x 15mm) create the single column design, delivering a BTU rating @ 60 of 4820 (1412 watts @ 60) and a BTU rating @ 50 of 3792 (1111 watts @ 50). With a maximum working temperature of 95°C and maximum working pressure of 5 bar, it is tested to BS EN 442 and ISO9001:2015 standards, and supplied with CE and UKCA certification. A 15 year guarantee is included, along with brackets, a fixing kit and a flexible cleaning brush for straightforward upkeep.

Key features

• Flat single column radiator with 8 columns
• Anthracite grey finish with triple layered powder coating
• Heat output: 4820 BTU rating @ 60
• Standard 0.5" BSP bore inlets/outlets
• Compatible with all UK & EU heating systems
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15 year guarantee
• CE and UKCA certified

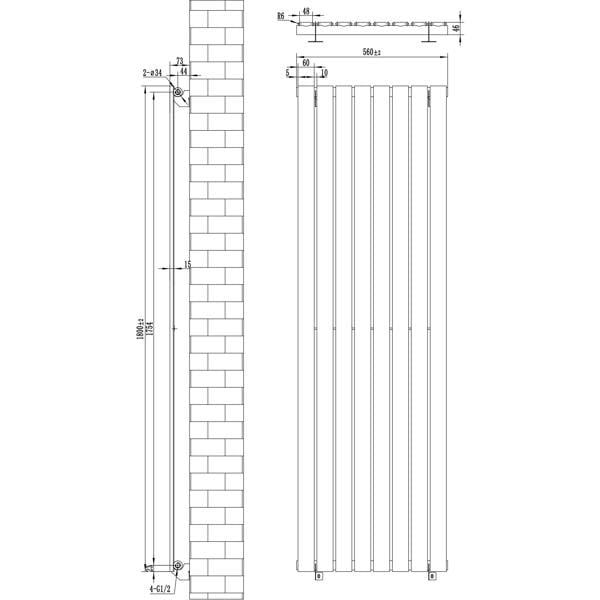

Specifications

• Material: 1.5mm carbon steel
• Weight: 25.6kg
• Height: 1800mm / 180cm / 70.9”
• Width: 560mm / 56cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 3792
• BTU rating @ 60: 4820
• Watt rating @ 50: 1111
• Watt rating @ 60: 1412
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 14m²
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : G1Q7RX8C7Y
