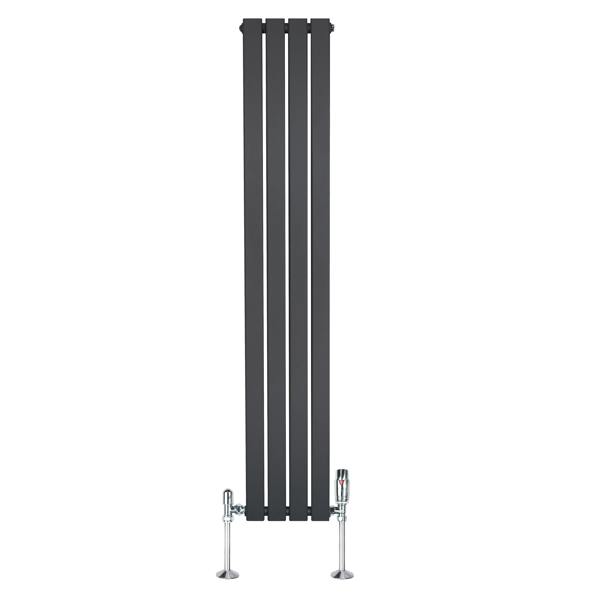

Monstershop Flat Single Column Radiator & Valves – 1600mm x 280mm – Anthracite Grey

A bold anthracite centrepiece for contemporary interiors, the Monstershop Flat Single Column Radiator & Valves set pairs a 1600mm x 280mm radiator with a polished chrome thermostatic valve set. Made from 1.5mm carbon steel and finished with triple layered powder coating, it brings a clean, architectural look while supporting reliable everyday heating.

With 4 columns and individual flat tubes measuring 60mm x 15mm, it delivers a BTU rating @ 60 of 2141 (627 watts) and a BTU rating @ 50 of 1686 (494 watts). Standard 0.5" BSP inlets/outlets support straightforward integration, while the angled thermostatic valves use a rotary knob for temperature adjustment from 6-28 degrees. CE & UKCA certification and testing to BS EN 442 & ISO9001:2015 standards complete the specification, alongside a 15-year guarantee for the radiator and 10 years for the valves.

Key features

• Monstershop flat single column radiator with thermostatic valve set
• Anthracite grey radiator with triple layered powder coating
• 4-column design with 60mm x 15mm flat tubes
• BTU rating @ 60: 2141; watt rating @ 60: 627
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control
• Temperature range: 6-28 degrees
• Includes flexible cleaning brush, brackets and fixing kit

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Height: 1600mm / 160cm / 63”
• Width: 280mm / 28cm / 11”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 4
• Weight: 11.2kg
• BTU rating @ 50: 1686
• BTU rating @ 60: 2141
• Watt rating @ 50: 494
• Watt rating @ 60: 627
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 6m²
• Inlets/Outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished Chrome
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Weight: 0.9kg
• Guarantee length: 10 Years

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
