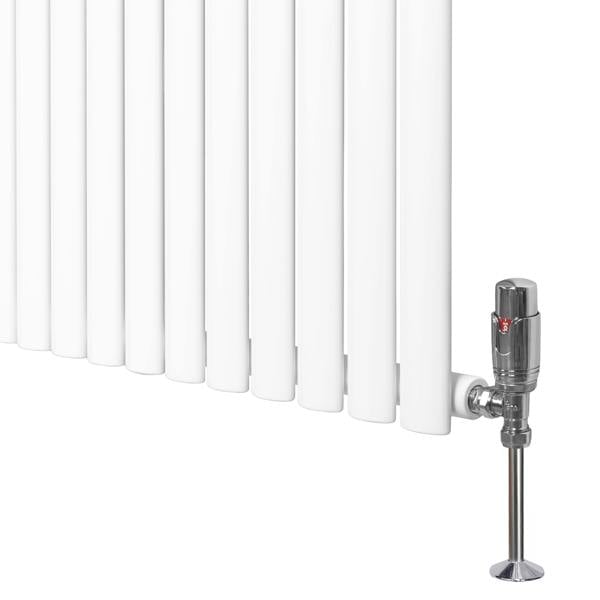

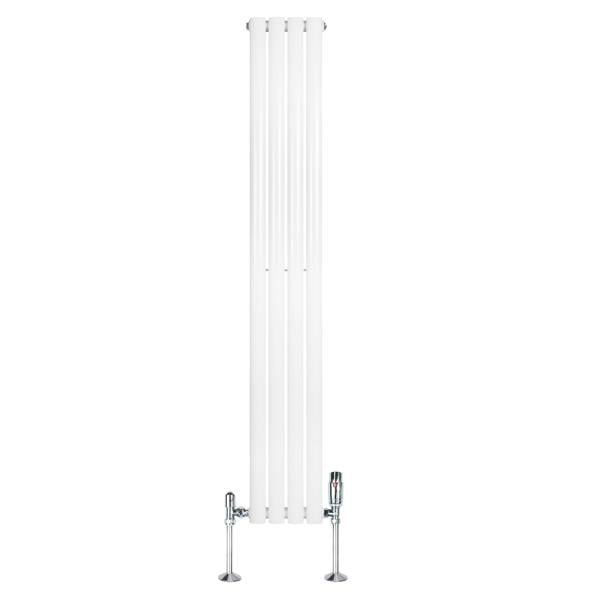

Monstershop Oval Single Column Radiator & Valves – 1600mm x 240mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves. Finished in white with a triple layered powder coating, this 1600mm x 240mm radiator brings a crisp, modern presence to a range of interiors while keeping installation straightforward with supplied brackets, a fixing kit and a chrome thermostatic valve set.

Made from 1.5mm carbon steel, the 4-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 1512 BTU at 50 and 1919 BTU at 60 (443W at 50 and 562W at 60). Standard 0.5" BSP inlets/outlets support compatibility with UK and EU heating systems, while the angled thermostatic valves offer rotary control with a 6–28 degrees temperature range and an integrated lock shield valve.

Key features

• 4-column oval tube radiator in white
• Triple layered powder coating
• Heat output: 1512 BTU at 50 and 1919 BTU at 60
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set in polished chrome with rotary knob control
• Temperature range: 6–28 degrees
• Secure brackets, fixing kit and flexible cleaning brush included
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Dimensions: 1600mm (H) x 240mm (W)
• Radiator depth: 56mm
• Depth with bracket: 83mm
• Weight: 9.6kg
• Number of columns: 4
• Individual oval tube size: 50mm x 25mm
• Gap between tubes: 10mm
• BTU rating at 50: 1512
• BTU rating at 60: 1919
• Watt rating at 50: 443
• Watt rating at 60: 562
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 6m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm
• Valve-to-valve height: 1554mm
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
