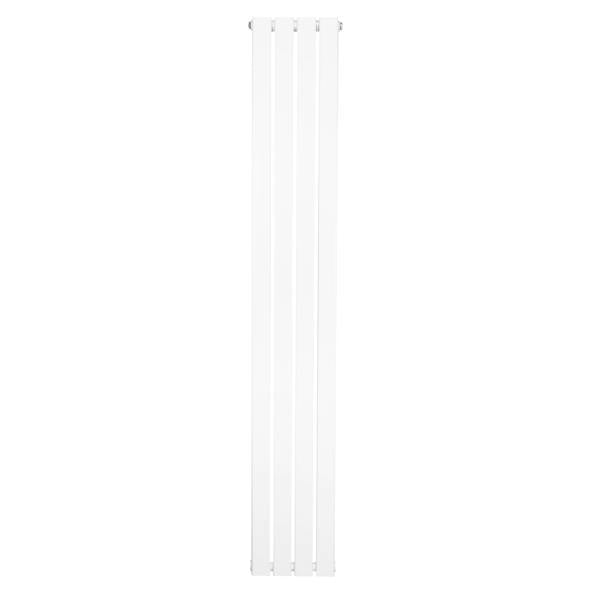

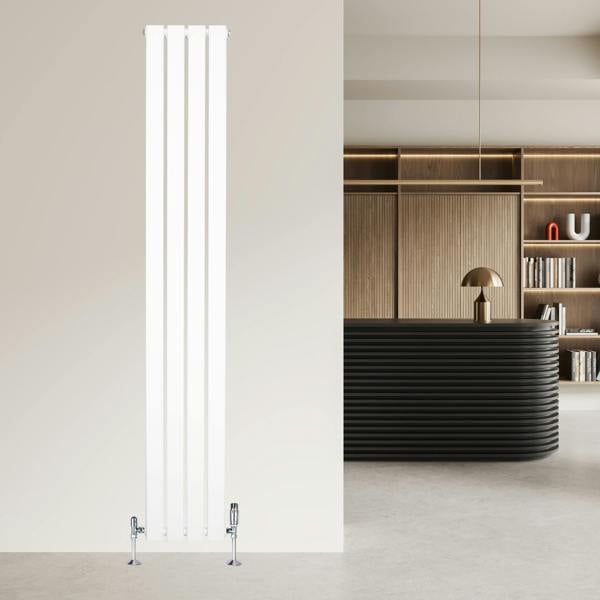

Monstershop Flat Single Column Radiator - 1800 x 280mm - White

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator. Finished in white with a triple layered powder coating, it offers a crisp, modern profile that suits a wide range of interiors while keeping the overall design understated.

Made from 1.5mm carbon steel, this 1800 x 280mm radiator uses flat steel tubes sized 60mm x 15mm, with a 10mm gap between tubes. Heat output is rated at 2413 BTU at 60 (707 watts) and 1898 BTU at 50 (556 watts), with a recommended application area of 7m². It supports a maximum working temperature of 95°C and a maximum working pressure of 5 bar, with a 6.5 bar test pressure. Standard 0.5" BSP inlets/outlets allow valve choice to suit your installation.

Key features

• Flat single column radiator
• 1800mm height and 280mm width
• White finish with triple layered powder coating
• Heat output: 2413 BTU at 60 (707 watts)
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• 15-year guarantee
• CE and UKCA certified

Specifications

• Colour: White
• Weight: 12.8kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 70.9”
• Width: 280mm / 28cm / 11”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 4
• BTU rating @ 50: 1898
• BTU rating @ 60: 2413
• Watt rating @ 50: 556
• Watt rating @ 60: 707
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 7m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
