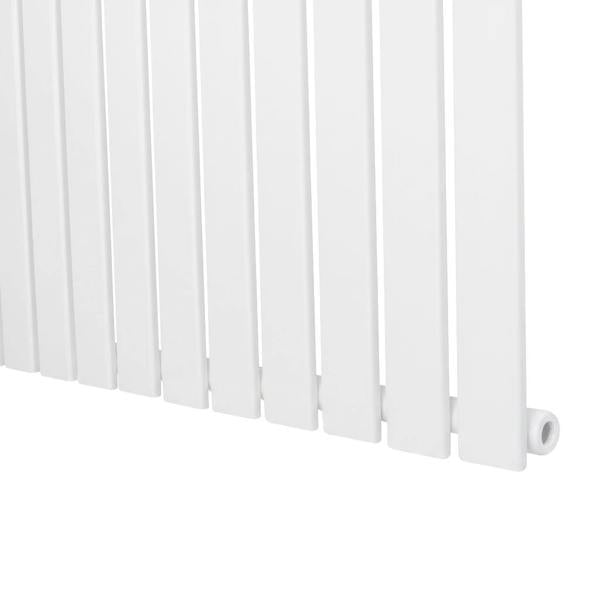

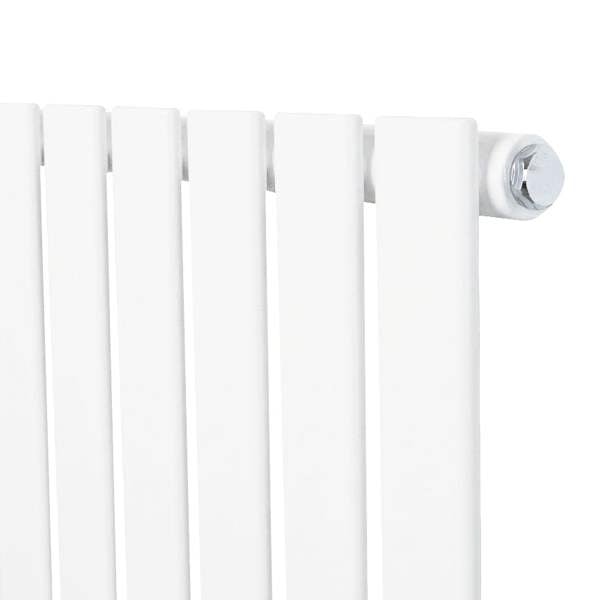

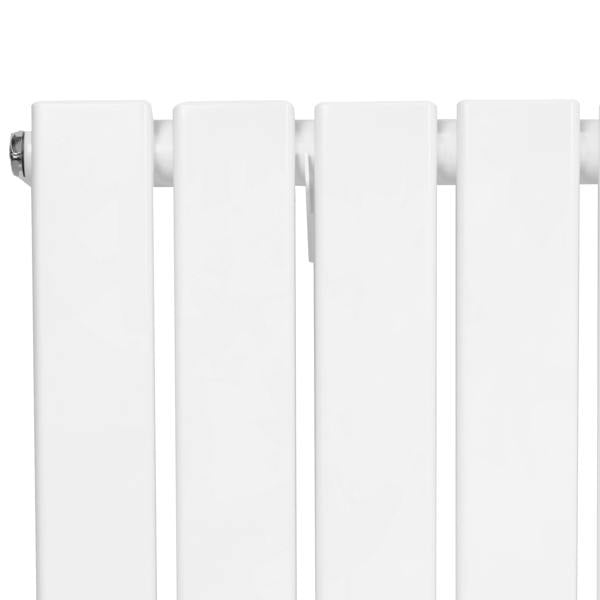

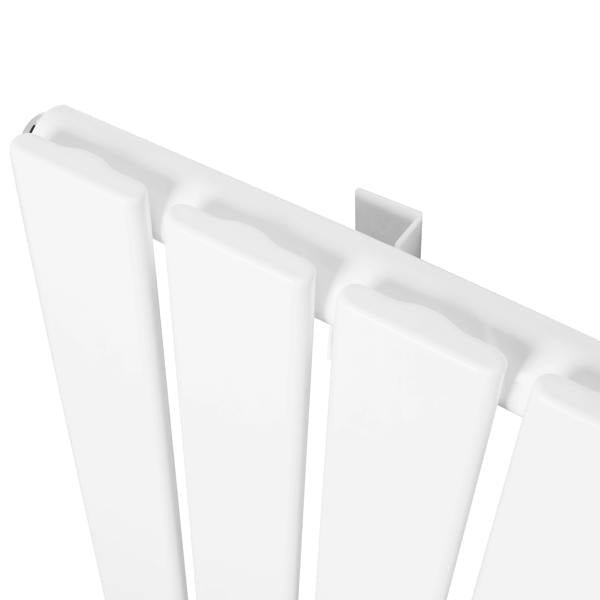

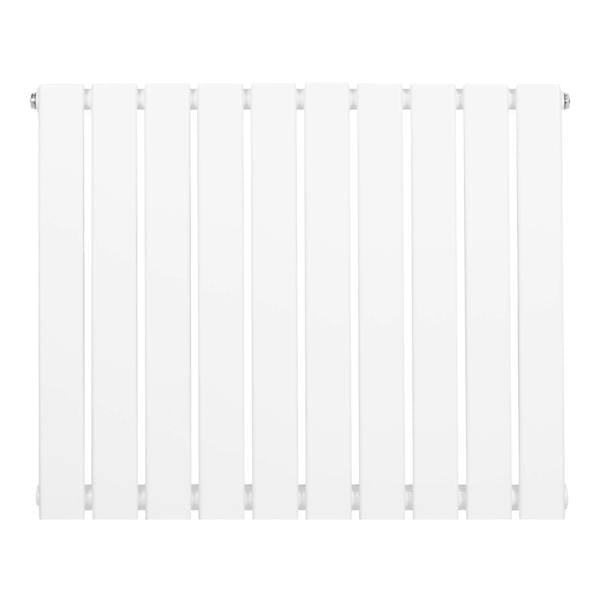

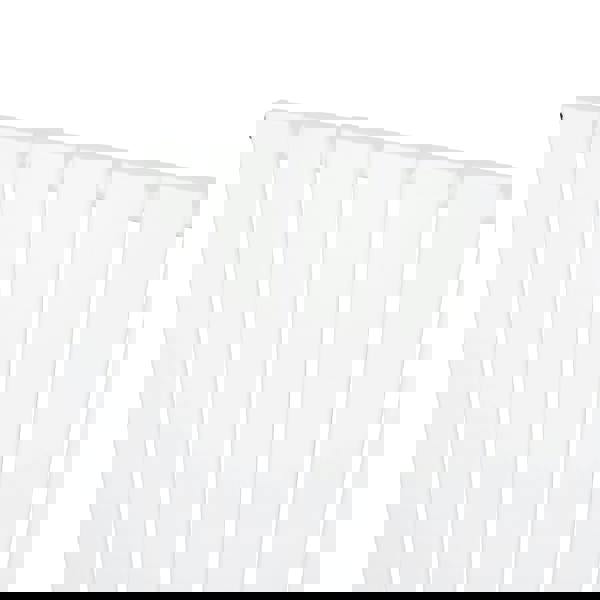

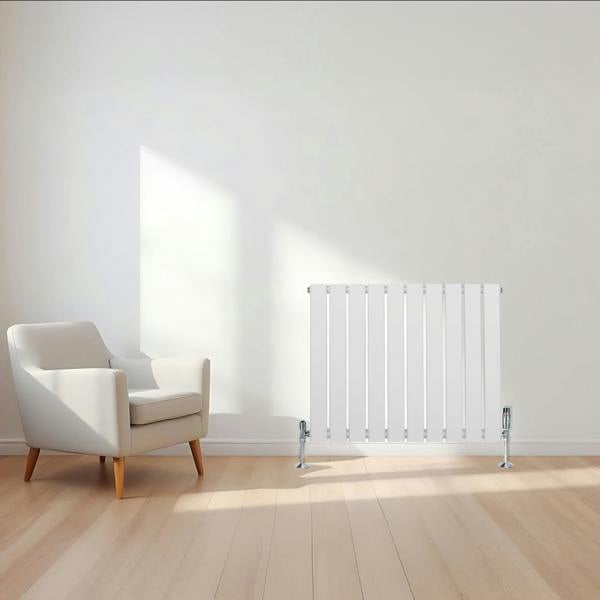

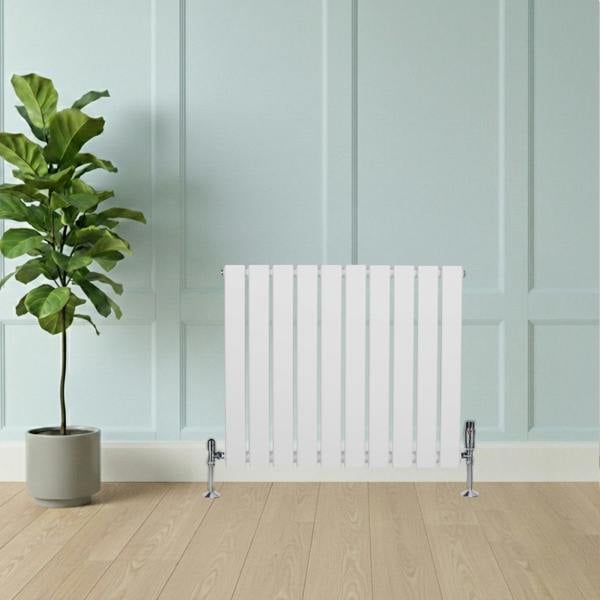

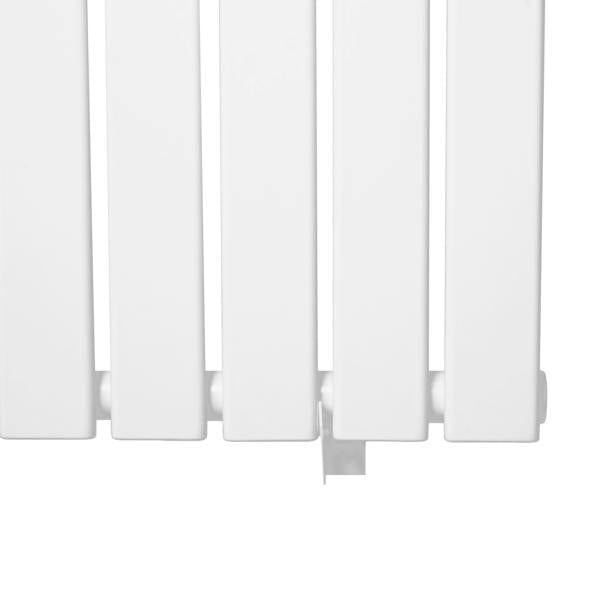

Monstershop Flat Single Column Radiator - 600 x 700mm - White

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator, a 600 x 700mm model finished in white. Built from 1.5mm carbon steel and completed with a triple layered powder coating, it combines a crisp, modern profile with a robust, hard-wearing surface suited to everyday home environments.

With 10 columns and individual flat tubes measuring 60mm x 15mm, it delivers a BTU rating of 2168 at 60 (1717 at 50), with watt ratings of 635 at 60 and 503 at 50. Standard 0.5" BSP inlets/outlets support straightforward valve selection, while the supplied brackets and fixing kit help keep installation neat. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification, alongside a 15-year guarantee.

Key features

• Flat single column radiator
• 600 x 700mm size
• 10-column design with 60mm x 15mm flat tubes
• White finish with triple layered powder coating
• 1.5mm carbon steel construction
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee
• CE and UKCA certified

Specifications

• Colour: White
• Weight: 11.5kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 700mm / 70cm / 27.6”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 10
• BTU rating @ 50: 1717
• BTU rating @ 60: 2168
• Watt rating @ 50: 503
• Watt rating @ 60: 635
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 6m²
• Inlets/Outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : PQH4UP73YE
