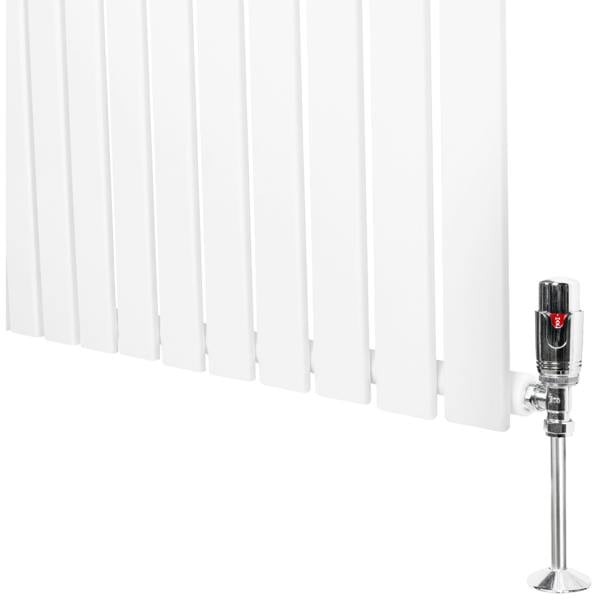

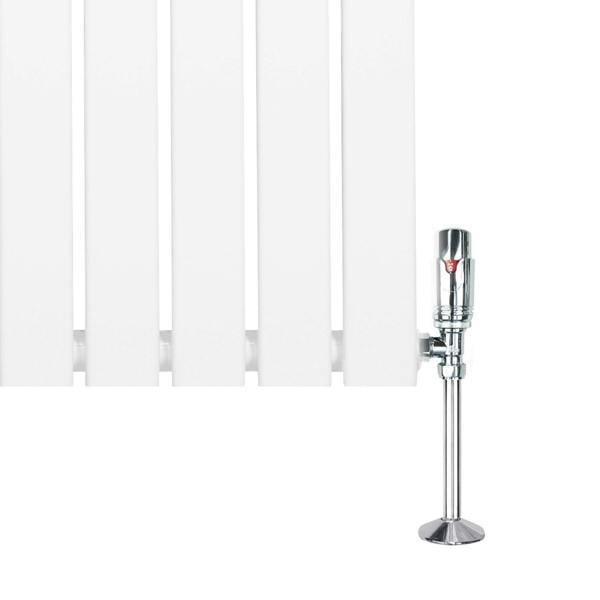

Monstershop Flat Single Column Radiator & Valves – 1600mm x 280mm – White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator & Valves. Finished in white with a triple layered powder coating, this 1600mm x 280mm radiator brings a crisp, modern presence to interiors while keeping installation straightforward with included brackets, a fixing kit and a thermostatic valve set.

Made from 1.5mm carbon steel, the 4-column design uses individual flat tubes sized 60mm x 15mm, with a 10mm gap between tubes. Heat output is rated at 1686 BTU @ 50 and 2141 BTU @ 60 (494W @ 50 and 627W @ 60), with a recommended application area of 6m². Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, and a flexible cleaning brush is supplied for easy upkeep. CE and UKCA certification, plus testing to BS EN 442 & ISO9001:2015 standards, complete the specification.

Key features

• White flat single column radiator with 4 columns
• 1600mm x 280mm size
• Triple layered powder coating finish
• Heat output: 2141 BTU @ 60 (627W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set with rotary knob control
• Temperature range: 6–28 degrees
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 11.2kg
• Height: 1600mm / 160cm / 63”
• Width: 280mm / 28cm / 11”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 1686
• BTU rating @ 60: 2141
• Watt rating @ 50: 494
• Watt rating @ 60: 627
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 6m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
