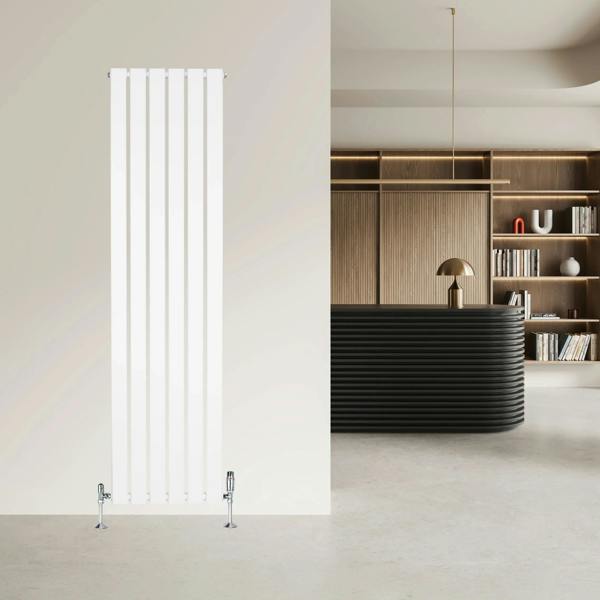

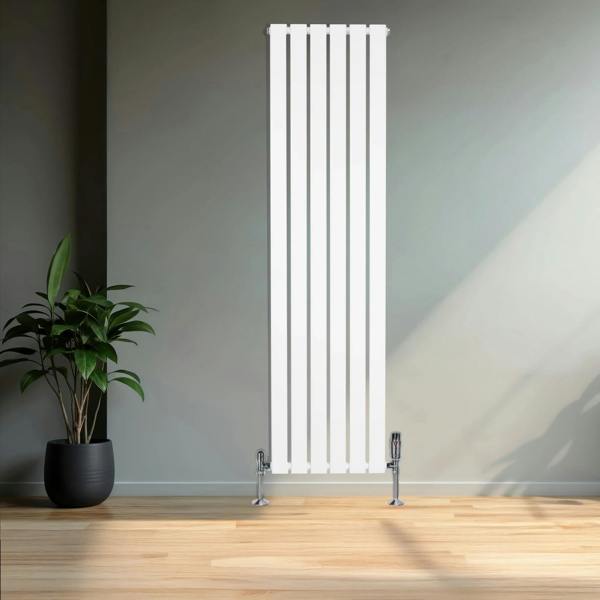

Monstershop Flat Single Column Radiator & Valves – 1600mm x 420mm – White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator & Valves. Finished in white and sized at 1600mm x 420mm, this flat, 6-column radiator suits a wide range of interiors, while the included chrome thermostatic valve set completes the installation with a coordinated, polished finish.

Made from 1.5mm carbon steel and coated with a triple layered powder finish, it combines a slim profile with robust construction. Heat output is rated at 2529 BTU @ 50 and 3211 BTU @ 60 (741W @ 50 and 941W @ 60), with a recommended application area of 9m². Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, and fixtures, fittings and a flexible cleaning brush are included for straightforward upkeep.

Key features

• Flat single column radiator with 6 columns
• Size: 1600mm x 420mm
• Heat output: 3211 BTU @ 60 (941W @ 60)
• Triple layered powder coating
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set in polished chrome
• 15-year guarantee (radiator) and 10-year guarantee (valves)
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Weight: 16.9kg
• Finish: Triple layered powder coating

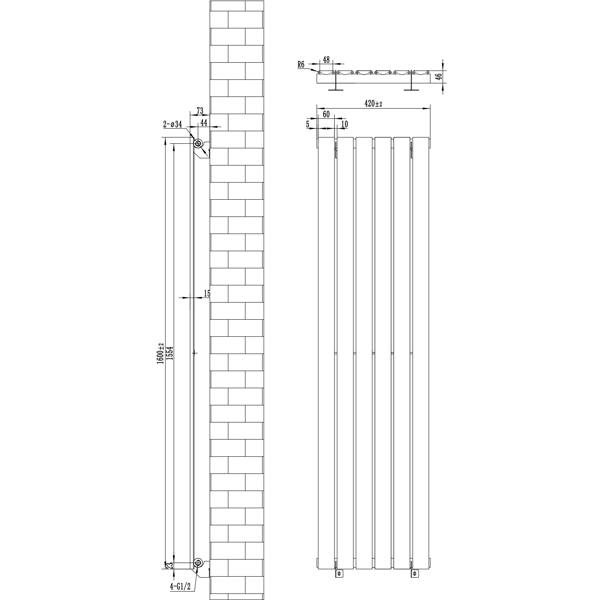

• Height: 1600mm / 160cm / 63”
• Width: 420mm / 42cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 6
• BTU rating @ 50: 2529
• BTU rating @ 60: 3211
• Watt rating @ 50: 741
• Watt rating @ 60: 941
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 9m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
