Monstershop Flat Single Column Radiator & Valves – 1800mm x 280mm – Anthracite Grey

A bold, architectural update for modern interiors, the Monstershop Flat Single Column Radiator & Valves set pairs an anthracite grey radiator with a polished chrome thermostatic valve set. Measuring 1800mm x 280mm, it brings a tall, slim profile that suits a wide range of spaces while keeping the look clean and contemporary.

Made from 1.5mm carbon steel and finished with triple layered powder coating, the radiator is built for long-term use and everyday durability. Heat output is rated at 2413 BTU @ 60 (707 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 5 bar. The angled thermostatic valves use a rotary knob for temperature adjustment from 6 to 28 degrees, with a maximum bar pressure of 12 and maximum flow temperature of 100 degrees. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification.

Key features

• Flat single column radiator in anthracite grey
• Size: 1800mm x 280mm
• Heat output: 2413 BTU @ 60
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets

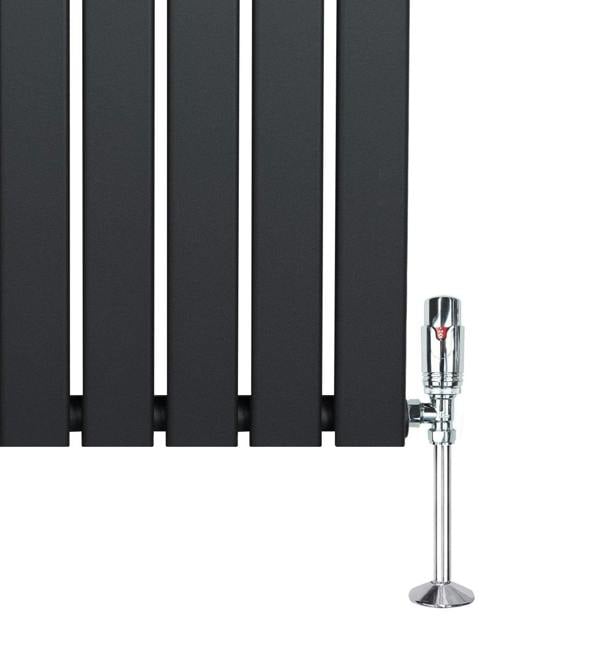

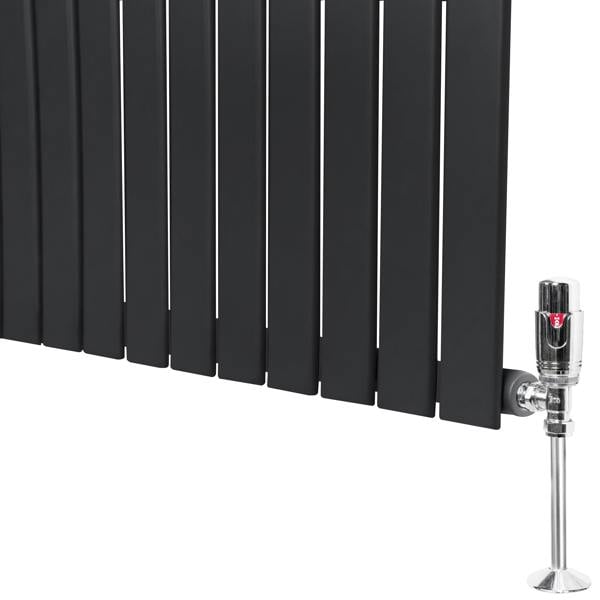

• Angled thermostatic valve set with polished chrome finish
• Rotary knob control with 6-28 degrees temperature range
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 12.8kg
• Height: 1800mm / 180cm / 70.9”
• Width: 280mm / 28cm / 11”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 4
• BTU rating @ 50: 1898
• BTU rating @ 60: 2413
• Watt rating @ 50: 556
• Watt rating @ 60: 707
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 7m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
