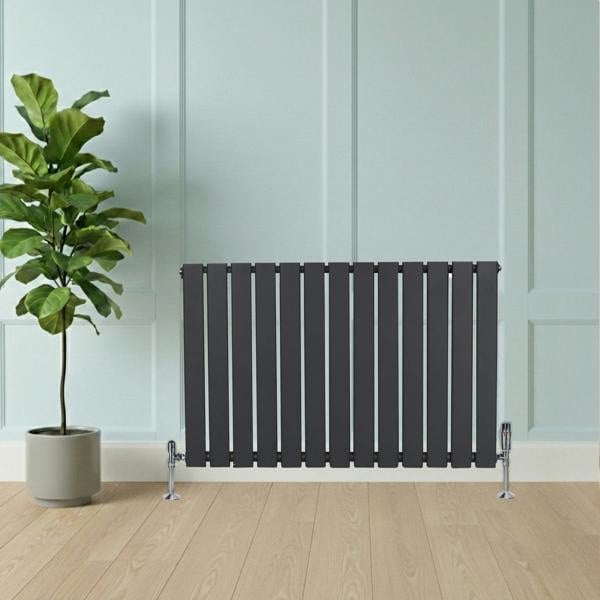

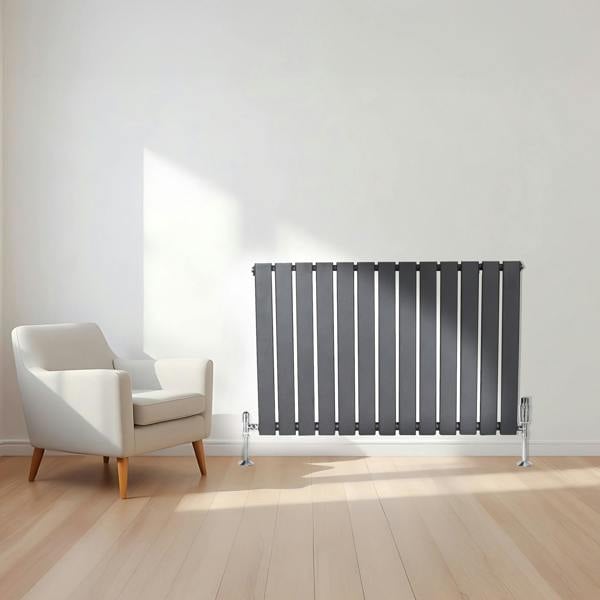

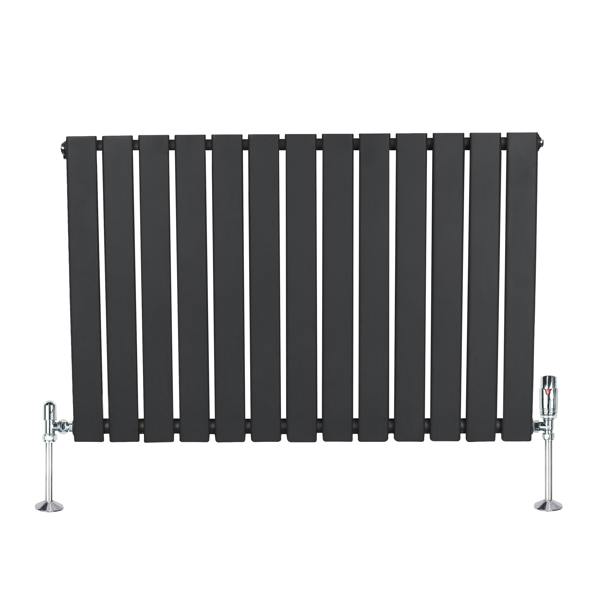

Monstershop Flat Single Column Radiator & Valves – 600mm x 910mm – Anthracite Grey

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator & Valves set. Finished in anthracite grey and supplied with a polished chrome thermostatic valve set, it pairs a slim, flat profile with practical control for a wide range of interiors.

Made from 1.5mm carbon steel with a triple layered powder coating, this 600mm x 910mm radiator uses 13 columns with individual flat tubes sized 60mm x 15mm. Heat output is rated at 2232 BTU @ 50 and 2819 BTU @ 60 (654 watts @ 50 and 826 watts @ 60). Standard 0.5" BSP inlets/outlets support straightforward integration, with compatibility across UK & EU heating systems. The angled thermostatic valves use a rotary knob with a 6-28 degrees temperature range, alongside an integrated lock shield valve for water flow regulation.

Key features

• Flat single column radiator with 13 columns
• Anthracite grey finish with triple layered powder coating
• 1.5mm carbon steel construction
• Includes angled thermostatic valve set in polished chrome
• Temperature control range: 6-28 degrees
• Standard 0.5" BSP bore inlets/outlets
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• Radiator guarantee: 15 years
• Valve guarantee: 10 years

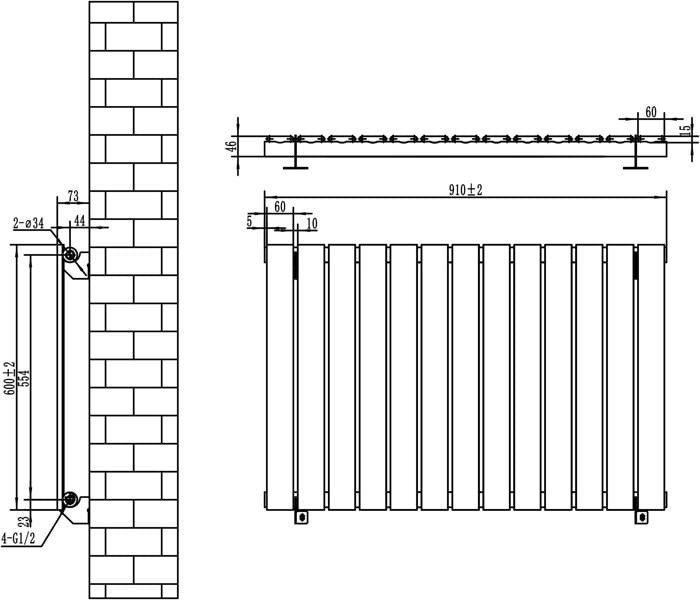

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 14.9kg
• Height: 600mm / 60cm / 23.6”
• Width: 910mm / 91cm / 35.8”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 2232
• BTU rating @ 60: 2819
• Watt rating @ 50: 654
• Watt rating @ 60: 826
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 8m²
• Inlets/Outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU Heating Systems

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
