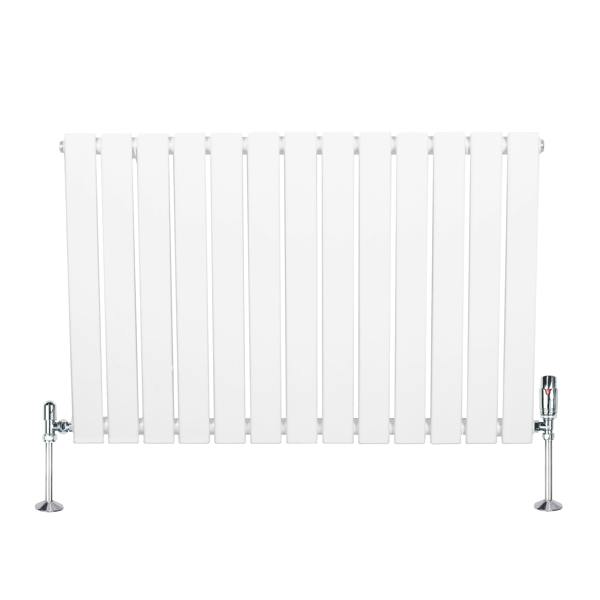

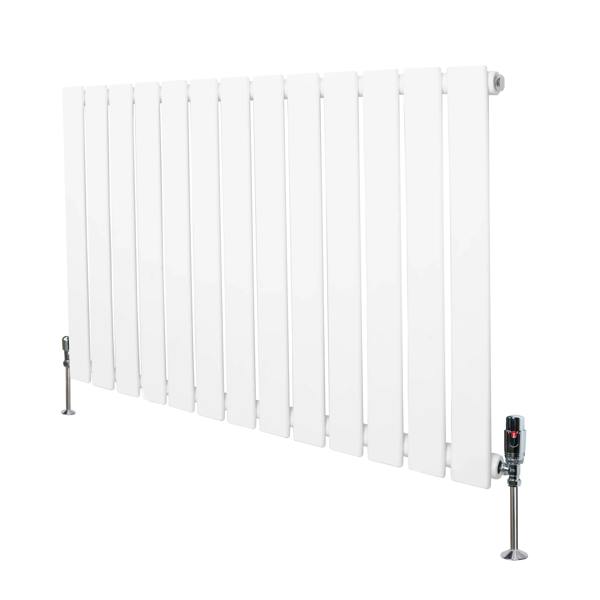

Monstershop Flat Single Column Radiator & Valves – 600mm x 910mm – White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator & Valves. Finished in white with a triple layered powder coating, this 600mm x 910mm radiator brings a crisp, modern presence to a range of interiors while keeping the profile slim at 46mm deep.

Built from 1.5mm carbon steel, the 13-column design uses individual flat tubes sized 60mm x 15mm, with a 10mm gap between tubes. Heat output is rated at 2232 BTU @ 50 and 2819 BTU @ 60 (654 watts @ 50 and 826 watts @ 60), with a recommended application area of 8m². Standard 0.5" BSP inlets/outlets support straightforward integration, and the set includes polished chrome angled thermostatic valves with rotary control and a 6–28 degrees temperature range.

Key features

• Flat single column radiator with 13 columns
• 600mm x 910mm size in a white finish
• 1.5mm carbon steel construction
• Triple layered powder coating
• Includes angled thermostatic valve set in polished chrome
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 14.9kg
• Height: 600mm / 60cm / 23.6”
• Width: 910mm / 91cm / 35.8”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 2232
• BTU rating @ 60: 2819
• Watt rating @ 50: 654
• Watt rating @ 60: 826
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 8m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Rackhams Reference : 6Z1KNX5RK3
