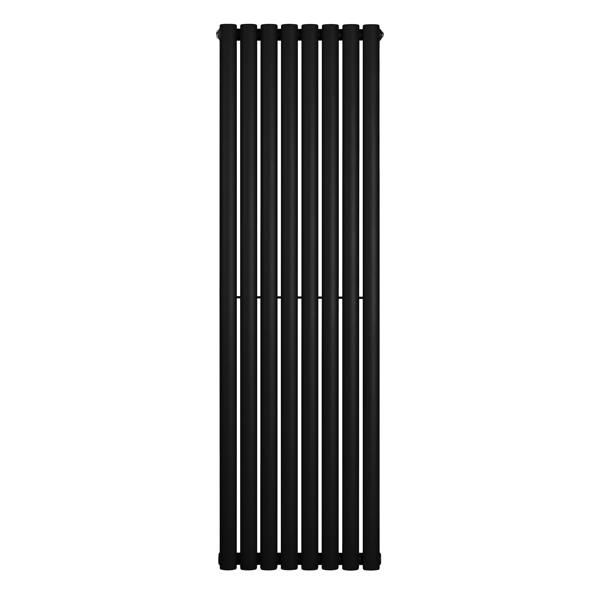

Monstershop Oval Single Column Radiator - 1600 x 480mm - Black

Bring a clean, architectural look to your heating with the Monstershop Oval Single Column Radiator, finished in black. Built from 1.5mm carbon steel and coated with a triple layered powder finish, it balances a bold, modern presence with a hard-wearing surface suited to everyday living.

Measuring 1600mm high and 480mm wide, this 8-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 3838 BTU at 60 (1125 watts) and 3024 BTU at 50 (886 watts). With standard 0.5" BSP inlets/outlets and compatibility with all UK & EU heating systems, it integrates neatly into a wide range of installations. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification.

Key features

• Oval single column radiator with 8 columns
• Black finish with triple layered powder coating
• 1.5mm carbon steel construction
• Heat output: 3838 BTU at 60 / 1125 watts at 60
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee
• CE and UKCA certified

Specifications

• Colour: Black
• Weight: 19.2kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 8
• BTU rating at 50: 3024
• BTU rating at 60: 3838
• Watt rating at 50: 886
• Watt rating at 60: 1125
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
