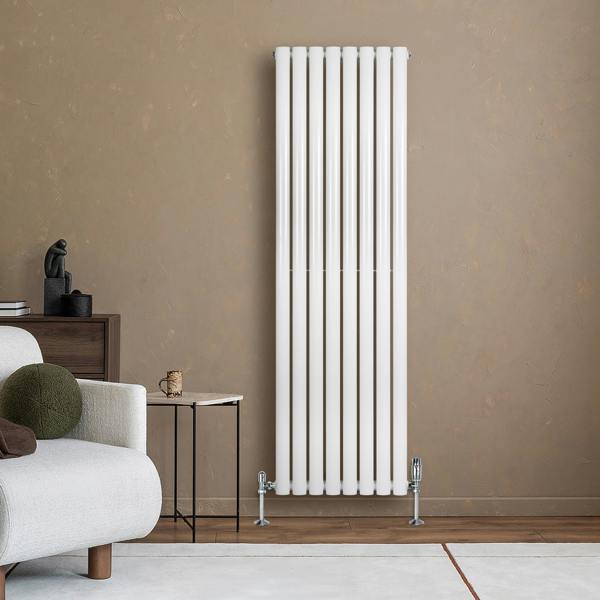

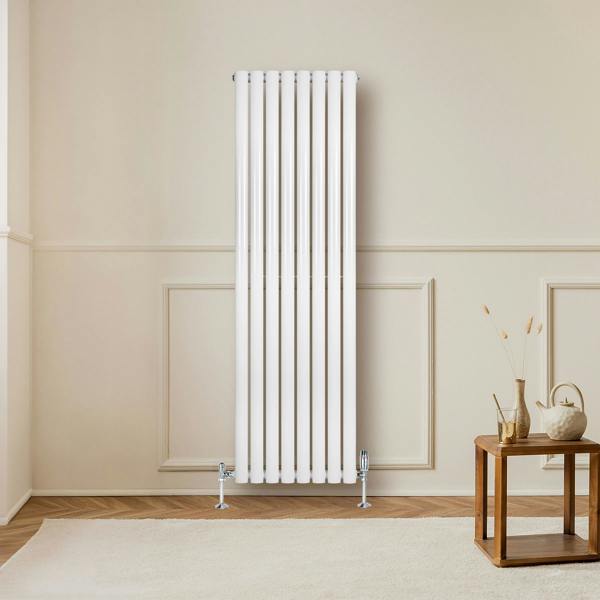

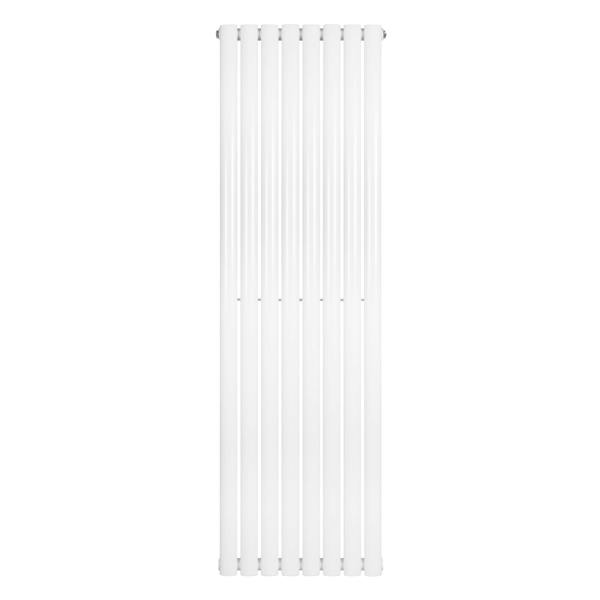

Monstershop Oval Single Column Radiator - 1600 x 480mm - White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator. Finished in white with a triple layered powder coating, it brings a crisp, modern presence to interiors while keeping the overall profile streamlined at 56mm deep.

Made from 1.5mm carbon steel, this 1600 x 480mm radiator uses 8 columns of oval steel tubes (50mm x 25mm) with a 10mm gap between tubes. Heat output is rated at 3024 BTU at 50 and 3838 BTU at 60, with watt ratings of 886 at 50 and 1125 at 60. It supports a maximum working temperature of 95°C and a maximum working pressure of 10 bar, with a test pressure of 13 bar. Standard 0.5" BSP inlets/outlets make valve choice straightforward, and fixtures, fittings and a flexible cleaning brush are included.

Key features

• Monstershop oval single column radiator
• 1600mm height and 480mm width
• 8-column design with 50mm x 25mm oval tubes
• White finish with triple layered powder coating
• Standard 0.5" BSP inlet/outlet size
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

• Colour: White
• Weight: 19.2kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 8
• BTU rating @ 50: 3024
• BTU rating @ 60: 3838
• Watt rating @ 50: 886
• Watt rating @ 60: 1125
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• CE certificate: CE & UKCA

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
