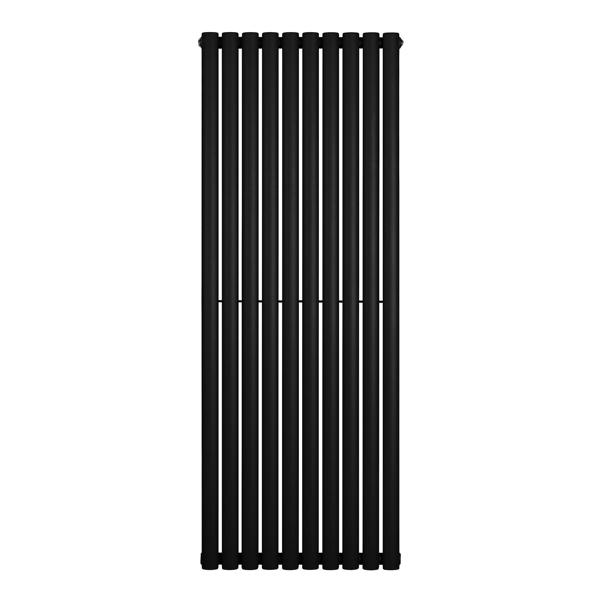

Monstershop Oval Single Column Radiator - 1600 x 600mm - Black

Bring a bold, architectural look to your heating with the MonsterShop Oval Single Column Radiator in black. Sized at 1600 x 600mm, it combines a tall, space-conscious profile with a clean oval-tube design that suits contemporary interiors as well as more classic schemes.

Made from 1.5mm carbon steel and finished in a triple layered powder coating, it’s built for long-term use while keeping its sleek appearance. Ten columns of 50mm x 25mm oval tubes deliver a heat output of 4800 BTU at 60 (1406 watts), with a maximum working temperature of 95°C and maximum working pressure of 10 bar. Standard 0.5" BSP inlets/outlets support straightforward valve selection, and the included brackets, fixing kit and flexible cleaning brush help with fitting and upkeep. Testing meets BS EN 442 and ISO9001:2015 standards, with CE and UKCA certification and a 15-year guarantee.

Key features

• Single column oval-tube radiator
• 1600 x 600mm size
• 10-column design with 50mm x 25mm oval tubes
• Triple layered powder coating finish
• Standard 0.5" BSP inlet/outlet connections
• Includes 4 brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified
• 15-year guarantee

Specifications

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 24.5kg
• Height: 1600mm / 160cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Number of columns: 10
• Individual oval tube size: 50mm x 25mm
• BTU rating @ 50: 3782
• BTU rating @ 60: 4800
• Watt rating @ 50: 1108
• Watt rating @ 60: 1406
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 14m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
