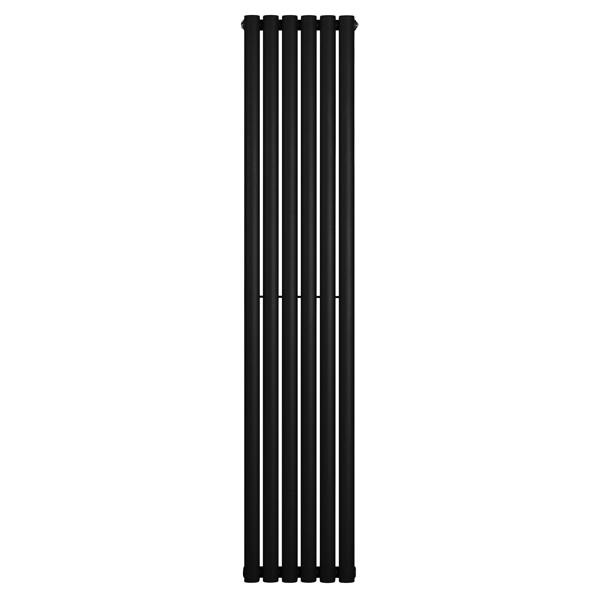

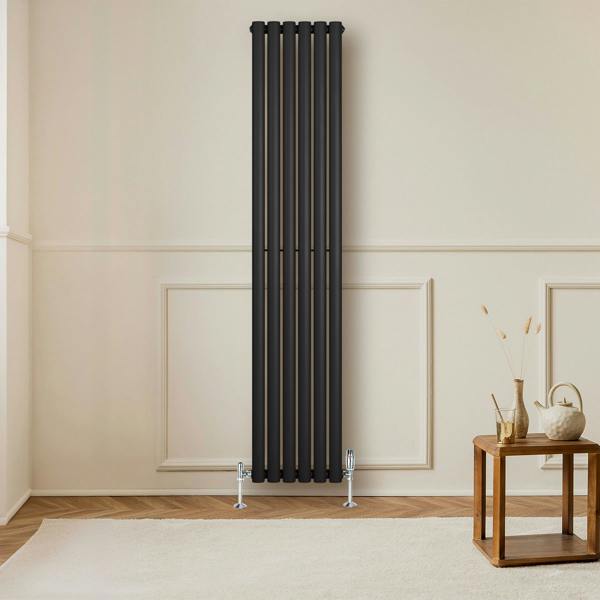

Monstershop Oval Single Column Radiator - 1800 x 360mm - Black

A bold vertical statement for contemporary interiors, the Monstershop Oval Single Column Radiator brings a sleek black finish and a tall, space-conscious profile to your heating setup. Measuring 1800mm high by 360mm wide, it suits a variety of placements while keeping a clean, architectural look on the wall.

Made from 1.5mm carbon steel with triple layered powder coating, it combines a durable build with a refined surface. Six columns of oval steel tubes (50mm x 25mm) deliver a heat output of 3245 BTU at 60 (951 watts) or 2553 BTU at 50 (748 watts). With a maximum working temperature of 95°C and maximum working pressure of 10 bar, it is tested to BS EN 442 and ISO9001:2015 standards, and supplied with CE and UKCA certification. Fixtures, fittings and a flexible cleaning brush are included, alongside a 15-year guarantee.

Key features

• Monstershop oval single column radiator
• Size: 1800mm x 360mm
• Colour: black
• 6-column design with 50mm x 25mm oval tubes
• Heat output: 3245 BTU at 60 (951 watts)
• Triple layered powder coating
• Standard 0.5" BSP inlet/outlet bore
• Supplied with secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee

Specifications

Build & finish

• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Weight: 16kg

Dimensions

• Height: 1800mm / 180cm / 63”
• Width: 360mm / 36cm / 14.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”

Performance

• Number of columns: 6
• BTU rating at 50: 2553
• BTU rating at 60: 3245
• Watt rating at 50: 748
• Watt rating at 60: 951
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 10m²

Connections & compliance

• Inlets/outlets size: standard 0.5" BSP bore
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
