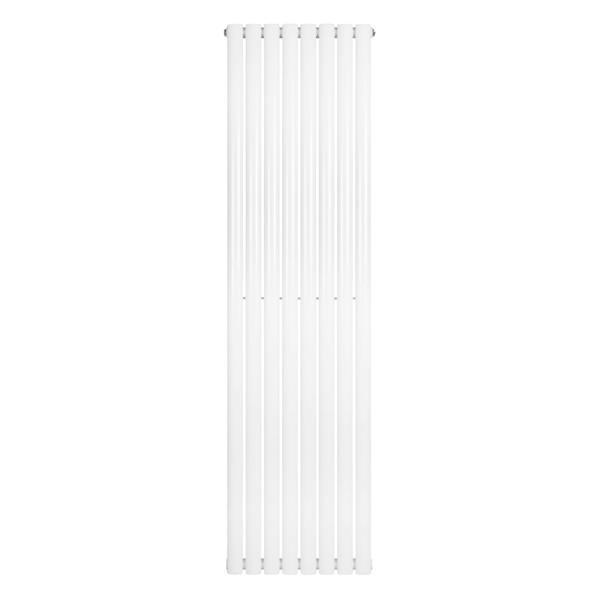

Monstershop Oval Single Column Radiator - 1800 x 480mm - White

Bring a clean, architectural look to your heating with the Monstershop Oval Single Column Radiator. Finished in white with a triple layered powder coating, it pairs a crisp, modern presence with a classic column profile that suits a wide range of interiors.

Made from premium 1.5mm carbon steel, this 1800 x 480mm radiator uses 8 oval tubes (50mm x 25mm) with a 10mm gap between tubes. Heat output is rated at 3403 BTU at 50 and 4325 BTU at 60 (997W at 50 and 1267W at 60), with a recommended application area of 13m². Standard 0.5" BSP inlets/outlets support straightforward valve selection, while included brackets and a fixing kit help keep installation neat. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, are matched with a 15-year guarantee.

Key features

• Oval single column radiator
• 1800 x 480mm size
• White finish with triple layered powder coating
• Premium 1.5mm carbon steel construction
• Heat output: 4325 BTU at 60 (1267W at 60)
• Standard 0.5" BSP inlet/outlet size
• CE and UKCA certified
• 15-year guarantee

Specifications

• Weight: 22.6kg
• Height: 1800mm / 180cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 8
• BTU rating @ 50: 3403
• BTU rating @ 60: 4325
• Watt rating @ 50: 997
• Watt rating @ 60: 1267
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 13m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : KC8ULTTEFL
