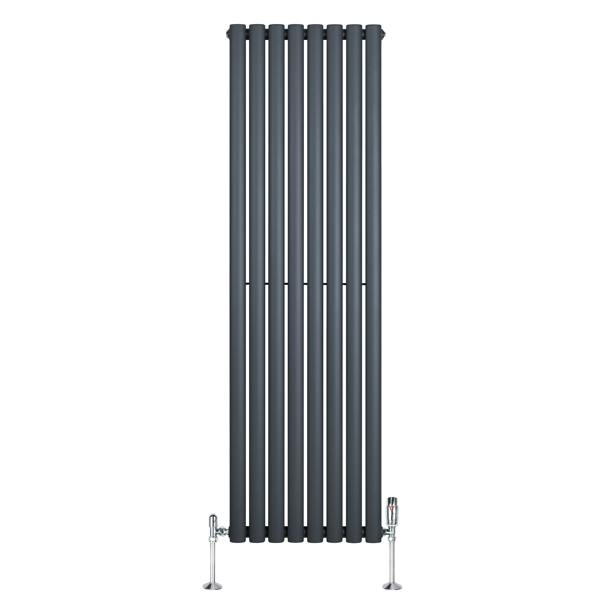

Monstershop Oval Single Column Radiator & Valves – 1600mm x 480mm – Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Oval Single Column Radiator & Valves set pairs an anthracite grey radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 480mm, it brings a tall, space-conscious profile that suits a wide range of rooms, while the triple layered powder coating delivers a clean, durable finish.

Made from 1.5mm carbon steel, the 8-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 3024 BTU @ 50 and 3838 BTU @ 60 (886W @ 50 and 1125W @ 60). The angled, brass thermostatic valves use a rotary knob for temperature adjustment from 6-28 degrees, with an integrated lock shield valve for water flow regulation. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Radiator size: 1600mm x 480mm
• Colour: anthracite grey
• 8-column design with 50mm x 25mm oval tubes
• Heat output: 3838 BTU @ 60 (1125W @ 60)
• Triple layered powder coating
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with 6-28 degrees temperature range
• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 19.2kg
• Finish: triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Number of columns: 8
• BTU rating @ 50: 3024
• BTU rating @ 60: 3838
• Watt rating @ 50: 886
• Watt rating @ 60: 1125
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 11m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Style: angled
• Control style: rotary knob
• Type: thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x oval single column radiator
• 4 x secure brackets
• 1 x practical fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
