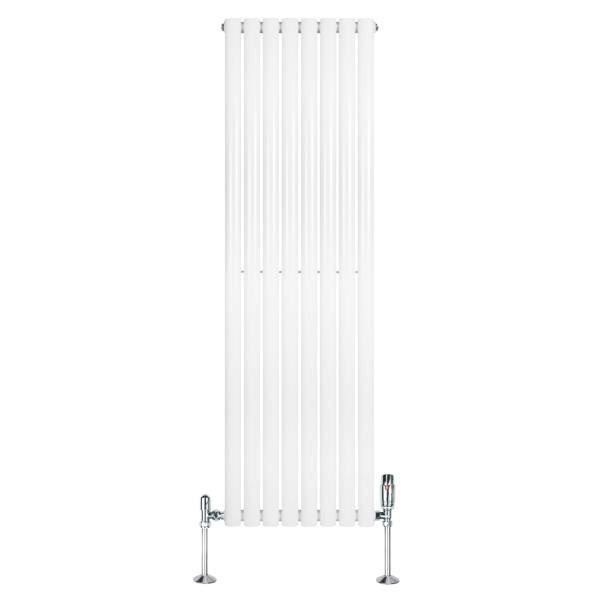

Monstershop Oval Single Column Radiator & Valves – 1600mm x 480mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in white with a triple layered powder coating, this 1600mm x 480mm radiator brings a crisp, modern presence to a range of interiors while maintaining a classic column profile.

Made from 1.5mm carbon steel and built with 8 columns, it delivers a heat output of 3838 BTU at 60 (1125W) and 3024 BTU at 50 (886W). Standard 0.5" BSP inlets/outlets support straightforward compatibility across UK & EU heating systems, while the included angled thermostatic valve set in polished chrome adds precise control. A rotary knob adjusts temperature from 6 to 28 degrees, and the integrated lock shield valve helps regulate water flow. Secure brackets, a fixing kit and a flexible cleaning brush are included, alongside CE & UKCA certification and testing to BS EN 442 and ISO9001:2015 standards.

Key features

• Oval single column radiator with 8 columns
• 1600mm x 480mm size in a white finish
• Triple layered powder coating
• Heat output: 3838 BTU at 60 (1125W); 3024 BTU at 50 (886W)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set with polished chrome finish
• Rotary knob temperature control: 6 to 28 degrees
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 19.2kg
• Height: 1600mm / 160cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• BTU rating @ 50: 3024
• BTU rating @ 60: 3838
• Watt rating @ 50: 886
• Watt rating @ 60: 1125
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
