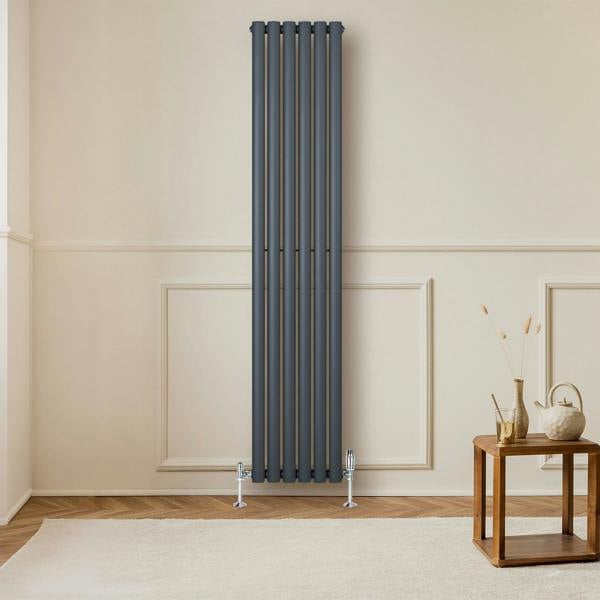

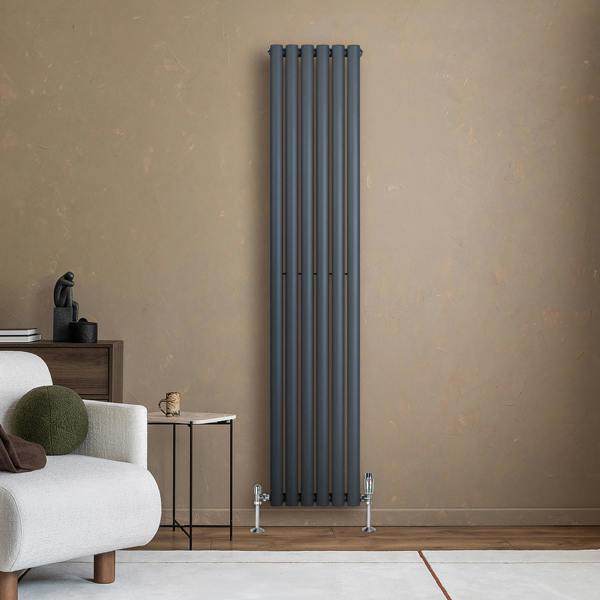

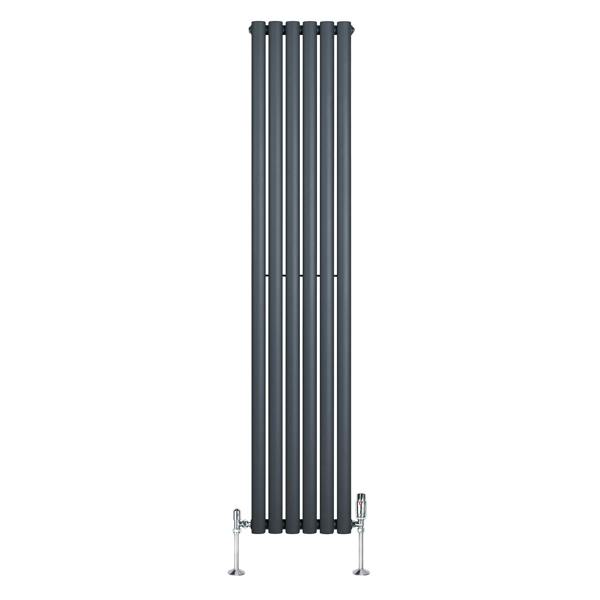

Monstershop Oval Single Column Radiator & Valves – 1800mm x 360mm – Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Oval Single Column Radiator & Valves set combines an anthracite grey radiator with a polished chrome thermostatic valve set. Measuring 1800mm x 360mm, it brings a tall, space-conscious profile that suits a wide range of rooms, with a recommended application area of 10m².

Made from 1.5mm carbon steel and finished in triple layered powder coating, the radiator is built around 6 columns with individual oval tubes sized 50mm x 25mm and a 10mm gap between tubes. Heat output is rated at 2553 BTU @ 50 and 3245 BTU @ 60 (748W @ 50 and 951W @ 60). Standard 0.5" BSP inlets/outlets support straightforward integration, while the angled thermostatic valves use a rotary knob with a 6-28 degrees temperature range and an integrated lock shield valve for water flow regulation. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Radiator size: 1800mm x 360mm
• Colour: anthracite grey
• 6-column design with 50mm x 25mm oval tubes
• Heat output: 3245 BTU @ 60 (951W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control
• Temperature range: 6-28 degrees
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Weight: 16kg

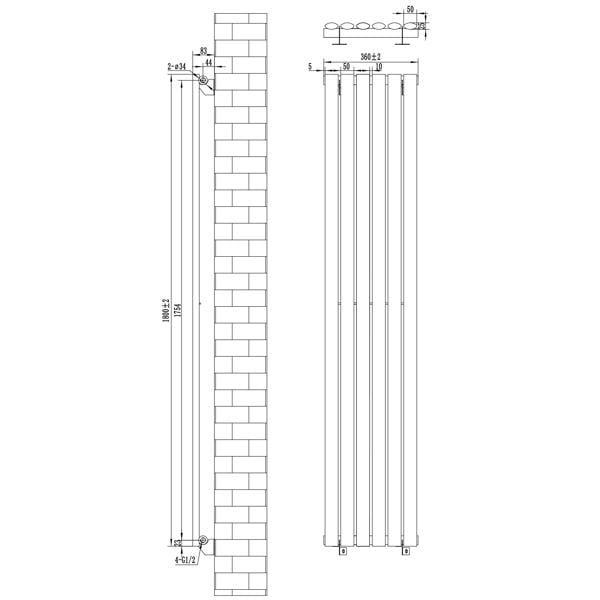

• Height: 1800mm / 180cm / 63”
• Width: 360mm / 36cm / 14.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Number of columns: 6
• BTU rating @ 50: 2553
• BTU rating @ 60: 3245
• Watt rating @ 50: 748
• Watt rating @ 60: 951
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 10m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Style: angled
• Type: thermostatic
• Control style: rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
