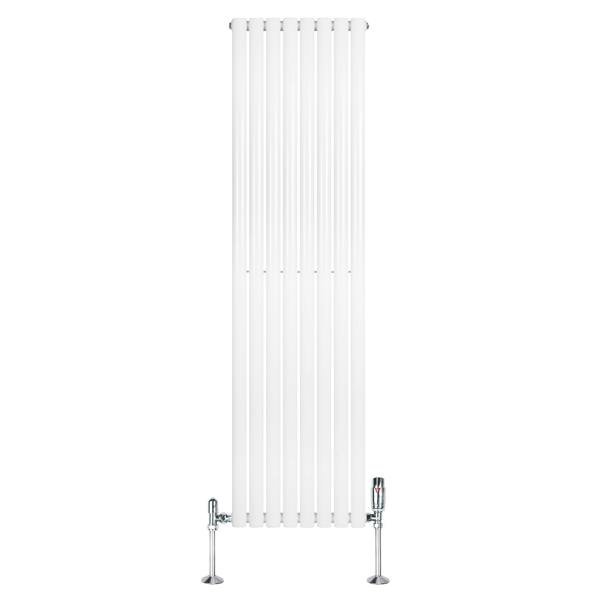

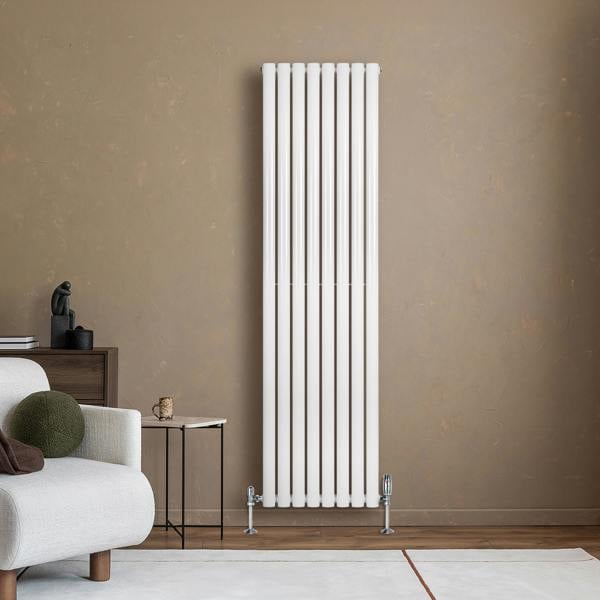

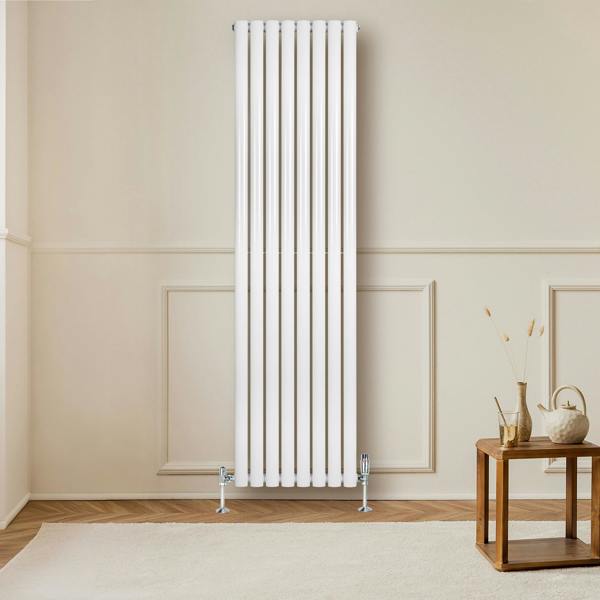

Monstershop Oval Single Column Radiator & Valves – 1800mm x 480mm – White

A clean, architectural update for modern interiors, the MonsterShop Oval Single Column Radiator & Valves set pairs a tall white radiator with a polished chrome thermostatic valve set. Measuring 1800mm x 480mm, it brings a strong vertical presence to living spaces, hallways and larger rooms, while the oval tube profile keeps the look refined.

Made from 1.5mm carbon steel and finished in a triple layered powder coating, it’s built for long-term everyday use. Heat output is rated at 4325 BTU at 60 (1267W) and 3403 BTU at 50 (997W), with a recommended application area of 13m². The angled thermostatic valves use a rotary knob for control, with an adjustable temperature range of 6–28 degrees, and include an integrated lock shield valve to regulate water flow.

Key features

• MonsterShop oval single column radiator with thermostatic valve set
• Radiator size: 1800mm x 480mm
• Heat output: 4325 BTU at 60 (1267W)
• 8-column design with 50mm x 25mm oval tubes
• Triple layered powder-coated white finish
• Standard 0.5" BSP inlet/outlet size
• Angled, polished chrome thermostatic valves with rotary control
• Valve temperature range: 6–28 degrees
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee on radiator; 10-year guarantee on valves

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 22.6kg
• Height: 1800mm / 180cm / 63”
• Width: 480mm / 48cm / 18.9”
• Depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 8
• BTU rating @ 50: 3403
• BTU rating @ 60: 4325
• Watt rating @ 50: 997
• Watt rating @ 60: 1267
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 13m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
