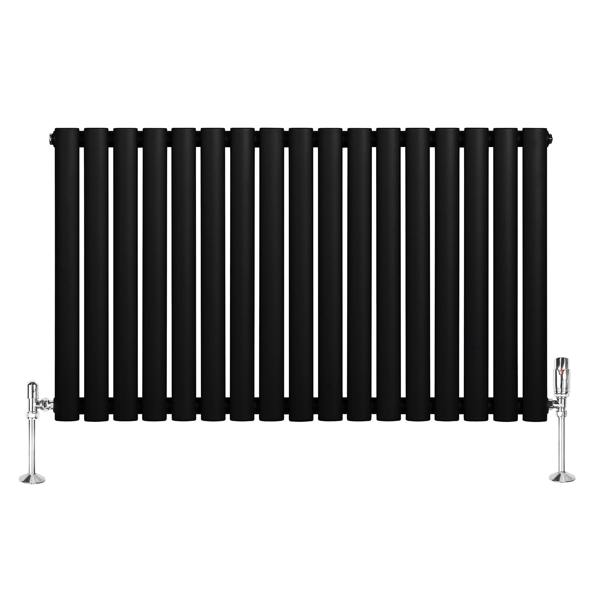

Monstershop Oval Single Column Radiator & Valves – 600mm x 1020mm – Black

A bold, architectural update for contemporary interiors, the Monstershop Oval Single Column Radiator & Valves set pairs a black oval-tube radiator with a polished chrome thermostatic valve set. Measuring 600mm high and 1020mm wide, it uses 17 columns of 50mm x 25mm oval tubes and a triple layered powder-coated finish for a clean, modern look.

Built from 1.5mm carbon steel and supplied with secure brackets and a practical fixing kit, it’s made for straightforward fitting. Heat output is rated at 2625 BTU @ 50 and 3310 BTU @ 60 (769W @ 50 and 970W @ 60), with a recommended application area of 10m². Standard 0.5" BSP inlets/outlets support broad compatibility across UK & EU heating systems, while CE & UKCA certification and testing to BS EN 442 and ISO9001:2015 standards provide added reassurance.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 600mm x 1020mm radiator size
• Black finish with triple layered powder coating
• 1.5mm carbon steel radiator construction
• Heat output: 3310 BTU @ 60 (970W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled, polished chrome thermostatic valves with rotary control
• Radiator guarantee length: 15 years

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 17.2kg
• Height: 600mm / 60cm / 23.6”
• Width: 1020mm / 102cm / 40.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 17
• BTU rating @ 50: 2625
• BTU rating @ 60: 3310
• Watt rating @ 50: 769
• Watt rating @ 60: 970
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 10m²
• Inlets/Outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
