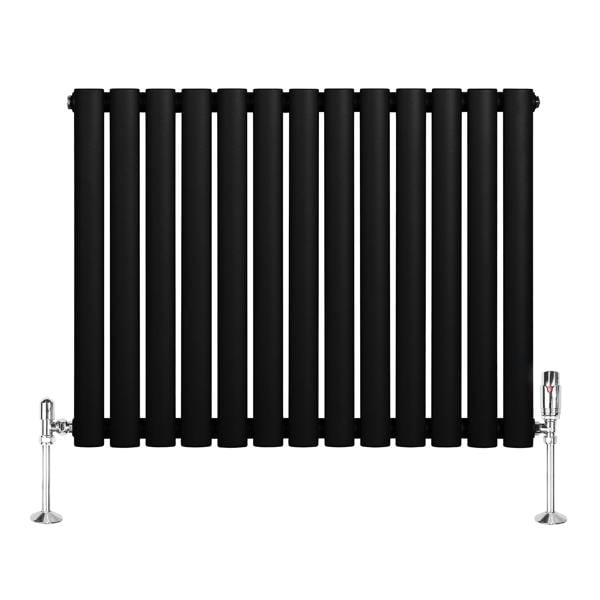

Monstershop Oval Single Column Radiator & Valves – 600mm x 780mm – Black

A bold, contemporary update for modern interiors, the Monstershop Oval Single Column Radiator & Valves pairs a black, triple layered powder-coated finish with a polished chrome thermostatic valve set. Built from 1.5mm carbon steel and sized at 600mm x 780mm, it brings a clean, architectural look while delivering a BTU rating @ 60 of 2531 (742W @ 60).

The 13-column design uses oval tubes sized 50mm x 25mm with a 10mm gap between tubes, and includes secure brackets and a practical fixing kit for straightforward fitting. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems. For control, the angled thermostatic valves use a rotary knob with a 6–28 degrees temperature range, alongside an integrated lock shield valve to regulate water flow. CE & UKCA certification and testing to BS EN 442 and ISO9001:2015 standards are supported by a 15-year guarantee for the radiator and a 10-year guarantee for the valves.

Key features

• 600mm x 780mm oval single column radiator with 13 columns
• Black finish with triple layered powder coating
• Made from 1.5mm carbon steel
• BTU rating @ 60: 2531; watt rating @ 60: 742
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set with rotary knob control (6–28 degrees)
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 13.5kg
• Height: 600mm / 60cm / 23.6”
• Width: 780mm / 78cm / 30.7”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 13
• BTU rating @ 50: 2007
• BTU rating @ 60: 2531
• Watt rating @ 50: 588
• Watt rating @ 60: 742
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 7m²
• Inlets/Outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
