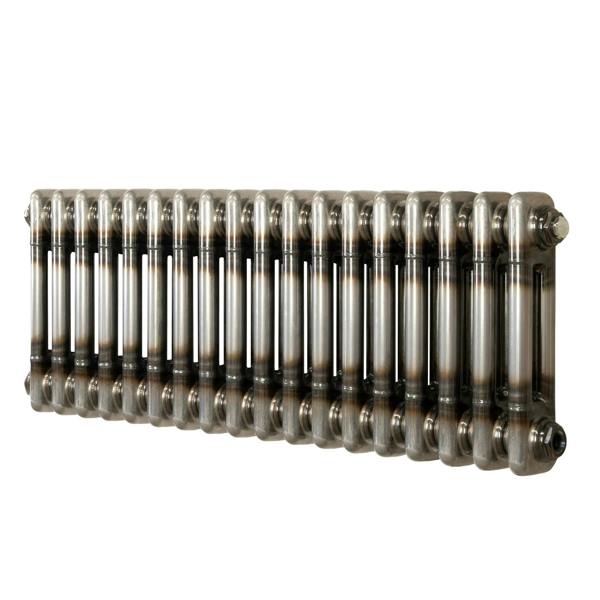

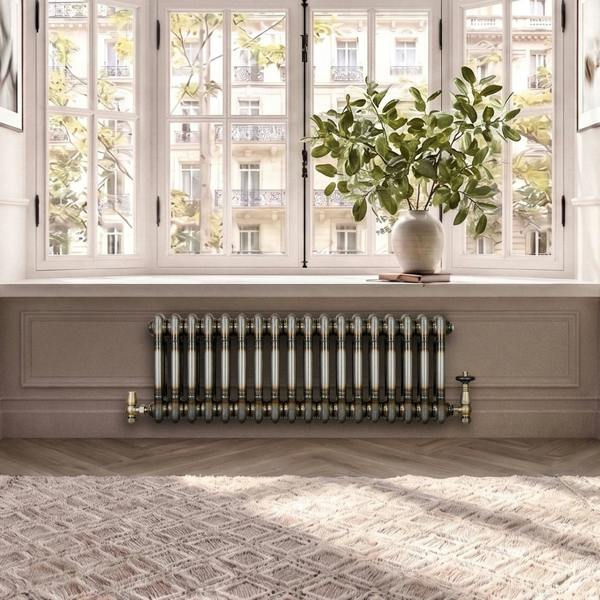

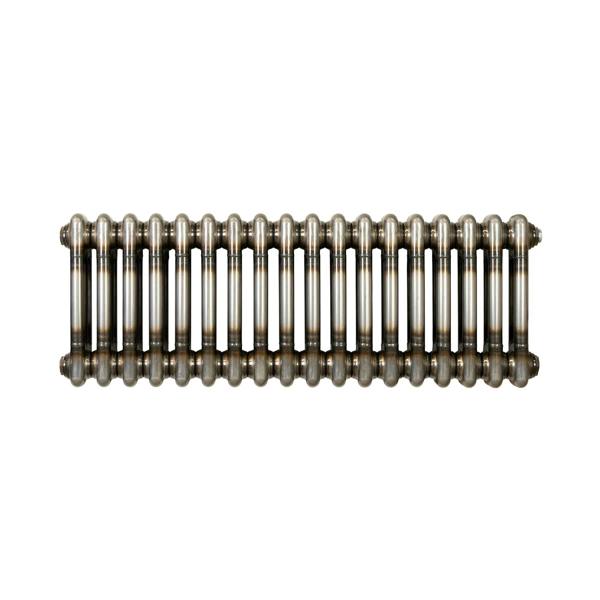

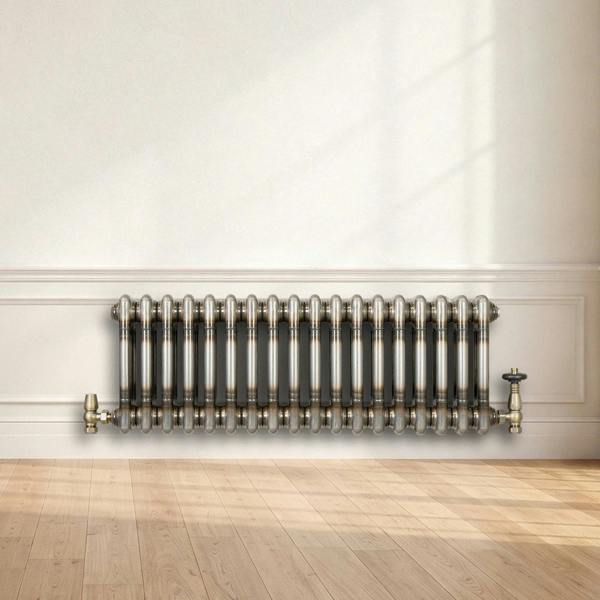

Monstershop Traditional 2 Column Radiator - 300 x 830mm - Raw Metal

A raw metal finish and horizontal 2-column profile give this Monstershop traditional radiator a distinctive industrial look, while keeping the format clean and architectural. Measuring 300 x 830mm, it suits a range of placements and comes with fixtures and fittings for straightforward fitting.

Made from 1.5mm carbon steel with a lacquer coating, the 18-column build uses 25mm tubes with a 45mm gap between tubes. Heat output is rated at 2139 BTU at 60 (627 watts) and 1703 BTU at 50 (499 watts). It supports a maximum working temperature of 95°C, with a maximum working pressure of 10 bar and a test pressure of 13 bar. Standard 0.5" BSP bore inlets/outlets allow valve choice to suit your setup, and compatibility covers all UK & EU heating systems. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards, plus a 15-year guarantee.

Key features

• Traditional 2-column horizontal radiator
• Raw metal colour with lacquer coating
• 300 x 830mm size
• 18-column configuration with 25mm individual tube size
• Heat output: 2139 BTU rating @ 60 (627 watts)
• Standard 0.5" BSP bore inlets/outlets
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee

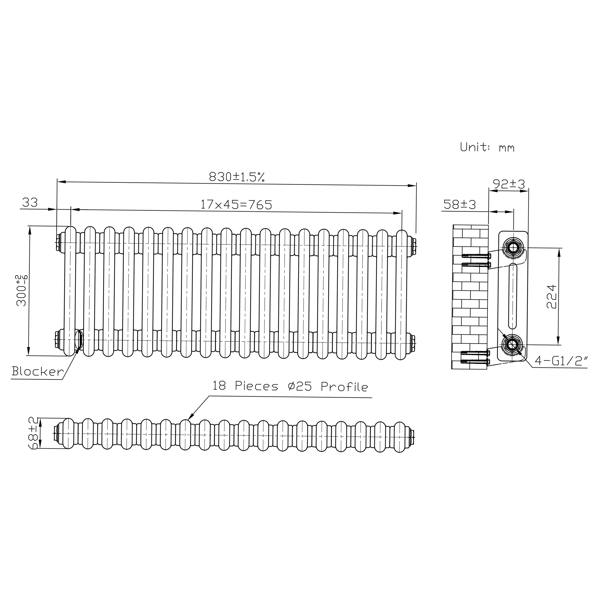

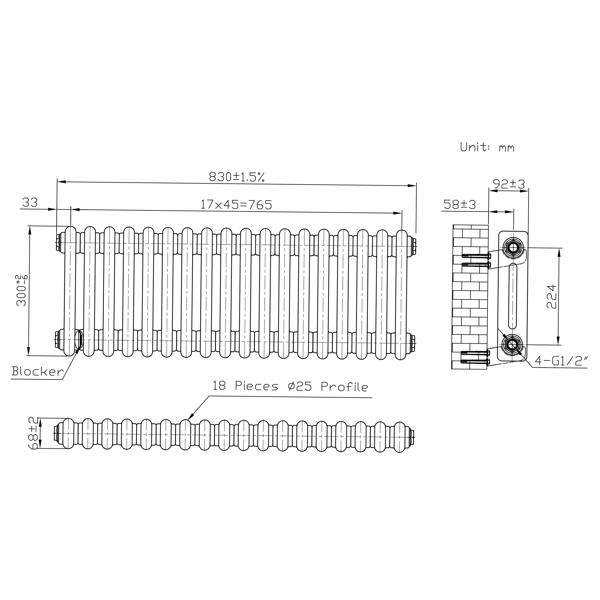

Specifications

• Weight: 9.6kg
• Material: 1.5mm carbon steel
• Finish: lacquer coating
• Height: 300mm / 30cm / 11.8”
• Width: 830mm / 83cm / 32.7”
• Radiator depth: 68mm / 6.8cm / 2.7”
• Depth with bracket: 92mm / 9.2cm / 3.6”
• Gap between tubes: 45mm / 4.5cm / 1.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 18
• BTU rating @ 50: 1703
• BTU rating @ 60: 2139
• Watt rating @ 50: 499
• Watt rating @ 60: 627
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 3.3m²
• Heating surface area: 0.91m²
• Inlets/Outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 58mm / 5.8cm / 2.3”
• Valve-to-valve height: 324mm / 32.4cm / 12.8”
• Compatibility: all UK & EU heating systems

In the box

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Support & warranty

• 15-year quality guarantee

Rackhams Reference : WVPCMYNBXS
