Monstershop Traditional 2 Column Radiator - 600 x 1010mm - Raw Metal

A raw-metal finish gives this Monstershop traditional 2 column horizontal radiator a distinctive industrial look, while its carbon steel construction keeps the design firmly practical. Measuring 600mm high by 1010mm wide, it suits a range of placements and works with standard 0.5" BSP inlet/outlet connections for straightforward valve selection.

Built from 1.5mm carbon steel with a lacquer coating, the 22-column layout uses 25mm steel tubes with 45mm gaps between them. Heat output is rated at 4773 BTU at 60 (1399 watts) and 3799 BTU at 50 (1114 watts). It supports a maximum working temperature of 95°C and a maximum working pressure of 10 bar, with a 13 bar test pressure. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards, and a 15-year guarantee.

Key features

• Traditional 2 column horizontal radiator
• Raw metal colour with lacquer coating
• 600mm (60cm) height and 1010mm (101cm) width
• Heat output: 4773 BTU at 60 / 1399 watts at 60
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee

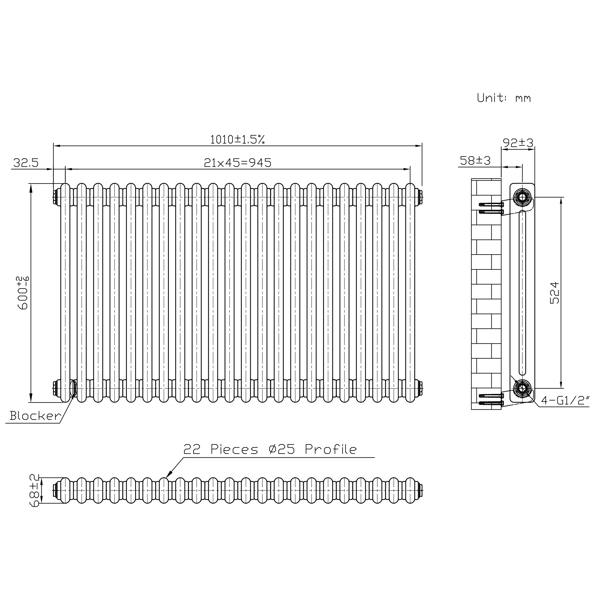

Specifications

• Weight: 20.9kg
• Material: 1.5mm carbon steel
• Radiator depth: 68mm (6.8cm)
• Depth with bracket: 92mm (9.2cm)
• Gap between tubes: 45mm (4.5cm)
• Individual tube size: 25mm (2.5cm)
• Number of columns: 22
• BTU rating at 50: 3799
• BTU rating at 60: 4773
• Watt rating at 50: 1114
• Watt rating at 60: 1399
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 7.4m²
• Heating surface area: 2.15m²
• Distance from wall to centre of inlet: 58mm (5.8cm)
• Valve-to-valve height: 524mm (52.4cm)
• Compatibility: all UK & EU heating systems

In the box

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Rackhams Reference : D7SXHB14ZA
