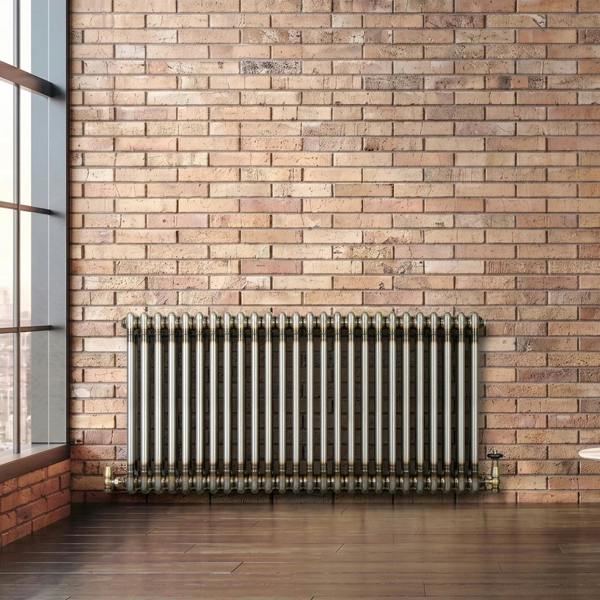

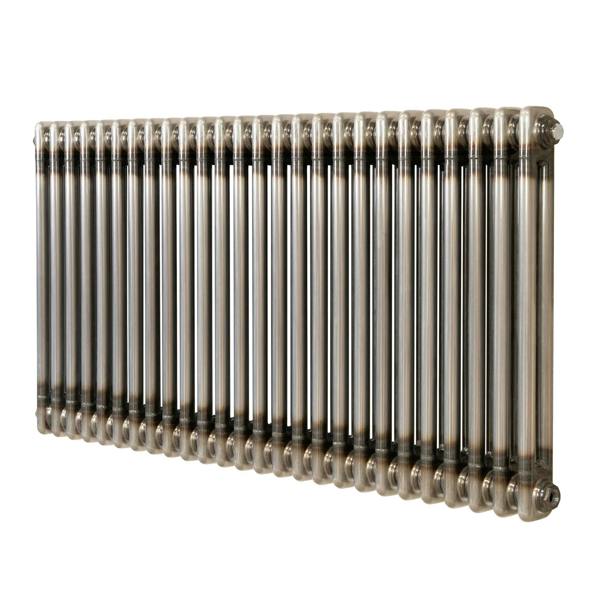

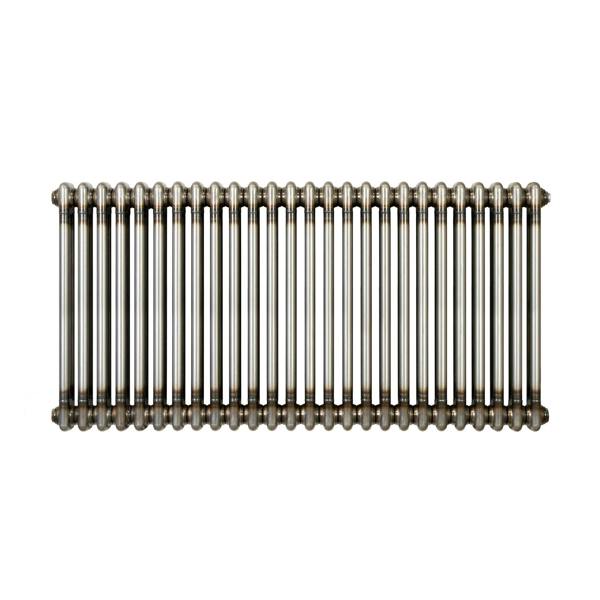

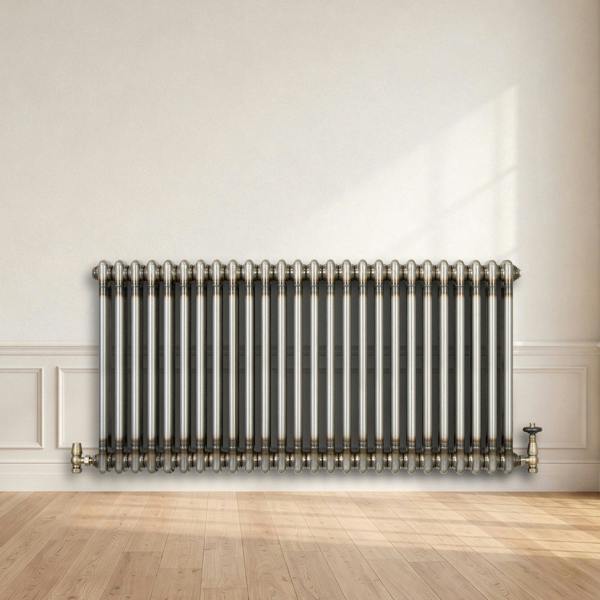

Monstershop Traditional 2 Column Radiator - 600 x 1190mm - Raw Metal

Bring an industrial edge to classic heating with the Monstershop Traditional 2 Column Radiator, a horizontal design finished in raw metal with a lacquer coating. Made from 1.5mm carbon steel, it pairs a traditional column profile with a bold, stripped-back look that suits feature walls and contemporary interiors alike.

Measuring 600mm high and 1190mm wide, this 26-column radiator uses 25mm steel tubes with a 45mm gap between tubes. Heat output is rated at 5640 BTU at 60 (1653 watts) and 4490 BTU at 50 (1316 watts). It supports a maximum working temperature of 95°C, with a maximum working pressure of 10 bar and a test pressure of 13 bar. Standard 0.5" BSP inlets/outlets provide straightforward valve compatibility, while fixtures and fittings are included for secure mounting.

Key features

• Traditional 2 column horizontal radiator
• Raw metal colour with lacquer coating
• 1.5mm carbon steel construction
• Heat output: 5640 BTU at 60
• 26-column configuration with 25mm individual tube size
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• CE and UKCA certified
• 15-year guarantee

Specifications

• Colour: Raw Metal
• Material: 1.5mm Carbon Steel
• Finish: Lacquer Coating
• Weight: 24.6kg

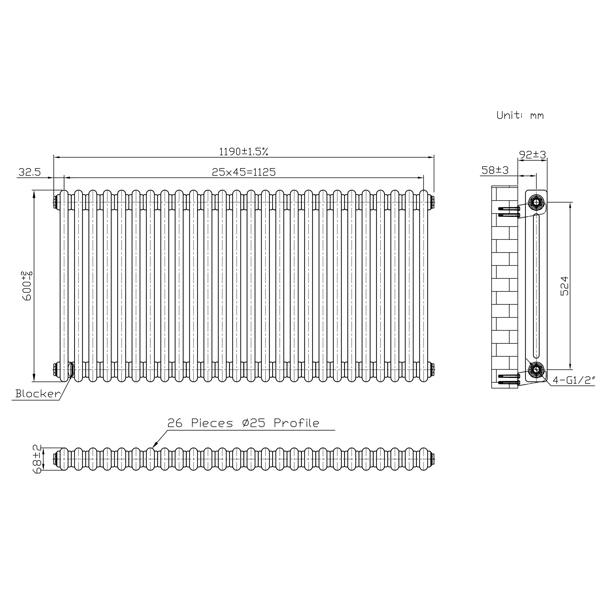

• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator Depth: 68mm / 6.8cm / 2.7”
• Depth With Bracket: 92mm / 9.2cm / 3.6”
• Gap Between Tubes: 45mm / 4.5cm / 1.8”
• Individual Tube Size: 25mm / 2.5cm / 1”
• Number Of Columns: 26
• BTU Rating @ 50: 4490
• BTU Rating @ 60: 5640
• Watt Rating @ 50: 1316
• Watt Rating @ 60: 1653
• Max Working Temperature: 95°C
• Max Working Pressure: 10 Bar
• Test Pressure: 13 Bar
• Recommended Application Area: 8.8m²
• Heating Surface Area: 2.54m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 58mm / 5.8cm / 2.3”
• Valve-To-Valve Height: 524mm / 52.4cm / 20.6”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

In the box

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
