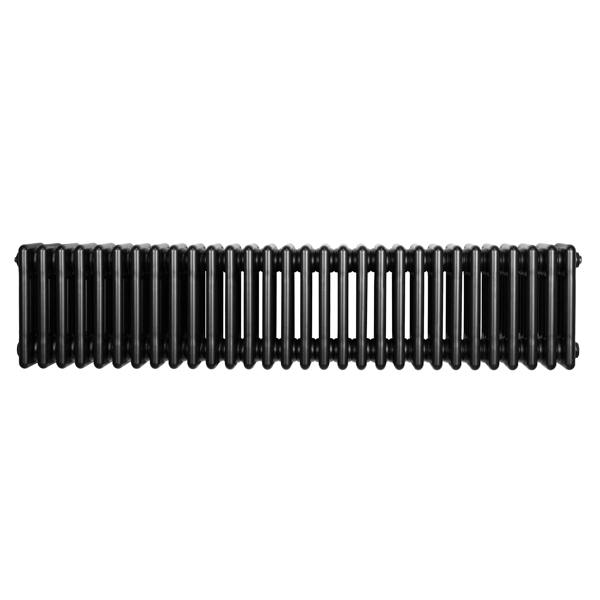

Monstershop Traditional 4 Column Radiator - 300 x 1370mm - Black

Bring a confident, traditional look to your heating with the Monstershop Traditional 4 Column Radiator, a horizontal model finished in black. Made from 1.5mm carbon steel and completed with a triple layered powder coating, it combines a classic column profile with a clean, contemporary finish that suits a wide range of interiors.

Measuring 300mm high and 1370mm wide, this radiator uses 30 columns with 25mm individual tube size and a 20mm gap between tubes. Heat output is rated at 5185 BTU at 60 (1519 watts) and 4078 BTU at 50 (1195 watts). It supports a maximum working temperature of 95°C, with a maximum working pressure of 12 bar and test pressure of 15.6 bar. Standard 0.5" BSP bore inlets/outlets allow valve choice to suit your installation, with compatibility across UK and EU heating systems.

Key features

• Traditional 4 column horizontal radiator
• 30-column configuration
• Black finish with triple layered powder coating
• Made from 1.5mm carbon steel
• Heat output: 5185 BTU at 60 (1519 watts)
• Standard 0.5" BSP bore inlets/outlets
• CE and UKCA certified
• 15-year guarantee

Specifications

• Colour: Black
• Weight: 36.6kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 300mm / 30cm / 11.8”
• Width: 1370mm / 137cm / 53.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 30
• BTU rating @ 50: 4078
• BTU rating @ 60: 5185
• Watt rating @ 50: 1195
• Watt rating @ 60: 1519
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Rackhams Reference : WNR127FQQR
