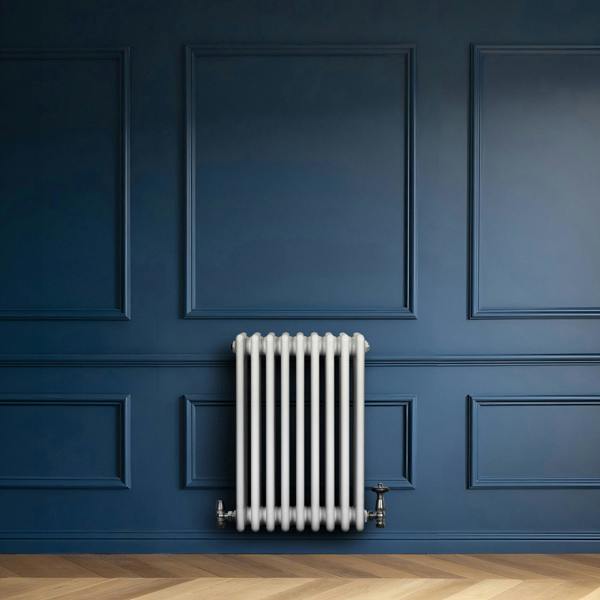

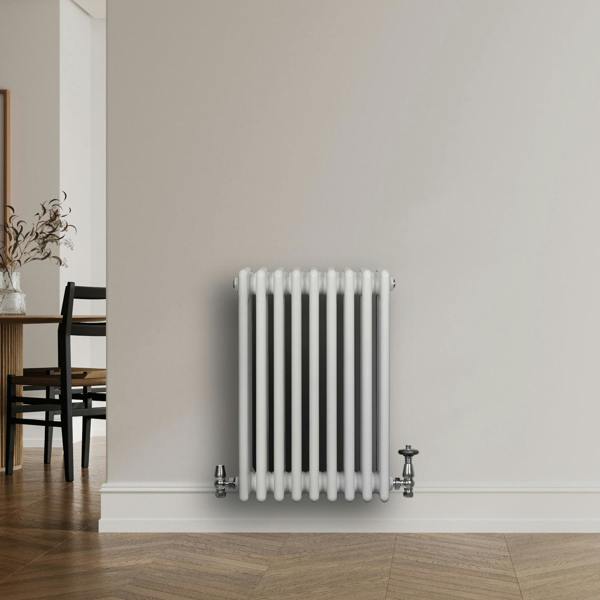

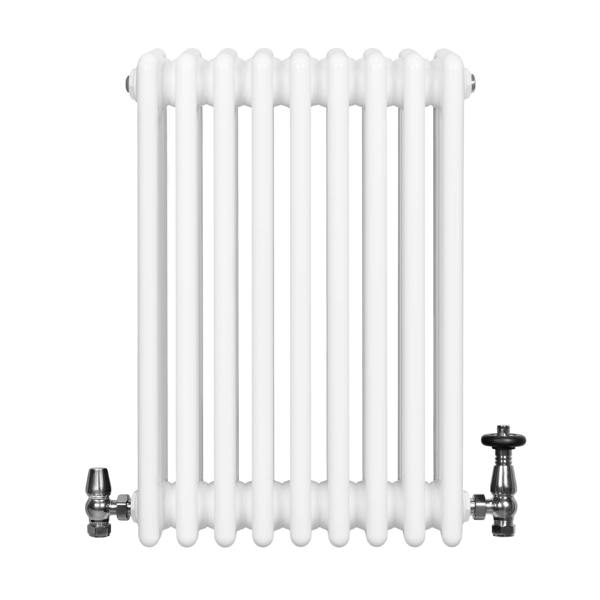

Monstershop Traditional 4 Column Radiator & Valves - 600 x 425mm - White

Bring a refined, traditional look to your heating with the Monstershop Traditional 4 Column Radiator & Valves. Finished in white with a triple layered powder coating, it offers a clean, architectural presence that suits a wide range of interiors. Built from 1.5mm carbon steel and sized at 600mm high by 425mm wide, it’s supplied with secure brackets and a fixing kit for straightforward fitting.

Heat output is rated at 1786 BTU @ 60 (523W @ 60), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems. A chrome thermostatic valve set is included, with an angled style and rotary knob control, plus an integrated lockshield valve for regulating water flow. CE & UKCA certification and testing to BS EN 442 & ISO9001:2015 standards complete the specification, alongside a 15-year guarantee for the radiator and 10 years for the valves.

Key features

• Traditional 4 column horizontal radiator with thermostatic valve set
• Size: 600 x 425mm
• Heat output: 1786 BTU @ 60
• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Standard 0.5" BSP inlet/outlet size
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442 & ISO9001:2015 standards
• Guarantee: 15 years (radiator); 10 years (valves)

Specifications

Radiator

• Colour: White
• Weight: 20.7kg
• Material: 1.5mm carbon steel
• Height: 600mm / 60cm / 23.6”
• Width: 425mm / 42.5cm / 16.7”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 9
• BTU rating @ 50: 1406
• BTU rating @ 60: 1786
• Watt rating @ 50: 412
• Watt rating @ 60: 523
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 5m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
