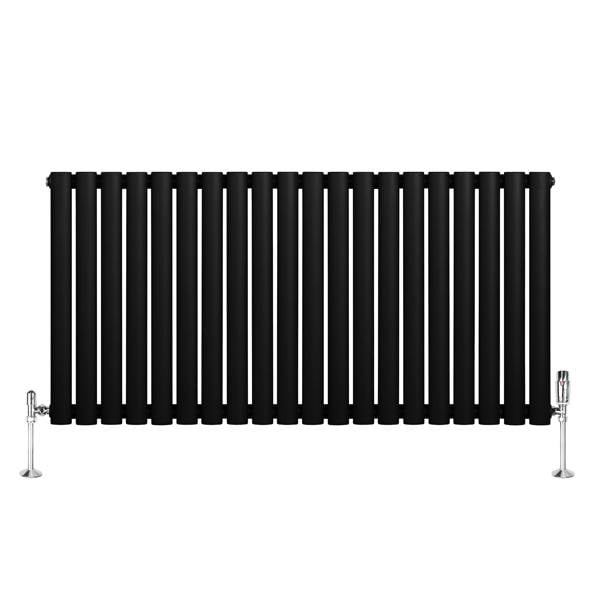

Monstershop Oval Single Column Radiator & Valves – 600mm x 1200mm – Black

A bold, architectural update for modern interiors, the Monstershop Oval Single Column Radiator & Valves combines a black, triple-layer powder-coated finish with a polished chrome thermostatic valve set. Measuring 600mm high by 1200mm wide, it brings a strong visual presence while delivering a BTU rating @ 60 of 3896 (1142W @ 60) for dependable room heating.

Made from 1.5mm carbon steel, the 20-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Standard 0.5" BSP inlets/outlets support straightforward integration, and the angled thermostatic valves offer rotary control with a 6–28 degrees temperature range. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete a specification built for long-term confidence.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Size: 600mm (H) x 1200mm (W)
• Heat output: 3896 BTU rating @ 60 (1142W @ 60)
• Material: 1.5mm carbon steel
• Finish: triple layered powder coating in black
• Standard 0.5" BSP bore inlets/outlets
• Angled, polished chrome thermostatic valves with rotary knob control
• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Specifications

Radiator

• Colour: Black
• Weight: 21kg
• Material: 1.5mm carbon steel
• Height: 600mm / 60cm / 23.6”
• Width: 1200mm / 120cm / 47.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 20
• BTU rating @ 50: 3089
• BTU rating @ 60: 3896
• Watt rating @ 50: 905
• Watt rating @ 60: 1142
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
