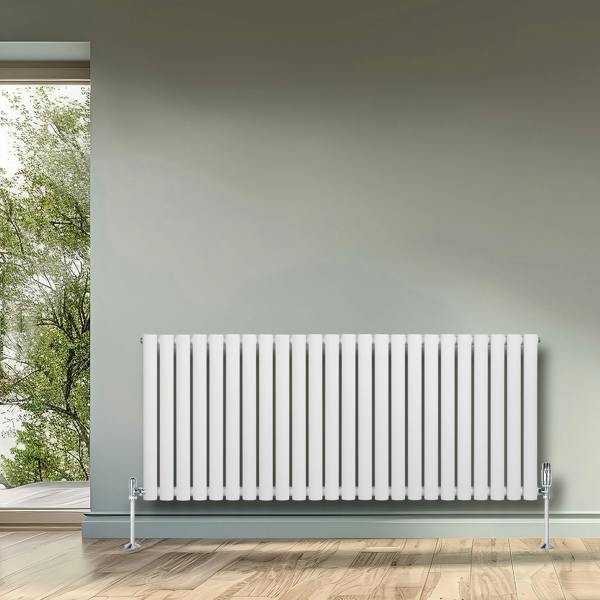

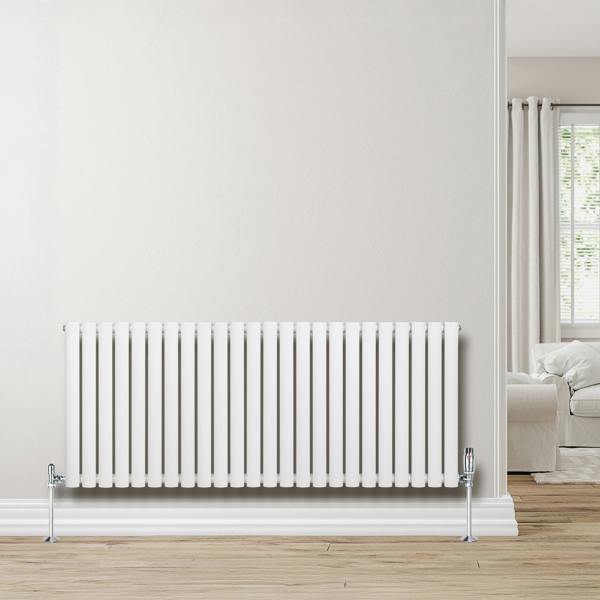

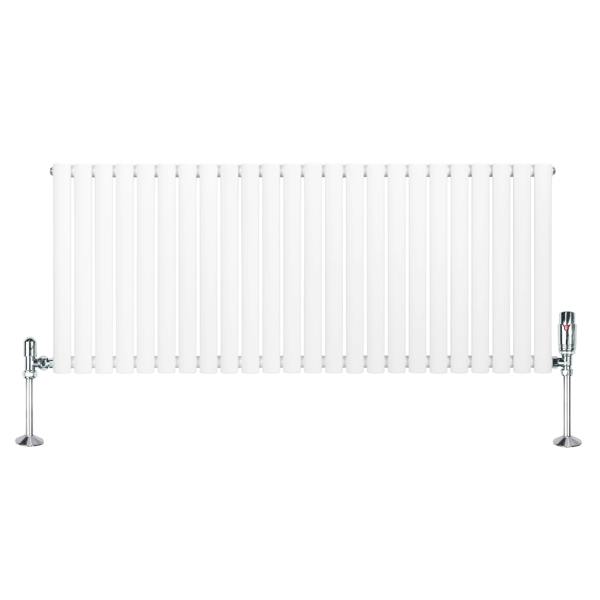

Monstershop Oval Single Column Radiator & Valves – 600mm x 1440mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves. Finished in white with a triple layered powder coating, this 600mm x 1440mm radiator brings a crisp focal point to contemporary and classic interiors alike, while the included polished chrome thermostatic valve set completes the installation with a coordinated finish.

Made from 1.5mm carbon steel and built with 24 oval tubes (50mm x 25mm) with a 10mm gap between tubes, it delivers a BTU rating @ 60 of 4674 (1369W) and a BTU rating @ 50 of 3706 (1086W). The angled thermostatic valves use a rotary knob for temperature adjustment from 6–28 degrees, with an integrated lock shield valve to regulate water flow. CE and UKCA certified and tested to BS EN 442 and ISO9001:2015 standards, it is supplied with brackets, a fixing kit and a flexible cleaning brush.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 600mm x 1440mm radiator size
• White finish with triple layered powder coating
• Heat output: 4674 BTU @ 60 (1369W); 3706 BTU @ 50 (1086W)
• 24-column design with 50mm x 25mm oval tubes
• Standard 0.5" BSP inlet/outlet size
• Angled, polished chrome thermostatic valves with 6–28 degrees control range
• 15-year guarantee on the radiator; 10-year guarantee on the valves

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 23.9kg
• Height: 600mm / 60cm / 23.6”
• Width: 1440mm / 144cm / 56.7”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 24
• BTU rating @ 50: 3706
• BTU rating @ 60: 4674
• Watt rating @ 50: 1086
• Watt rating @ 60: 1369
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 14m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
