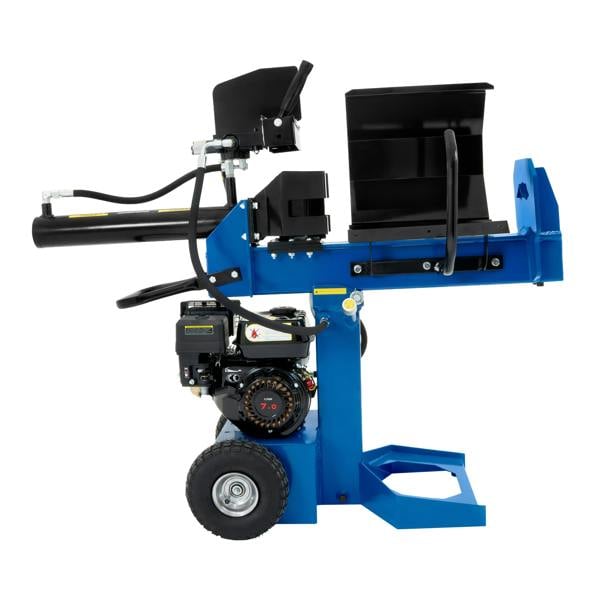

T-mech 15T Log Splitter

From T-mech, this 15T Log Splitter is a petrol-powered machine designed to make firewood preparation faster and more manageable when you’re working with larger, tougher logs. With horizontal and vertical splitting positions, it offers flexibility for different log sizes and handling preferences, while the auto-return ram helps keep work moving smoothly.

Powered by a 7HP 4-stroke petrol motor, the hydraulic system delivers 15T of ram force with a 10 second cycle time. A heavy-duty 4-way steel cross wedge is included for 4-way splitting, helping you increase output per cycle. For easier movement around your outdoor space, it’s fitted with 10" rubber tyres and a manoeuvre handle, and a waterproof rain cover is supplied for added protection when not in use.

Key features

• 15T ram force with 10 second cycle time
• 7HP 4-stroke petrol motor

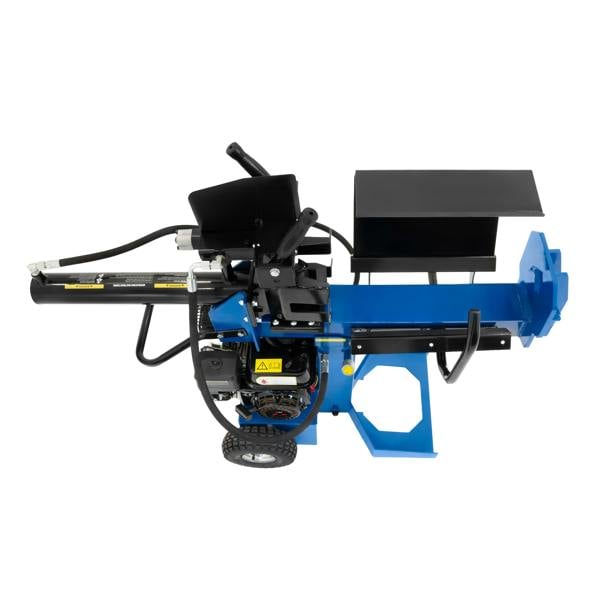

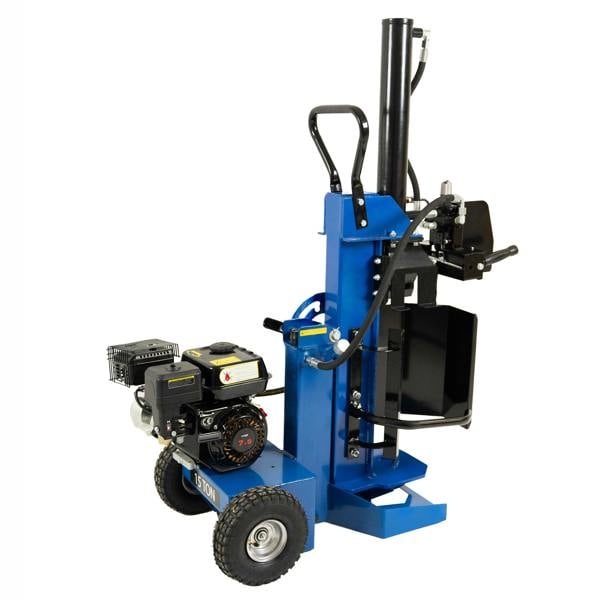

• Horizontal and vertical splitting positions
• Auto-return ram

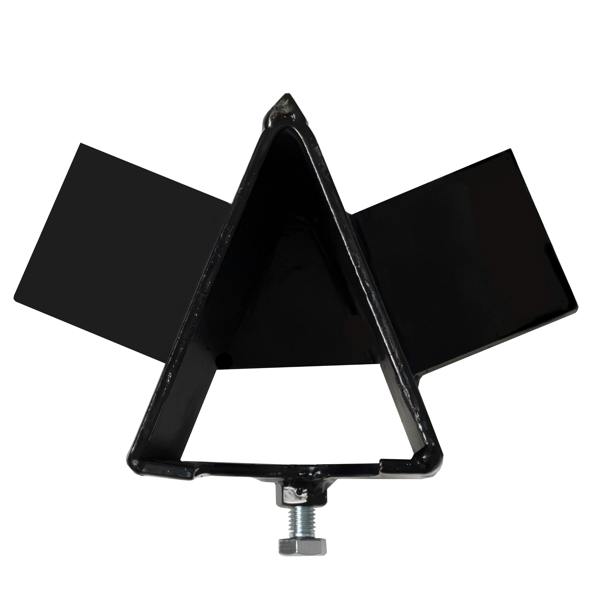

• Includes heavy-duty 4-way steel cross wedge for 4-way splitting

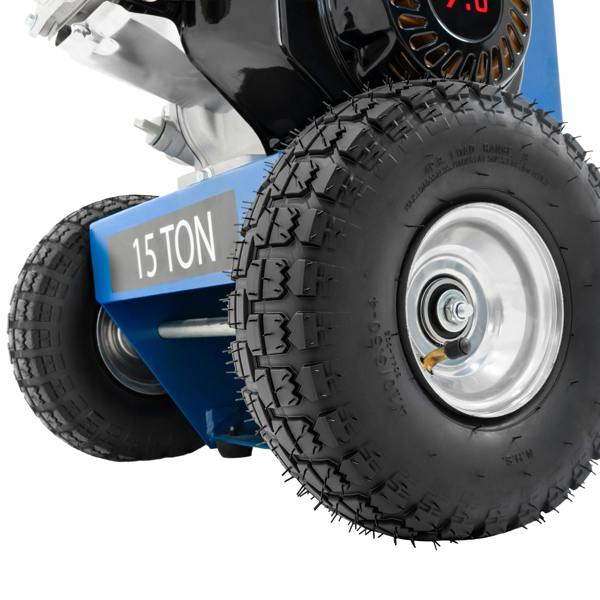

• 10" rubber tyres and manoeuvre handle for transport

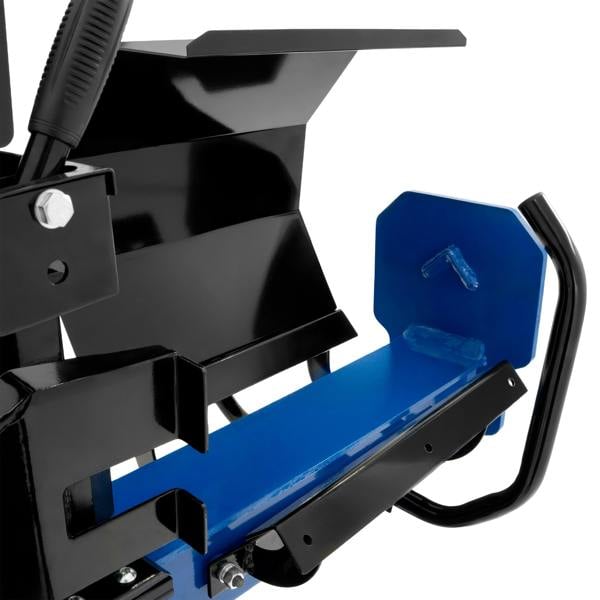

• Built-in working table
• Two-handle safety controls

Specifications

• Colour: Blue
• Weight: 120kg
• Body Material: Carbon steel
• Tyre Material: Rubber
• Ram force: 15T

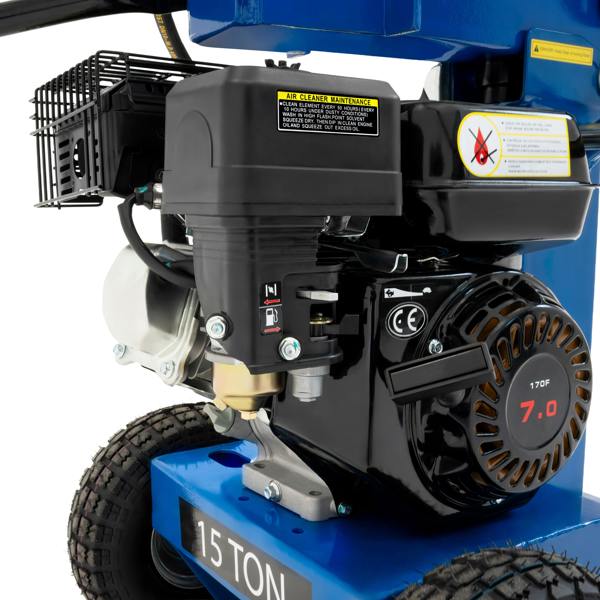

• Engine: 7HP 4-stroke petrol motor
• Gear pump: 2.1GPM
• Max pressure: 3500PSI / 25Mpa
• Hydraulic cylinder diameter: 80mm
• Hydraulic capacity: 5L
• Oil type: 32# hydraulic oil
• Log splitting length: 400-520mm
• Splitting positions: Horizontal & vertical
• Cycle time: 10 second
• Noise level: 110db
• Tyre size: 10"

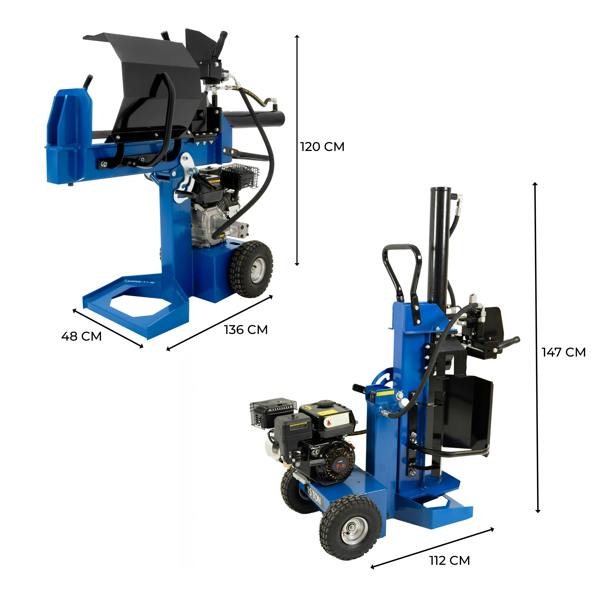

Sizing

• Horizontal position height: 1.2m / 120cm / 47.2"
• Vertical position height: 1.47m / 147cm / 57.9"
• Horizontal position width: 1.36m / 136cm / 53.5"
• Vertical position width: 1.12m / 112cm / 44.1"
• Depth: 0.48m / 48cm / 18.9"

What's included

• 1 x Powerful 15T Log Splitter
• 1 x Heavy duty 4-way cross wedge

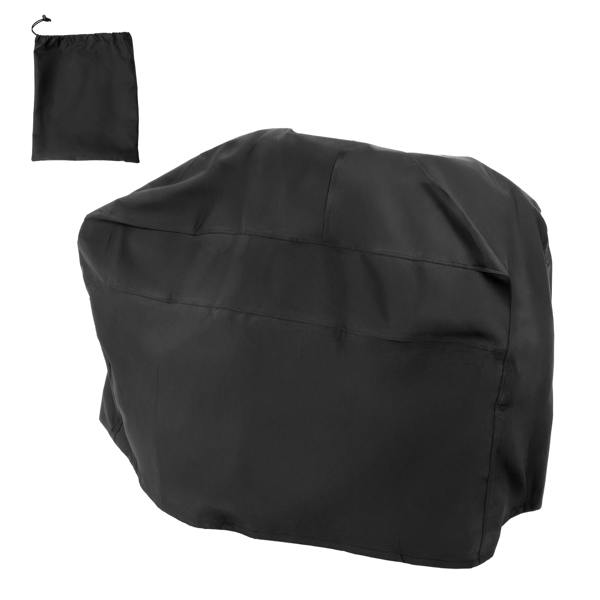

• 1 x Waterproof rain cover

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : L1CTT3C5BB
