T-Mech Portable Silent Diesel Generator Single Phase 230V

From T-MECH, this portable silent diesel Generator is designed to provide dependable backup power for homes, businesses and site use. An integrated ATS (automatic transfer switch) detects an outage and automatically restores power to connected electrical items, then monitors the mains supply and shuts the generator down once power returns. For added control, the electric key start system also allows manual starting and stopping when required.

Built for demanding environments, it features a 20L fuel tank and delivers up to 16 1/2 hours running time at 50% load. A maximum output of 6kVA and single-phase operation support multiple devices at once, with a choice of 115V and 230V sockets plus a 12A DC output. The closed frame design helps keep sound output to 72 dB at 7m, while the powder coated steel construction and black finish with orange detailing offer a robust, protective exterior. For safer running, a low-level warning light indicates when more oil is required, and the unit switches off automatically if oil pressure becomes too low.

Key features

• Built-in ATS (automatic transfer switch) for automatic changeover and shutdown when mains power returns
• Electric key start system for manual control
• Closed frame design for reduced noise output
• Low-level warning light and automatic shut-off if oil pressure becomes too low
• AVR (automatic voltage regulator) control system to monitor output and protect against voltage fluctuations

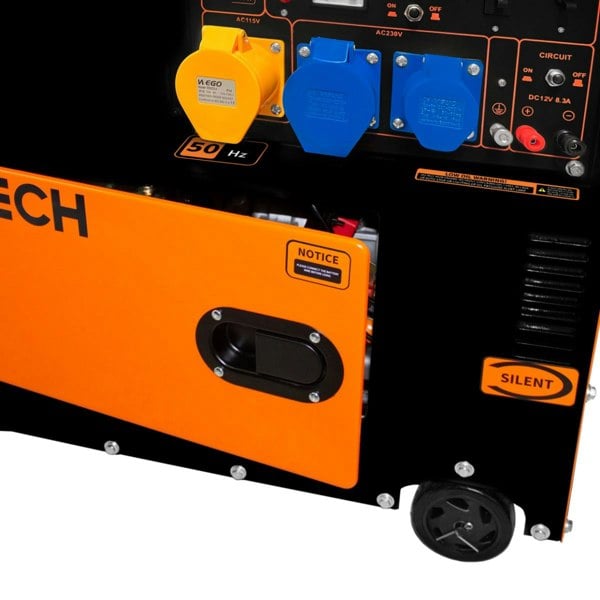

• AC output sockets: 1 x 32A 115V, 1 x 16A 230V, 1 x 32A 230V
• DC output: 1 x 12A
• 4 x 4” wheels and handle for easier movement

Specifications

• Colour: Black and orange
• Material: Powder coated steel
• Weight: 154kg
• Fuel tank capacity: 20L
• Running time at 50%: 16 1/2 hours
• Engine output: 9kW / 13HP
• Max engine output: 6kVA
• Generator rated output: 6000W
• Generator max output: 6500W
• Phase: Single
• Starting system: Electric
• Voltage: 115V / 230V
• Frequency: 50Hz
• RPM: 3000
• Sound output: 72 dB at 7m
• CE certificate: CE & UKCA

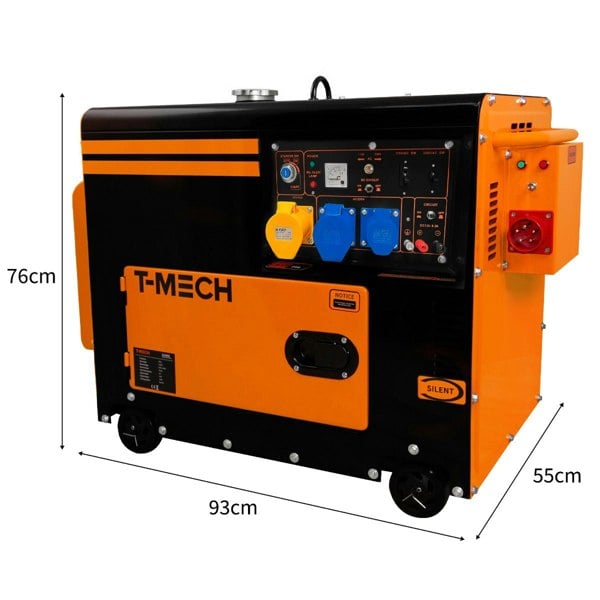

Sizing

• 761mm H / 76.1cm H / 30” H
• 932mm W / 93.2cm W / 36.7” W
• 548mm D / 54.8cm D / 21.6” D

What's included

• 1 x Powerful diesel generator
• 1 x Practical tool kit
• 1 x Handy fuel funnel
• 2 x Starter keys

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : T29FMITTNI
