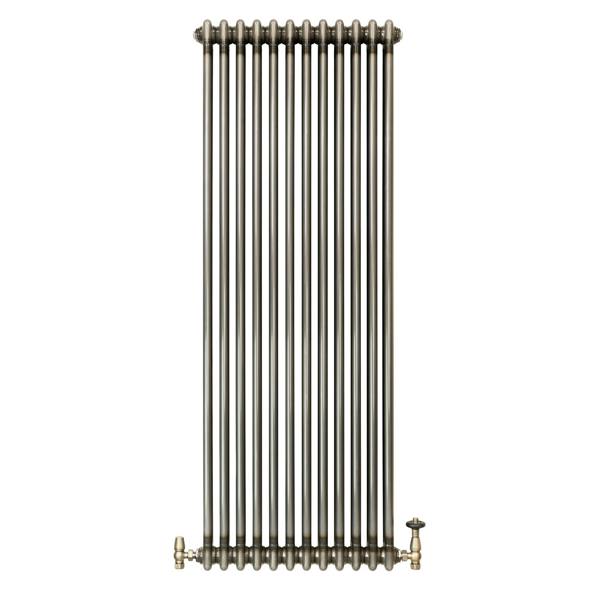

Traditional 2 Column Radiator & Valves - 1800mm x 560mm - Raw Metal

From MonsterShop, this traditional 2 column vertical radiator and valve set brings an industrial raw metal finish to a practical heating solution. Designed to stand out as well as perform reliably, it combines a tall, space-conscious profile with a bold look that suits both traditional and contemporary interiors.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 12 columns with 25mm steel tubes and is engineered for dependable everyday use. A thermostatic angled valve set is supplied for precise temperature adjustment, with a rotary knob and an adjustable range from 6–28C. The included lockshield valve helps regulate water flow, while the standard 0.5" BSP inlet and outlet offer compatibility with all UK and EU heating systems.

Key features

• 1.5mm carbon steel construction with lacquer coating
• Raw metal finish
• 12-column vertical design with 25mm tubes
• BTU rating @ 60: 7312
• Standard 0.5" BSP inlet and outlet
• Compatible with all UK and EU heating systems
• CE and UKCA certified, tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Valve style: Angled
• Valve type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• Radiator: 1800mm H x 560mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 1724mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set
