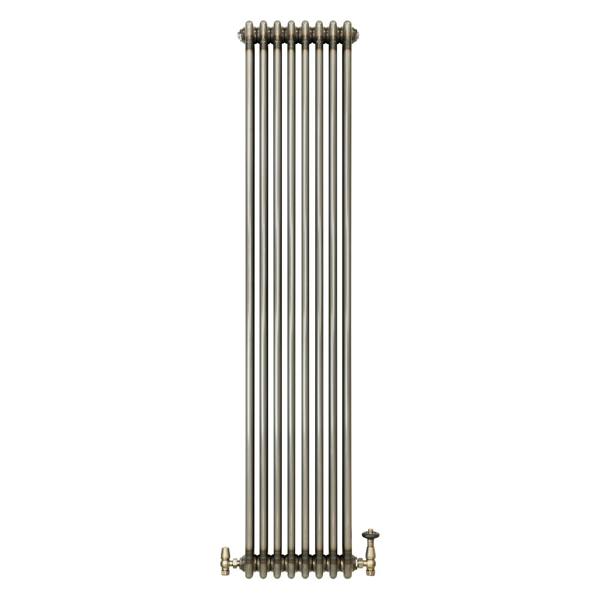

Traditional 3 Column Radiator & Valves – 1800mm x 380mm - Raw Metal

From MonsterShop, this Traditional 3 Column Radiator and Valves set brings together an industrial raw metal finish with a tall, space-conscious vertical design. Made from 1.5mm carbon steel and finished with a lacquer coating, it is designed to introduce dependable warmth while creating a distinctive focal point within the room.

At 1800mm high and 380mm wide, the radiator suits a range of interior settings where vertical proportions are preferred. Its angled thermostatic valve set, finished in matching raw metal, allows straightforward temperature adjustment through a rotary knob, while the lockshield valve helps regulate water flow. With fixtures and fittings included, along with a flexible cleaning brush for upkeep, this set is designed for practical installation and everyday use.

Key features

• 7271 BTU heat output at 60
• Raw metal finish with lacquer coating
• 6-column vertical design
• 25mm steel tubes
• Angled thermostatic valve set with rotary knob control
• Temperature range from 6–28 degrees
• 15-year radiator guarantee
• 10-year valve guarantee

Specifications

• Material: 1.5mm carbon steel
• Valve material: Powder-coated brass
• Weight: 31.3kg
• BTU rating @ 50: 5791
• Watt rating @ 50: 1697
• Watt rating @ 60: 2131
• Max working temperature: 95C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 11.3m²
• Heating surface area: 3.41m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Valve style: Angled
• Valve type: Thermostatic
• Maximum valve pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

Sizing

• Radiator: 1800mm H x 380mm W x 100mm D
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1724mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 3 Column Radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : MC392B33SH
