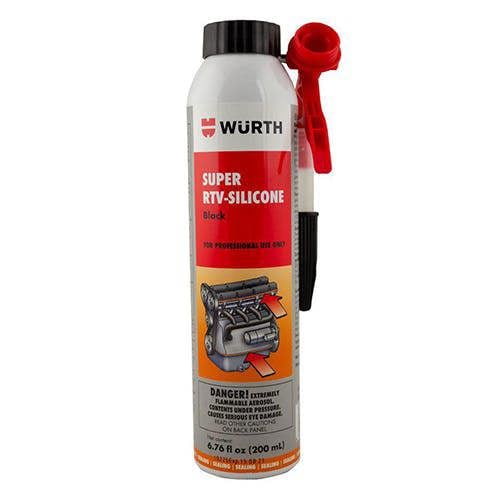

Wurth RTV Black Silicone Instant Gasket Maker High Temperature Sealant 200ml

For sealing applications in motor vehicles, Wurth Super RTV Silicone Black is a modified oxime silicone supplied in a 200 mL format. This high-grade adhesive and sealing compound is suited to components including water pumps, oil pumps, front covers, cam shaft bearing covers, thermostat bodies, oil pans, gear box covers, power axle covers, sun roofs and doors.

Its acid-free hardening system is non-corrosive and non-conductive, with very good resistance to chemicals including motor and gear oils, refrigerants and anti-freeze. The product is supplied in a compressed air spray can for controlled, even bead application. Best adhesion is achieved on clean, dry surfaces, with old sealing material removed fully before use.

Key features

• Modified oxime silicone adhesive and sealing compound
• Black finish
• 200 mL
• Application areas include water pumps, oil pumps, front covers, cam shaft bearing covers, thermostat bodies, oil pans, gear box covers, power axle covers, sun roofs and doors
• Very good resistance to chemicals, including motor and gear oils, refrigerants and anti-freeze
• Acid-free hardening system; non-corrosive and non-conductive
• Compressed air spray can for easy dosage and even bead application

Specifications

• Chemical basis: modified oxime silicone
• State: thixotrope past
• Skin forming time (ASTM-D-4678): 7 minutes
• Dry surface (ASTM-D-4678): approx. 10 minutes
• Curing speed: approx. 2mm/24hrs (73. 4oF/50% r. h. )
• Hardness Shore A (ASTM-D-676): 40
• Tensile strength (ASTM-D-412): approx. 2. 2 N/mm2
• Elongation at rupture (ASTM-D-412): 270 - 300%
• Thermal conductivity (ASTM-D-2214/70): 0. 002 Jcm-1s-1K-1
• Coefficient of thermal expansion (ASTM EB-31): 20 x 10-5 K-1
• Dielectric strength (ASTM-D-149): 15 kV/mm
• Dielectric constant @ 1MHz (ASTM-D-150): 2. 8
• Loss factor @ 1MHz (ASTM-D-150): 0. 002
• Volume resistance (ASTM-D-257): 1 x 1015 V/cm
• Temperature range: -76oF to +500oF (briefly up to +599oF)
• OE specifications: GM 1052751, 1052917
• OE specifications: Ford D6AZ-19526-B
• OE specifications: Chrysler 4318025
• OE specifications: Fiat 9. 55720/B

Care and maintenance

• Apply to clean, dry surfaces.
• Remove old sealing materials completely from the sealing surface before application.

Rackhams Reference : 53NTZ433CV
