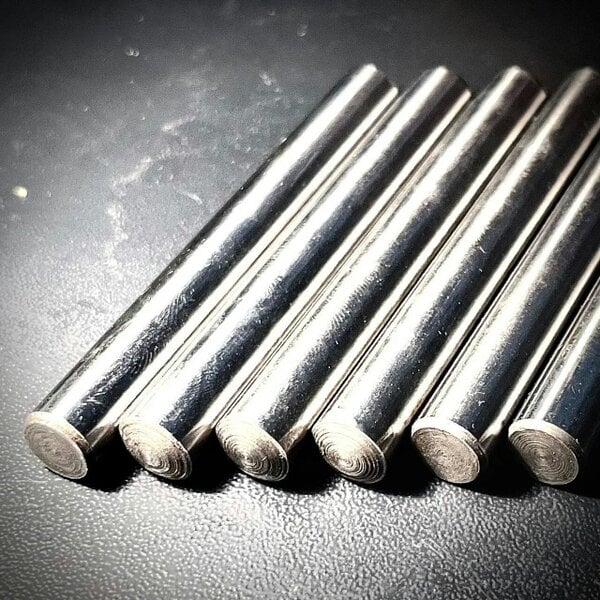

Fixaball Imperial Dowel Pins Steel Hardened/ Ground 1/4" 5/16" 3/8"

For accurate locating and alignment in drilled and reamed holes, these Fixaball imperial dowel pins are through hardened and ground steel parallel pins. They are supplied in self-colour and produced to tight tolerance limits for engineering and precision assembly work.

The range covers 1/4", 5/16" and 3/8" diameters, with multiple length options available in each size. Each pin is hardened to 58-62 HRC and conforms to ANSI B18. 8. 2, with DIN 6325 and ISO 8734B also stated for the listed sizes.

Available options

• 1/4" diameter lengths: 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 3/4", 2", 2 1/4", 2 1/2", 3"
• 5/16" diameter lengths: 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 3/4", 2", 2 1/4", 2 1/2", 3"
• 3/8" diameter lengths: 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 3/4", 2", 2 1/4", 2 1/2", 3", 3 1/2", 4"

Key features

• Imperial hardened and ground steel dowel pins
• Self-colour finish
• Diameters available: 1/4", 5/16", 3/8"
• Hardness: 58-62 HRC
• Standards: ANSI B18. 8. 2, DIN 6325, ISO 8734B

Sizing

• 1/4" x 3/8"
• 1/4" x 1/2"
• 1/4" x 5/8"
• 1/4" x 3/4"
• 1/4" x 7/8"
• 1/4" x 1"
• 1/4" x 1 1/4"
• 1/4" x 1 1/2"
• 1/4" x 1 3/4"
• 1/4" x 2"
• 1/4" x 2 1/4"
• 1/4" x 2 1/2"
• 1/4" x 3"
• 5/16" x 1/2"
• 5/16" x 5/8"
• 5/16" x 3/4"
• 5/16" x 7/8"
• 5/16" x 1"
• 5/16" x 1 1/4"
• 5/16" x 1 1/2"
• 5/16" x 1 3/4"
• 5/16" x 2"
• 5/16" x 2 1/4"
• 5/16" x 2 1/2"
• 5/16" x 3"
• 3/8" x 1/2"
• 3/8" x 5/8"
• 3/8" x 3/4"
• 3/8" x 7/8"
• 3/8" x 1"
• 3/8" x 1 1/4"
• 3/8" x 1 1/2"
• 3/8" x 1 3/4"
• 3/8" x 2"
• 3/8" x 2 1/4"
• 3/8" x 2 1/2"
• 3/8" x 3"
• 3/8" x 3 1/2"
• 3/8" x 4"

Rackhams Reference : IG43XP5MXR
