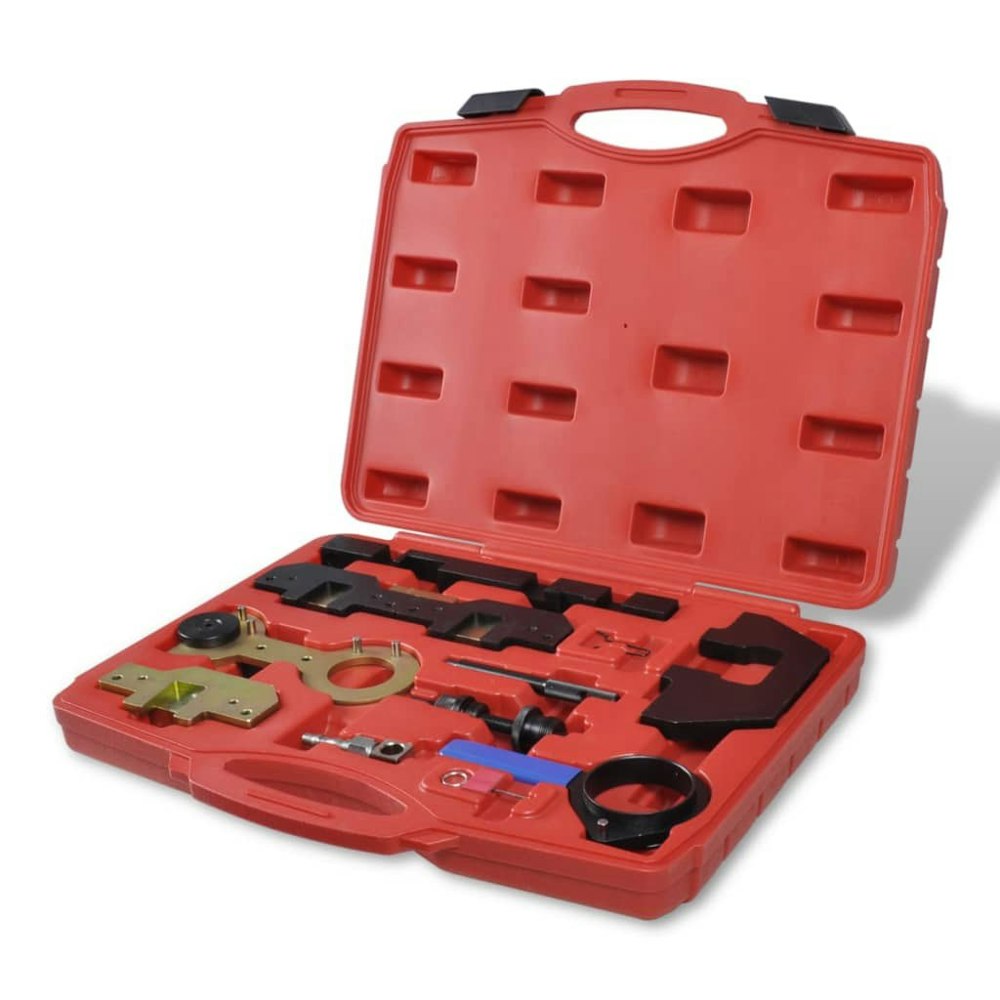

Berkfield 11 Piece Timing Tool Set for BMW M42/44/50/52/54/56

For BMW M40, M42, M43, M44, M50, M52, M54 and M56 engines, the Berkfield timing tool set brings together 11 workshop tools for camshaft timing work and related engine service tasks. It supports locking the camshaft when checking or adjusting camshaft timing, replacing the inlet camshaft, and replacing the timing chain. It is also suitable for timing belt changes on M40 engines and for installation and removal of the camshaft.

Built for daily workshop use, this industrial grade set is supplied in a blow moulded case to keep the tools organised for storage and transport. The kit includes a range of timing and locking tools matched to OEM reference applications, covering crankshaft locking, cam locks, timing chain tensioning, chain sprocket rotation, compressed air connection, chain tensioner stake out tools and double Vanos fixation.

Key features

• 11-piece set supplied in a blow moulded case
• Industrial grade construction for daily workshop use
• Suitable for locking the camshaft when checking or adjusting camshaft timing
• Suitable for replacing the inlet camshaft or timing chain
• Suitable for timing belt change at M40 engines
• For engine codes M40, M43, M42, M44, M50, M52, M54, M56

What's included

• Crankshaft locking tool to use as OEM 112300
• Cam lock to use as OEM 113190
• Cam lock to use as OEM 113240
• Timing chain tensioning tool to use as OEM 114220
• Chain sprocket rotator to use as OEM 115490
• Compressed air connection to use as OEM 113450
• Chain tensioner stake out set to use as OEM 113290
• Stake out clamp to use as OEM 113291
• Locking pin to use as OEM 113292
• Double Vanos fixation to use as OEM 116 150

Sizing

46 x 38 x 10,5 cm

Vehicle compatibility

• BMW 3, 5, 7, X3, X5, Z3, Z4
• Type Series E30-31-32-34-36-38-42-46-53-60-61-65-66-83-85
• E36 316i Year 1993-1999
• E46 316i Year 1999-2004
• Year 1994-2001 316i Compact, M43
• E36 318i Year 1993-1999 M43
• E46 318i Year 1998-2004 M43
• E30 318iS 16V, Year 1989 to 1991 M42
• E36 318iS Coupe Year 1992-1998
• Year 1994-1998 318ti Compact, M42
• 318iS Coupe Year 1996-1999
• Year 1996-2001 318ti Compact, M44
• 320i Bj 1991 to 1997
• 320i Year 1991-1999, single vanos M52
• E36 and E46 320i Year 1998-2006, Twin Vanos
• 323i Compact Year 1995-2001 Single Vanos
• E46 323i Year 1998-2001 Twin Vanos M52
• E36 325i Year 1991-1997, 1991-1997 325i Year, Single Vanos
• E46 325i Compact Year 2000-2006 Twin Vanos
• E38 328i Year 1995-1999 Single Vanos
• E46 328i Year 1998-2001 Twin Vanos
• 330i Year 2000-2006 Twin Vanos
• E34 518i Year 1994-1996, M43
• 520i Year 1989-1996
• E43 520i Year 1989-1996, Single Vanos
• E39 520i Year 1995-1999 Single Vanos
• 520i Year 1998-2003 Twin Vanos
• E60/E61 520i Year 2003-2005 Twin Vanos
• E39 523i Year 1995-1999 Single Vanos
• 523i Year 1998-2001 Twin Vanos
• E34 525i Year 1989-1996, 1989-1996 525i Year, Single Vanos
• E39 525i Year 2000-2003 Twin Vanos
• E60/E61 525i Year 2003-2005 Twin Vanos
• E39 528i Year 1996-2000 Single Vanos
• 528i Year 1998-2001 Twin Vanos M52
• 530i Year 2000-2003 Twin Vanos
• E60/61 530i Year 2003-2005 Twin Vanos
• E38 728i Year 1995-1998, Single Vanos
• 728i Year 1998-2002 Twin Vanos
• E65/E66 730i Year 2002-2005 Twin Vanos
• E83 X3 2. 5 l Year 2003-2006 Twin Vanos
• X3 3. 0 l Year 2003-2006 Twin Vanos
• E53 X5 3. 0 l Year 1999-2005 Twin Vanos M54
• Z3 1. 8i Year 1996-1999
• Year 1999-2003 1. 9i, M43 and M44
• 2. 0i Year 1999-2003 Twin Vanos M52
• 2. 2i Year 2000-2003 Twin Vanos M52
• 2. 8i year 1997 -1999, Single vanos
• 2. 8i Year 2000-2003 Twin vanos
• 3. 0i Year 2000-2003 Twin vanos M54
• E85 Z4 2. 2 l Year 2003-2006 Twin Vanos
• 2. 5 l Year 2003-2006 Twin Vanos
• 3. 0 l Year 2003-2006 Twin Vanos

About this product

Who is it for

Suited to workshop users carrying out camshaft timing checks, timing chain replacement and related engine service work on compatible BMW models.

When and where to use it

Suitable for daily workshop use during camshaft installation and removal, timing adjustment and timing belt changes on M40 engines.
