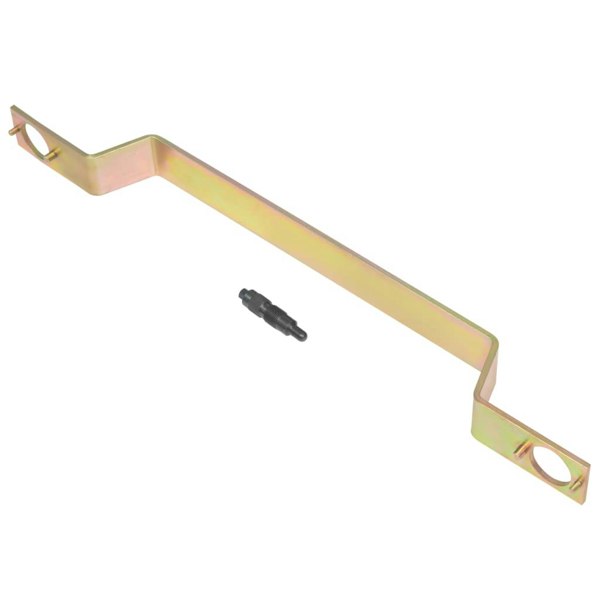

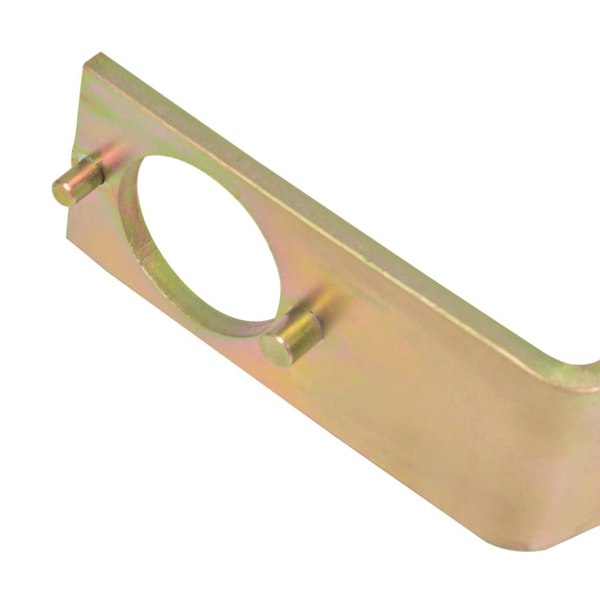

Berkfield Camshaft Alignment Tool for VW VAG Audi V6

The Berkfield camshaft alignment tool is made from carbon steel and is intended for holding both camshafts at TDC (top dead centre) during timing belt replacement. The included locking pin locks the crankshaft at TDC position while replacing the timing belt or removing the crankshaft bolt.

It is suitable for 2.4L, 2.7L Bi-Turbo and 2.8L engines with 5 valves per cylinder, covering selected Audi and VW models including Audi A4, A6, A8, S4 and VW Passat. This makes it a practical workshop tool for timing work on compatible V6 30V engines.

Key features

• Carbon steel construction
• Total length: 68 cm
• Pin length: 8 cm
• Suitable for 2.4L, 2.7L Bi-Turbo and 2.8L engines with 5 valves per cylinder

What's included

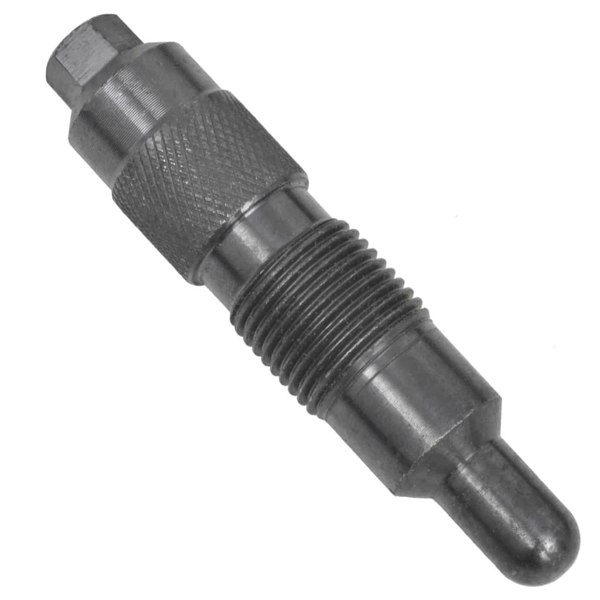

A locking pin

Sizing

• Total length: 68 cm
• Pin length: 8 cm

Vehicle compatibility

• Audi A4 2.4 and 2.8 (1997-2002)
• Audi A6 2.4 and 2.8 (1997-2002)
• Audi A8 2.8 (1997-2002)
• Audi S4 2.7 Biturbo (1997-2001)
• VW Passat 2.4 (1996-2002)
• VW Passat 2.8 (1996-2001)

Specifications

• 2.4 V6 30V engine codes: AGA, AJG, ALF, ALW, AML, AMM, APC, APS, APZ, ARJ, ARN, ASM, BDV
• 2.7 V6 30V engine codes: GTC, AJK, ARE, ASJ, AZA, AZB, AZR, BES
• 2.8 V6 30V engine codes: ACK, AEJ, AGE, AHA, ALG, AMX, APR, AQD, ATQ, ATX, BBG

About this product

Who is it for

Suited to users carrying out timing belt replacement on compatible Audi and VW V6 30V engines.

When and where to use it

Used during timing belt replacement or when removing the crankshaft bolt with the engine set at TDC.

Rackhams Reference : EP12F3UKAC
