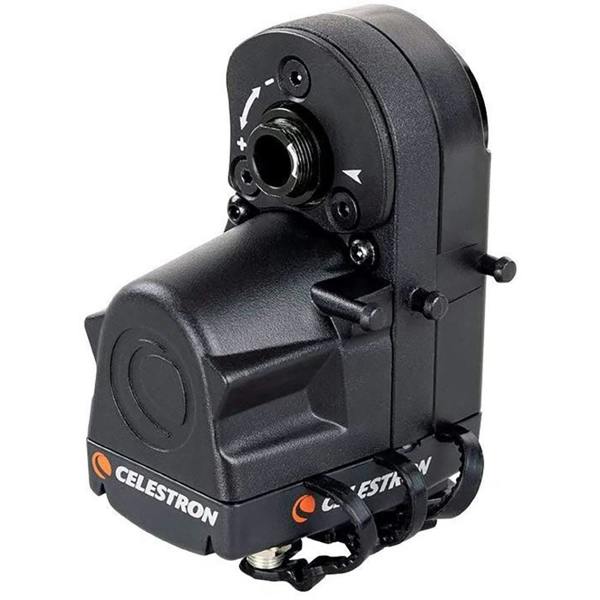

Celestron Focus Motor for SCT & Edge HD

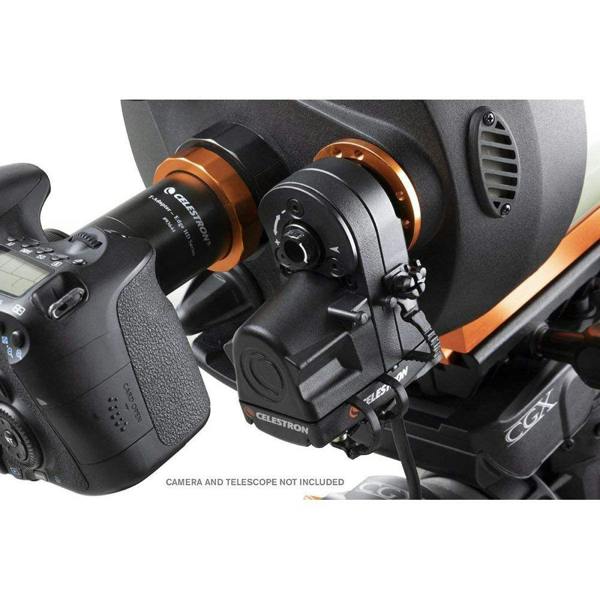

Remote, repeatable focusing brings a welcome level of precision to a telescope setup, and this Celestron Focus Motor is built for Schmidt-Cassegrain, EdgeHD and selected RASA optical tubes. It replaces manual adjustment at the focuser knob with electronic control through a compatible Celestron computerised mount hand controller or a computer, making it particularly useful for astroimaging and for observers who want accurate hands-free focus.

Compatibility covers all Celestron SCTs from 6" to 14" in aperture produced since 2006, excluding 5" SCT models, along with all EdgeHD optical tubes, the RASA 8", RASA 36cm and 7" Maksutov-Cassegrain. The motor supports multiple speed rates, automatic GoTo indexed focuser position and backlash compensation. Power can be supplied through a Celestron mount AUX port, through USB2 or USB3 at at least 900mA, or via an external 12V DC source. Tethered port covers protect the connections when not in use.

Key features

• Electronic focuser for Celestron SCT, EdgeHD, RASA and selected Maksutov-Cassegrain optical tubes
• Control through a compatible Celestron computerised mount hand controller or a computer
• Compatible with all Celestron SCTs from 6" to 14" produced since 2006, excluding 5" SCT models
• Also compatible with all EdgeHD optical tubes, RASA 8", RASA 36cm and 7" Mak-Cass
• Multiple speed rates, automatic GoTo indexed focuser position and backlash compensation
• Powered through a Celestron mount AUX port, USB2 or USB3, or an external 12V DC supply
• Tethered port covers protect unused ports
• Compatible with Celestron Focuser Utility software, Celestron PWI and ASCOM-based third-party software
• Model number: 94155-A-CGL

Specifications

Build

• Motor: DC servo motor
• Spur gears: Brass, 1:1 gear ratio, 35. 2mm diameter, 42 teeth

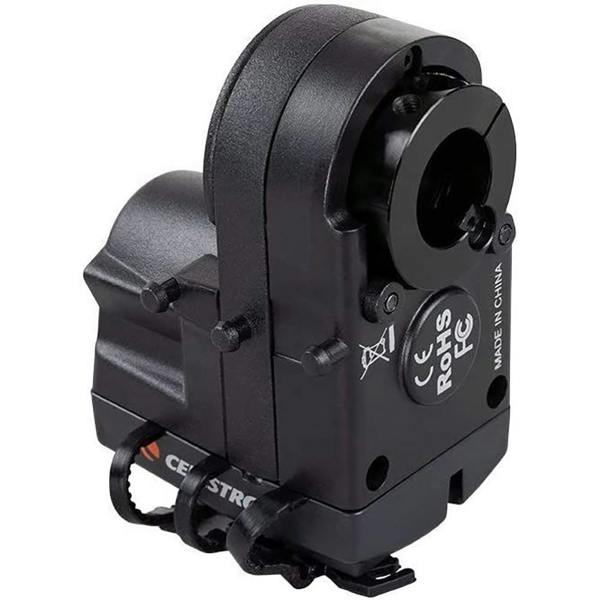

• Focuser shaft coupler: Aluminium clamping sleeve
• Microprocessor: NXP Kinetis series, Arm Coretex-M4 core
• Weight: 0. 57kg

Power and control

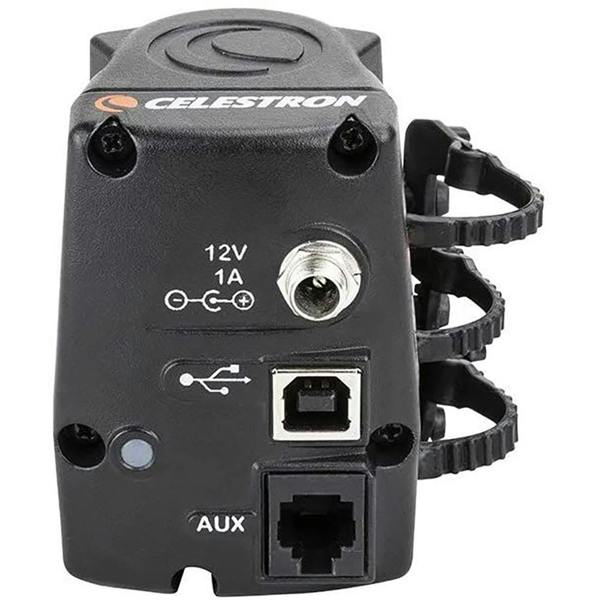

• AUX port power: Powered by Celestron computerized mount AUX port, connecting cable supplied
• USB port power: USB3 or USB2 providing at least 900mA
• DC jack power: 12V DC, 1A, 5. 5mm (0. 21") | 2. 1mm (0. 08") tip positive plug
• Speed rates: 8/sec, 32/sec, 128/sec
• Focuser steps per revolution: 1000 steps

Compatibility

• All SCTs produced after 2006 except 5" SCT
• All EdgeHD
• RASA 8"
• RASA 36cm
• 7" Mak-Cass

In the box

Connecting cable

Support & warranty

• 2-year warranty
