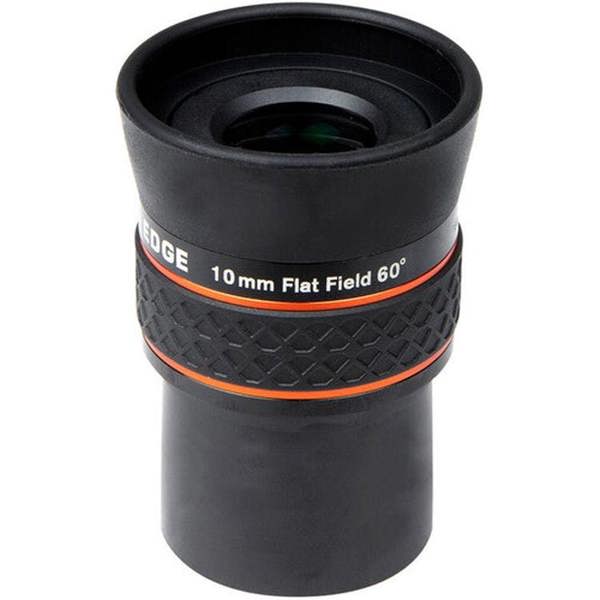

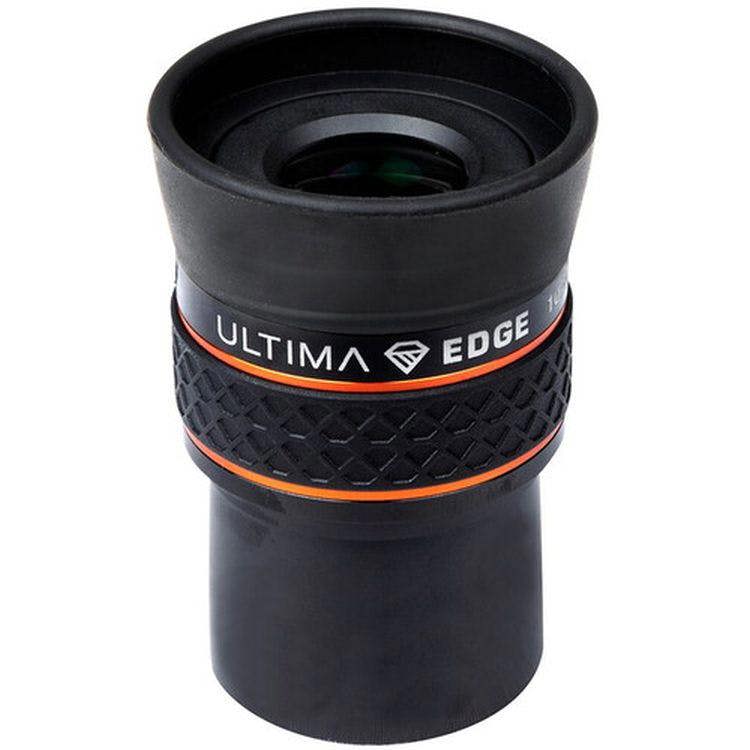

Celestron Ultima Edge 10mm Flat Field Eyepiece - 1.25 inch

For observers who want a flatter, more evenly corrected view across the field, the Celestron Ultima Edge 10mm Flat Field Eyepiece brings a compact 1. 25-inch format together with a 5-element optical design and a 60 apparent field of view. This telescope eyepiece is built for 1. 25-inch focusers and is compatible with 1. 25-inch star diagonals, filters and adapters via its internally threaded barrel.

Fully multi-coated optics support light transmission, while the 10mm focal length provides high-power viewing for closer study of smaller celestial targets. A 16mm eye relief, fold-down rubber eyeguard and moulded rubber grip ring make handling and viewing more comfortable, including for eyeglass wearers. The aluminium body has a black anodised finish, and the parfocal design allows quick changes within the Ultima Edge line without refocusing, with the stated exception of the Ultima Edge 24mm.

Key features

• 10mm flat-field eyepiece for 1. 25-inch focusers
• 5-element lens design in 4 groups
• Fully multi-coated optics
• 60 apparent field of view
• 16mm eye relief with fold-down rubber eyeguard
• Internally threaded 1. 25-inch barrel for standard 1. 25-inch filters and adapters
• Compatible with 1. 25-inch star diagonals and focusers
• Parfocal within the Ultima Edge line, except Ultima Edge 24mm
• 2-year warranty
• Model number: 93450-CGL

Specifications

Optical

• Focal length: 10mm
• Barrel size diameter: 1. 25-inch
• Apparent field of view: 60
• Field stop diameter: 14. 7mm
• Optical design: Proprietary
• Number of lens elements: 5
• Number of lens groups: 4
• Optical coatings: Fully multi-coated
• Eye relief: 16mm
• Parfocal: Yes
• Filter threads: 1. 25-inch (M28. 5 x 0. 6)

Build

• Eye guard: Yes - roll up
• Body material: Aluminium
• Weight: 80g

Sizing

58mm x 36. 5mm x 36. 5mm

Support & warranty

• 2-year warranty
