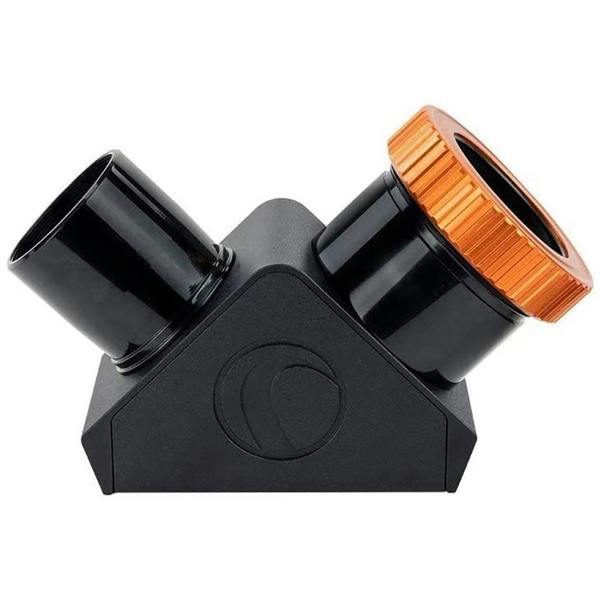

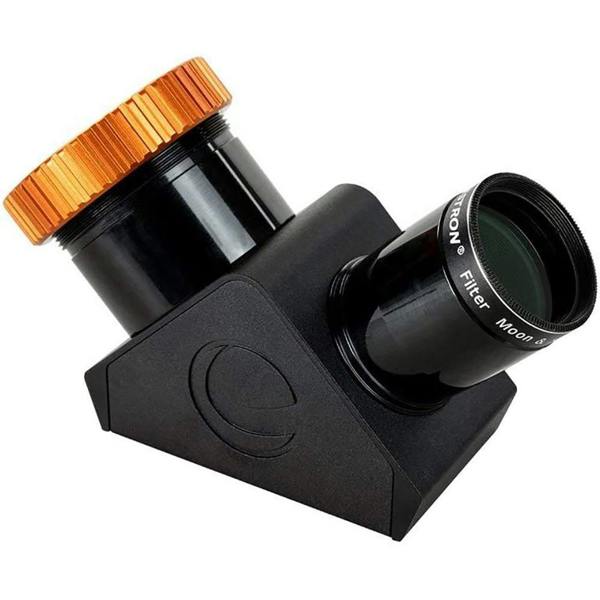

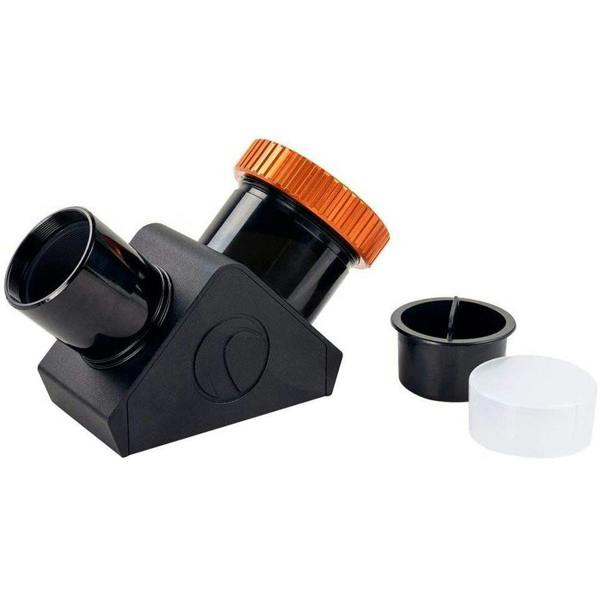

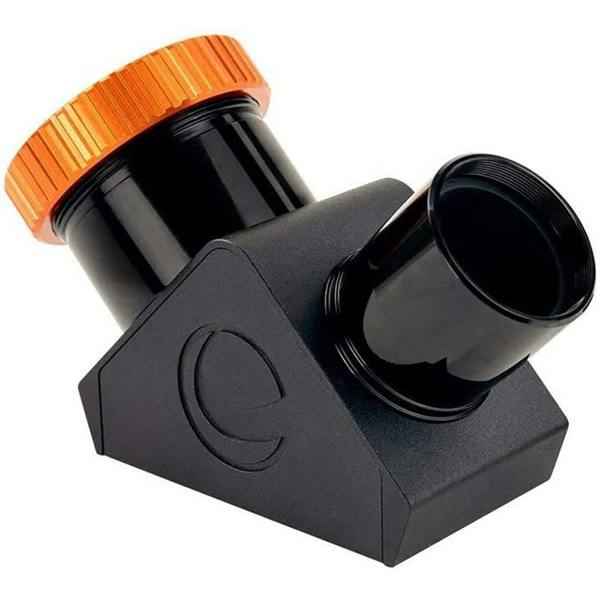

Celestron Dielectric Star Diagonal 1.25" with Twist-Lock

A well-made star diagonal can transform the viewing experience, and this Celestron 1. 25-inch dielectric star diagonal brings a premium optical and mechanical upgrade to compatible telescopes. It provides a 90 viewing angle for more comfortable observation with refractor and Cassegrain-type telescopes, while accepting standard 1. 25-inch eyepieces, Barlow lenses, threaded filters and other accessories with a 1. 25-inch barrel.

The mirror uses BK7 glass with 58 layers of dielectric coatings and an over 99% reflective surface to maximise light transmission to the eyepiece. A twist-lock eyepiece holder keeps the eyepiece centred for accurate opto-mechanical alignment, and the integrated 1. 25-inch barrel stop helps protect the mirror from long-barrel accessories. Machined black anodised aluminium construction, orange anodised twist-lock rings, and a glare-threaded barrel interior painted flat black complete a carefully finished accessory with diffraction-limited optics.

Key features

• 1. 25-inch mirror star diagonal for refractor and Cassegrain-type telescopes
• 90 viewing angle for more comfortable observation
• BK7 glass mirror with 58 layers of dielectric coatings
• Over 99% reflectivity
• Twist-lock 1. 25-inch eyepiece holder keeps the eyepiece centred
• Integrated 1. 25-inch barrel stop helps prevent long-barrel accessories from contacting the mirror
• Machined black anodised aluminium housing with glare-threaded, flat black barrel interior
• 1. 25-inch filter threads
• Model number: 93571-CGL

Specifications

• Diagonal size: 31. 75mm (1. 25-inch)
• Diagonal type: Mirror
• Glass material: BK7
• Coatings: Dielectric, 58 layers
• Reflectivity: Over 99%
• Optical quality: Diffraction limited
• Eyepiece holder: 1. 25-inch, twist-lock
• Compression ring: Yes, single ring
• Housing construction: Machined aluminium, black anodised
• Barrel interior: Glare threaded and painted flat black
• Threads for filters: Yes, 1. 25-inch
• Weight: 212. 6g

Sizing

114. 3mm x 50. 8mm x 88. 9mm

Support & warranty

• 2-year warranty
