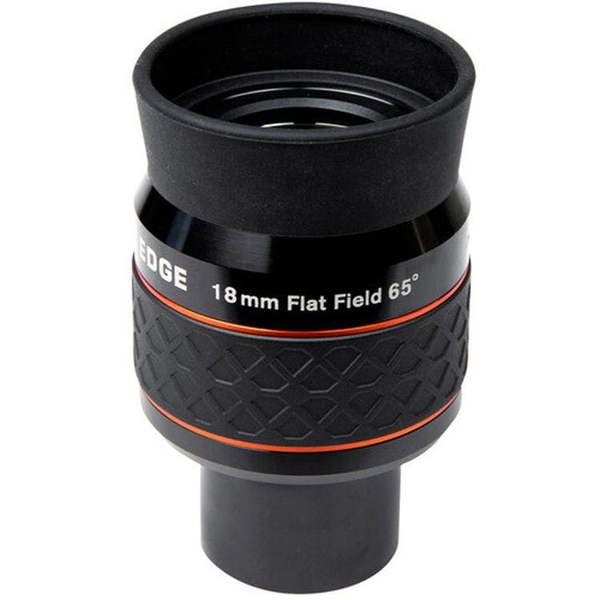

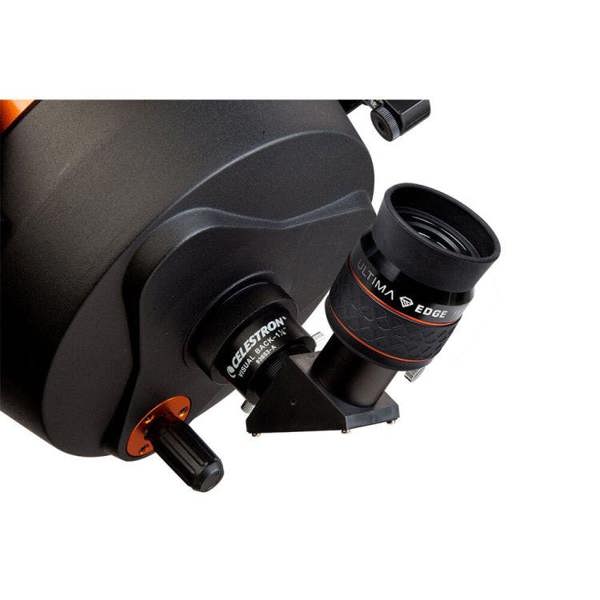

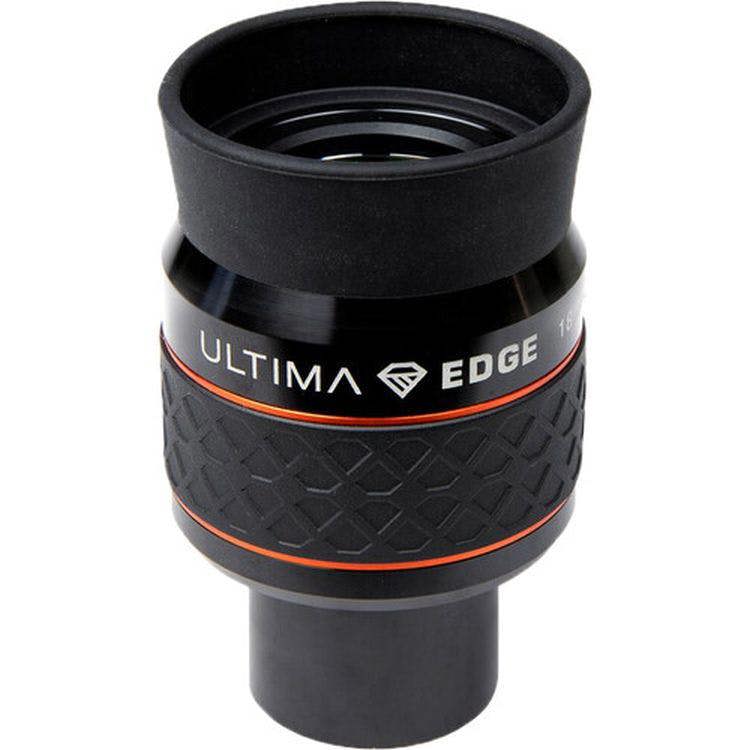

Celestron Ultima Edge 18mm Flat Field Eyepiece - 1.25 inch

For observers who want a wider, flatter view across the field, the Celestron Ultima Edge 18mm Flat Field Eyepiece brings together an 18mm focal length, a 1. 25-inch fitting and an 8-element optical design in a compact aluminium body. Fully multi-coated optics and a 65 apparent field of view give this eyepiece a strong visual presence at the telescope, while the flat-field construction keeps the image sharp from centre to edge.

Comfort and handling are equally well considered. A 20mm eye relief, fold-down rubber eyeguard and moulded rubber grip ring make it easy to use during longer observing sessions, including for eyeglass wearers. The 1. 25-inch mounting barrel is internally threaded for standard 1. 25-inch filters and adaptors, and compatibility with 1. 25-inch star diagonals and focusers makes it a straightforward addition to an existing telescope setup. Within the Ultima Edge range, this 18mm model is parfocal.

Key features

• 18mm flat-field eyepiece for 1. 25-inch focusers
• 8-element lens design in 5 groups
• Fully multi-coated optics
• 65 apparent field of view
• 20mm eye relief with fold-down rubber eyeguard
• Internally threaded 1. 25-inch barrel for standard 1. 25-inch filters and adaptors
• Moulded rubber grip ring for secure handling
• 2-year warranty
• Model number: 93452-CGL

Specifications

Optical

• Focal length: 18mm
• Barrel size diameter: 1. 25-inch
• Apparent field of view: 65
• Field stop diameter: 23. 4mm
• Optical design: Proprietary
• Number of lens elements: 8
• Number of lens groups: 5
• Optical coatings: Fully multi-coated
• Eye relief: 20mm
• Parfocal: Yes
• Filter threads: 1. 25-inch (M28. 5 x 0. 6)
• Eye guard: Yes - roll up

Build

• Body material: Aluminium
• Weight: 0. 21kg

Sizing

81mm x 51mm x 51mm

Support & warranty

• 2-year warranty

Rackhams Reference : JP4AK1AU45
