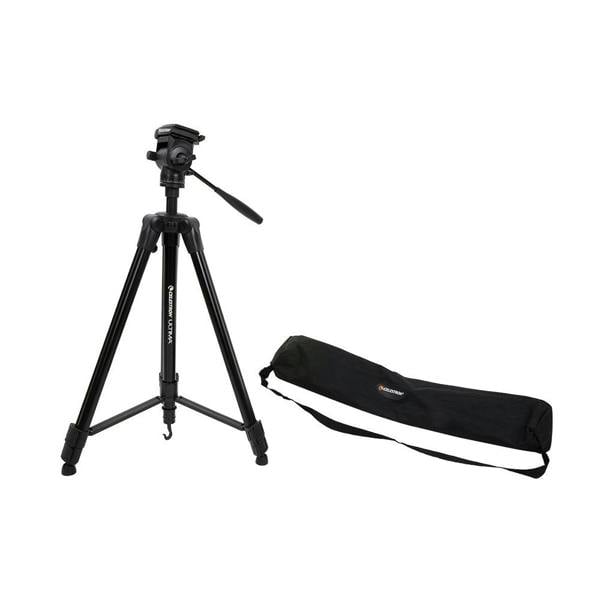

Celestron Ultima Pan Tilt Head Tripod

Built for steady viewing without unnecessary bulk, the Celestron Ultima Pan Tilt Head Tripod offers a practical aluminium support for spotting scopes, binoculars and cameras. Its three-section legs, adjustable centre column and pan-and-tilt head give it the flexibility to adapt to changing ground conditions and viewing positions, whether scanning a distant landscape or setting up for longer observation sessions.

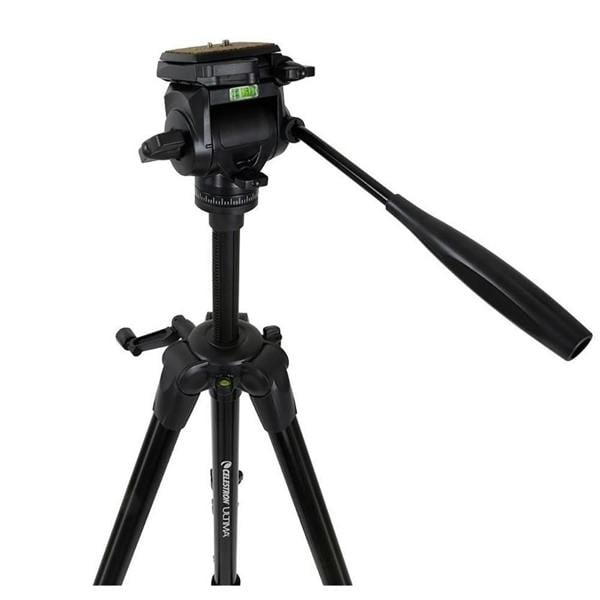

Smooth directional control comes from the panning handle and tension knob, while the mounting platform tilts up to 90 and locks securely in place. A quick-release plate with a 1/4"-20 mounting bolt and adjacent locking pin allows fast attachment of compatible equipment, and the safety release mechanism prevents the plate from sliding fully out without pressing the release button. The tripod reaches a maximum height of 1720mm and includes a retractable balance hook at the base of the centre column for added stability when needed.

Key features

• Aluminium tripod with pan tilt head
• Three leg sections for flexible height and stance adjustment
• Adjustable centre column with screw lock and end knob
• Quick-release mounting plate with protective cork padding
• Mounting plate with 1/4"-20 mounting bolt and adjacent locking pin
• Platform tilts up to 90 with lock knob
• Retractable balance hook built into the centre column
• Supplied with a soft woven carry case and shoulder strap
• 2-year warranty
• Model number: 93612-CGL

Specifications

Build

• Body material: Aluminium
• Head material: Polymer / plastic
• Leg sections: 3
• Leg section lock style: Latch
• Adjustable position shoulder joints: No
• Centre column lock: Screw with end knob
• Maximum weight supportable: 8. 8 lbs (4 kg)
• Weight: 2. 12 kg

Mount

• Mounting plate: Removable with 1/4"-20 mounting bolt and adjacent locking pin; polymer with cork padding on mounting surface

Sizing

• Minimum length: 720mm (28. 3")
• Maximum length: 1720mm (67. 7")
• Centre column length: 680mm (26. 8")

In the box

• Carry case

Support & warranty

2-year warranty.

Rackhams Reference : KDNMBE36KV
