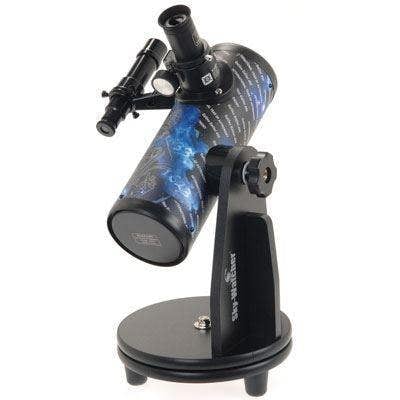

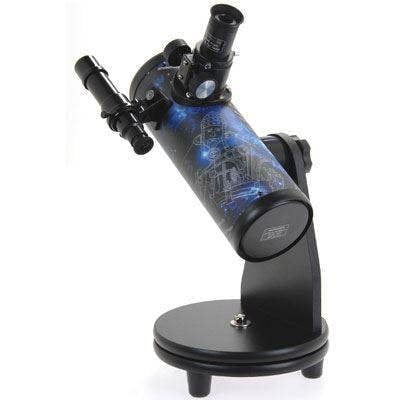

Sky Watcher Heritage 76 Telescope

Compact and distinctive, the Sky-Watcher Heritage-76 is a Newtonian reflector telescope with a 76mm aperture, 300mm focal length and f/4 focal ratio on a manual Dobsonian alt-azimuth mount. Its small footprint and fully assembled format make it an accessible choice for beginners and younger users, while the presentation-led finish gives it a decorative presence when not in use.

For practical observing, this model includes a 5x24 finderscope for locating objects in the night sky, along with two 1. 25-inch Super-MA eyepieces. These supplied eyepieces provide x12 and x30 magnification, and the focuser accepts standard 1. 25-inch accessories for use with additional compatible eyepieces or a Barlow lens sold separately. A rack and pinion focuser and single-arm secondary mirror support complete the optical setup, while the wooden mount keeps operation straightforward and portable.

Key features

• Newtonian reflector optical design
• 76mm aperture
• 300mm focal length
• f/4 focal ratio
• Manual Dobsonian alt-azimuth mount
• Supplied with 1. 25-inch 10mm and 25mm Super-MA eyepieces
• 5x24 finderscope
• Rack and pinion focuser
• 1-year warranty
• Model number: 10212

Specifications

Optics

• Optical design: Newtonian reflector
• Aperture: 76mm
• Primary mirror diameter: 76mm
• Focal length: 300mm
• Focal ratio: f/4
• Magnifications with supplied eyepieces: x12 and x30
• Eyepieces supplied: 10mm and 25mm Super-MA
• Accessory fitting: 1. 25-inch
• Finderscope: 5x24

Mount

• Mount type: Dobsonian alt-azimuth
• Focuser: Rack and pinion
• Secondary mirror support: Single-arm

Build

• Weight: approx. 1. 75kg

Sizing

Overall maximum height: 40cm

In the box

• 10mm Super-MA eyepiece
• 25mm Super-MA eyepiece
• 5x24 finderscope
• Wooden alt-azimuth mount

Support & warranty

1-year warranty.

Rackhams Reference : YW33WJXN65
