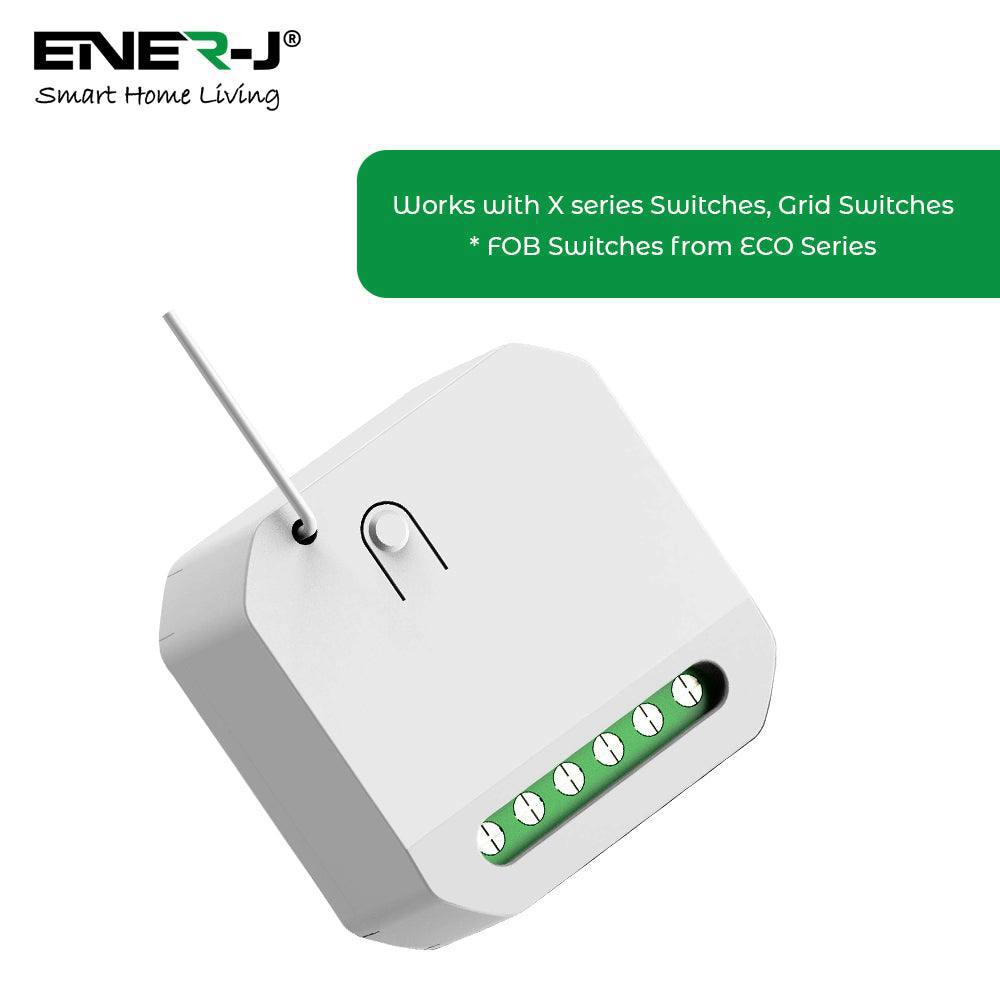

ENER-J Non Dimmable 5A RF MAGIC Receiver

From ENER-J, the Non Dimmable 5A RF Magic Receiver is a 500W receiver module designed to work with the ECO Range Series Wireless Kinetic Switches, bringing wireless control to compatible lighting setups. Wired between the light fitting and the power supply, it can also convert an existing traditional switch into a 2-way module, helping you control lights from more than one point without relying on the hard-wired switch being left in a particular position.

Using RF 433MHz communication, the receiver supports control at distances of up to 20m indoors and 80m outdoors, with range affected by the number and thickness of walls. Its ultra-thin design allows installation in tighter spaces and it can be installed outdoors when placed inside a waterproof box. The receiver is self-protected and fused, with a maximum load of 5A.

Key features

• Compatible with ECO Range Series Wireless Kinetic Switches
• Converts an existing traditional switch into a 2-way module
• Wired between the light fitting and the power supply
• RF 433MHz communication
• Range: up to 20m indoors and 80m outdoors (depending on walls)
• Non-dimmable
• Maximum load 5A, self-protected and fused

Specifications

• Power mode: Kinetic energy/self powered
• Work type: 86 push button type
• Voltage: AC 100-250V
• Colour: White
• Operating temperature: -20C to 50C
• WiFi: Not compatible
• Warranty: 2 years
• Software support end date: 10/08/2028

Sizing

44mm x 22mm x 22mm

What's included

• 500W RF Receiver
• User manual (English)

Please note

Wireless kinetic switches are sold separately.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
