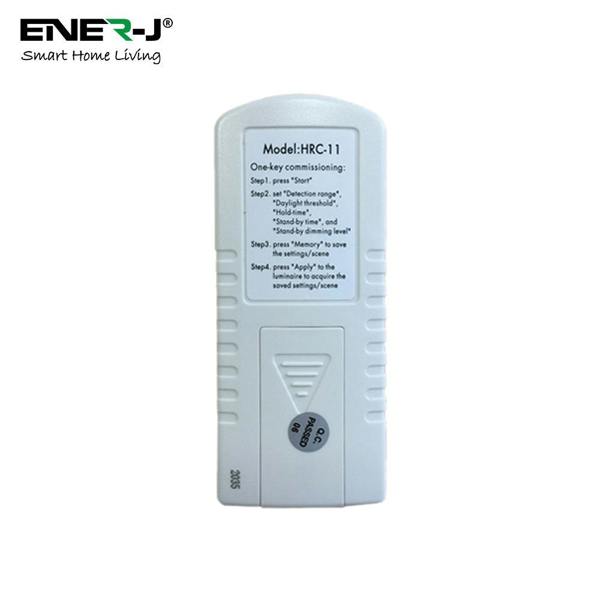

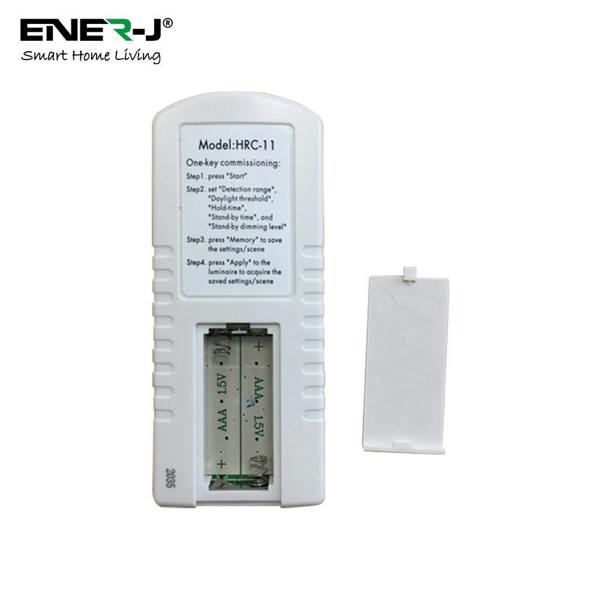

ENER-J RF Remote for Microwave Sensor SKU T343X

Designed for use with the ENER-J Microwave Sensor, the ENER-J RF Remote provides straightforward control over operating modes and light output. It allows you to switch between automatic and manual behaviours, reset settings back to default, and make quick adjustments to output and brightness when required.

Controls include permanent on/off selection, an auto mode that keeps existing settings when the light is switched on or off, and a semi-auto mode where the fixture is turned on manually via a push-switch and turns off automatically. A dedicated reset function returns the sensor to its default configuration, while shift mode enables selection of settings shown in red for a limited time.

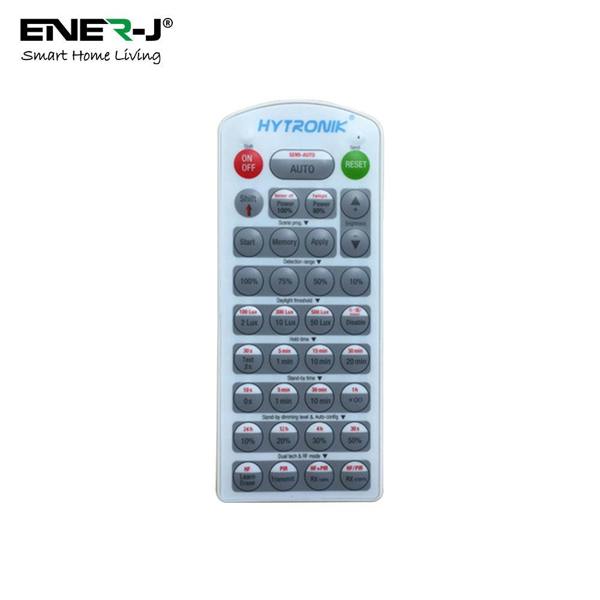

Key features

• Permanent on/off control via button (1), with buttons (2) or (4) returning to automatic operation
• After a power failure, the mode changes to auto mode
• Reset function (button (2)) restores default settings: detection range 100%, hold time 1 min, stand-by period 5 min, stand-by dimming level 20%, daylight sensor LUX disable
• Shift function (button (3)) with top-left LED flash indication; red settings remain valid for 20 seconds
• Auto mode (button (4)) initiates automatic operation while retaining previous settings
• Semi-auto mode (buttons (3) and (4)) for manual on (push-switch) and automatic off operation
• Power output control (button (5)) switches between 80% and 100%; “Sensor off” and “Twilight” functions are disabled
• Brightness adjustment (button (6)) from 10% to 100%
• SKU T343X
