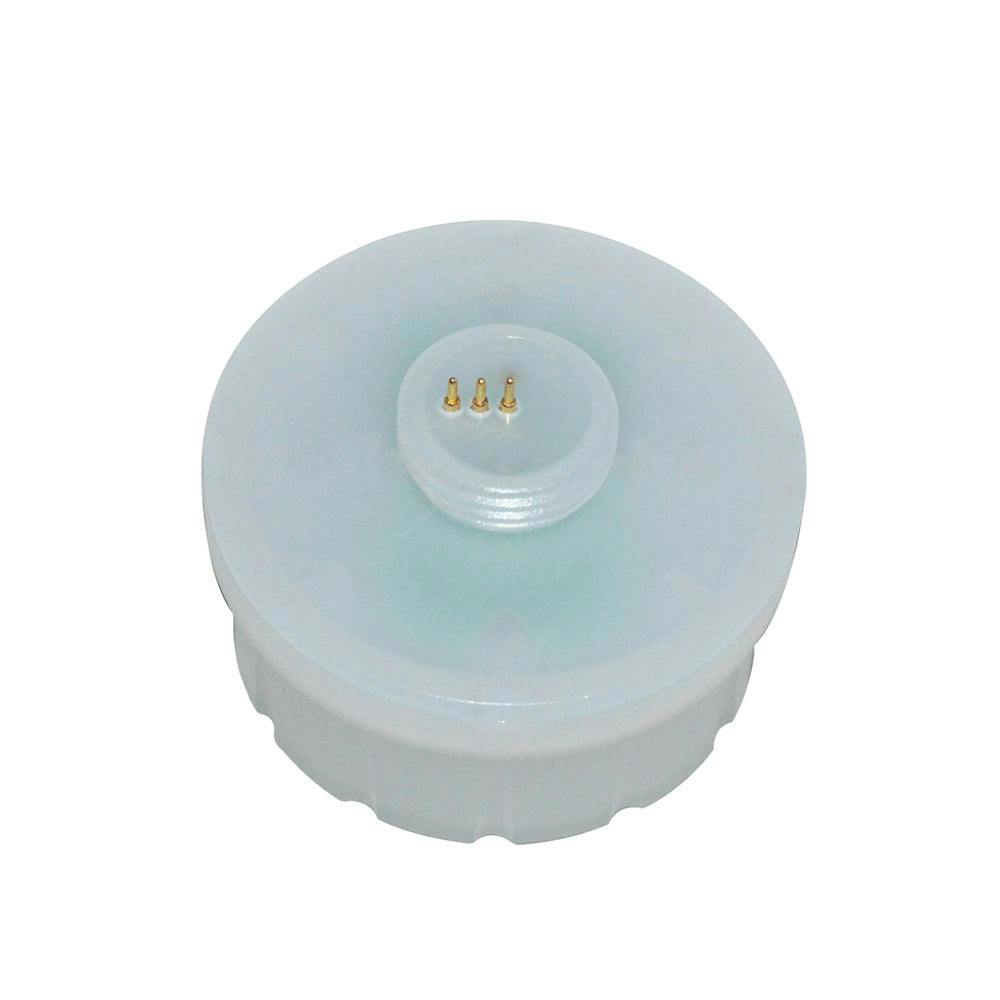

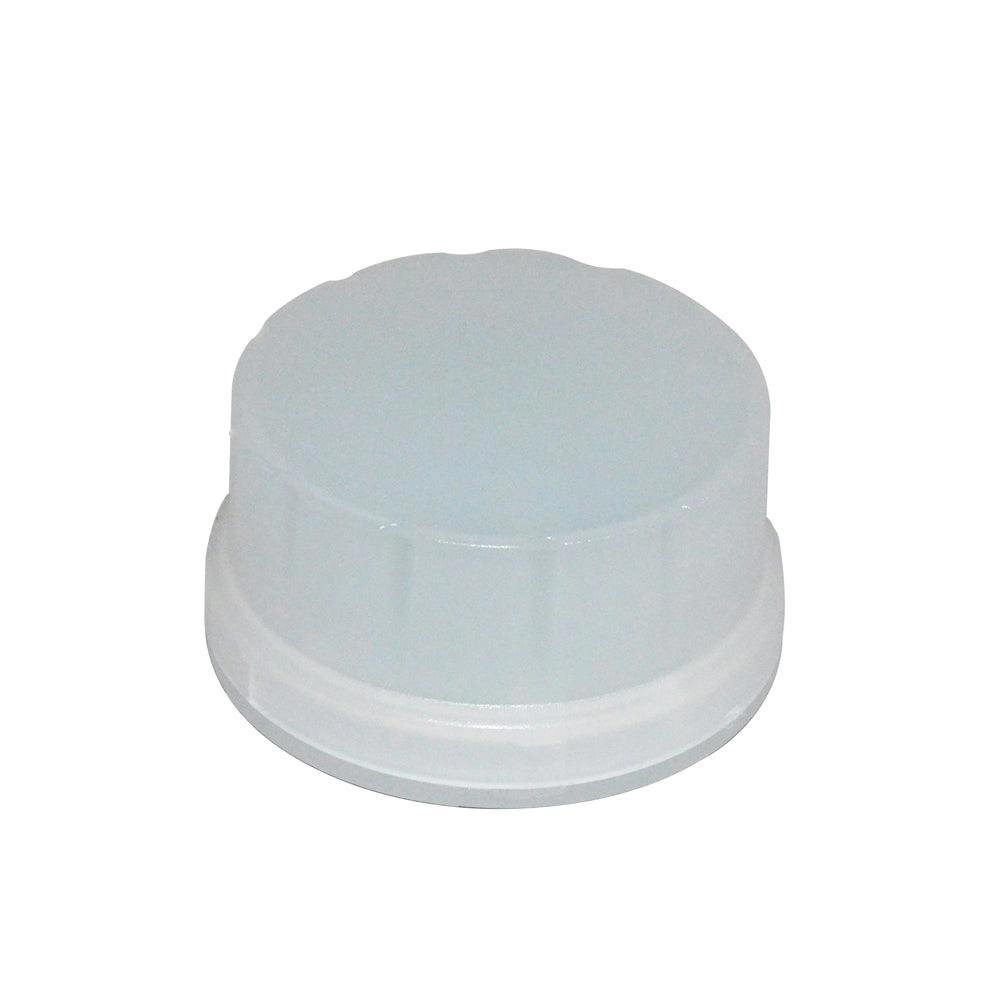

ENER-J Plug & Play Microwave Sensor for High Bay LightT380. Detection Radius 20%/50%/75%/100% (1-8 Meters), IP Rating: IP65

Designed for compatible high bay lights, the ENER-J Plug & Play Microwave Sensor adds microwave motion detection with straightforward installation. Simply remove the PC cover in the centre of the light and plug in the sensor, then tailor performance using the available controls for LUX level, sensor distance and timer settings.

For larger installations, a remote can be purchased separately to control multiple sensors from one remote, helping to keep settings consistent across a space.

Key features

• Plug & play installation by removing the PC cover in the centre of the light and connecting the sensor
• Adjustable settings for LUX, sensor distance and timer
• Detection radius options: 20%/50%/75%/100% (1-8m)
• IP65 rating
• Model number: T380

Specifications

• Power supply: 12V-24V DC, >50mA
• Dim control output: 0-10V, max. 25mA sinking current
• HF system: 5. 8GHz±75MHz
• Transmission power: <0. 2mW
• Mounting height: max 40ft. (12 meters)
• Time setting: 10s / 1min / 5min / 10min / 15min / 20min / 30min / 60min
• Light control: 24H / 10LUX / 30LUX / 50LUX
• Temperature: -40 ~ +158*F (-40~+70)

Please note

A remote can be purchased separately to control multiple sensors from one remote.

Rackhams Reference : W6B9LZP1ML
