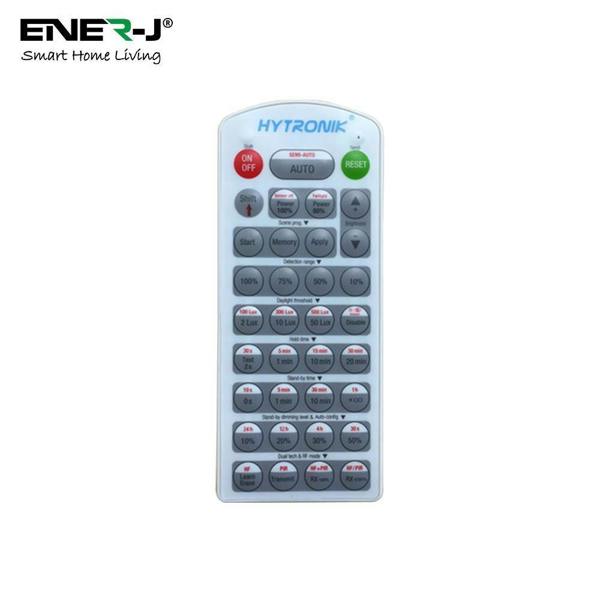

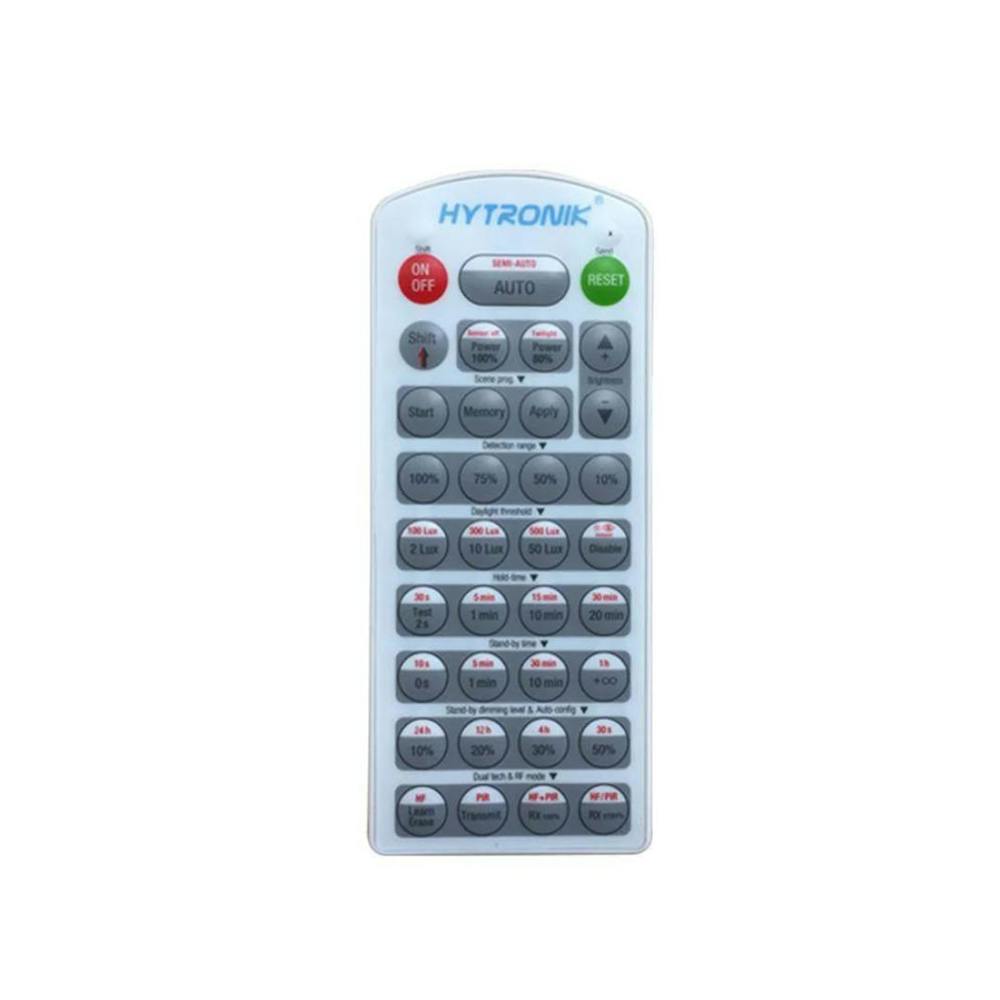

ENER-J RF REMOTE FOR MICROWAVE SENSOR SKU T343

Designed to work with a microwave sensor, the ENER-J RF Remote provides straightforward control over operating modes, output and brightness. It allows you to switch between permanent on/off and automatic operation, reset settings back to default, and make quick adjustments when needed. A shift function enables mode selection, with the top-left LED flashing to indicate selection and red settings remaining active for 20 seconds.

Automatic mode can be initiated at the touch of a button, keeping existing settings as they were before the light was switched on or off. Semi-auto mode is also available, where the fixture is turned on manually by push-switch and turns off automatically. For output control, the remote can shift light output between 80% and 100%, while brightness adjustment allows changes from 10% to 100%.

Key features

• Permanent on/off selection via button (1), with buttons (2) or (4) resuming automatic operation
• Automatic mode changes to auto after a power failure
• Reset function returns settings to defaults: detection range 100%, hold time 1 min, stand-by period 5 min, stand-by dimming level 20%, daylight sensor LUX disable
• Shift function indicated by flashing top-left LED; red settings valid for 20 seconds
• Auto mode initiates sensor operation while retaining previous settings
• Semi-auto mode initiated via buttons (3) and (4); manually on by push-switch and automatically off
• Power output toggles between 80% and 100% via button (5)
• Brightness adjustable between 10% and 100% via button (6)
• SKU T343
